Available in
Pathlite 7 WMN ^New -
1.499,00 €

Designed to get you riding in the great outdoors, the Pathlite 7 WMN – with its women’s-specific geometry – is a dependable hybrid bike for quick rides around town and long trips in the countryside. Tarmac, gravel or dirt, the Pathlite is up for it all!
Available in
Pathlite 6 WMN ^New -
1.099,00 €

Be it on pavement, hard-packed dirt or crumbling gravel, nothing is off limits to the Pathlite 6 WMN and its women’s-specific components. Rolling around on your local bike lanes or exploring off the beaten path, you’ll be well-equipped for kilometres of quick and comfortable riding.
Available in
Pathlite 5 WMN ^New -
899,00 €

With its women’s-specific geometry, the Pathlite 5 WMN is a great choice for riders who want a hybrid bike that’s just as capable on the road as it is on gravel. A low weight and reliable components guarantee you’ll stay comfortable and safe wherever you decide to ride.
Available in
Pathlite 5 ^New -
899,00 €

Want a dependable bike for spontaneous after-work rides and weekend overnighters? A bike that you can ride on roads, gravel and trails? A bike that shares your love of the great outdoors? Then the off-road-ready Pathlite 5 is right for you.
Available in
Pathlite AL SL 8.0 -
1.699,00 €

This bike is the flagship in our off-road fitness family – fast over all kinds of terrain, fitted with lightweight robust parts, and amazing value.
Available in
Pathlite AL 6.0 -
1.099,00 €

Get off road with the Pathlite 6.0! Fully-equipped with top-of-the-line mountain bike components and wide tyres, the Pathlite is the perfect tool to get you out of the city, off of the pavement and into nature.
Available in
Pathlite AL 4.0 -
799,00 €

Was 899,00 €

You save 100,00 €

You want a reliable bike for spontaneous after-work rides and weekend overnighters? A bike that you can ride on roads, gravel and trails? A bike that shares your love of the great outdoors? Then the Pathlite 4.0 is the ideal off-road bike for you.

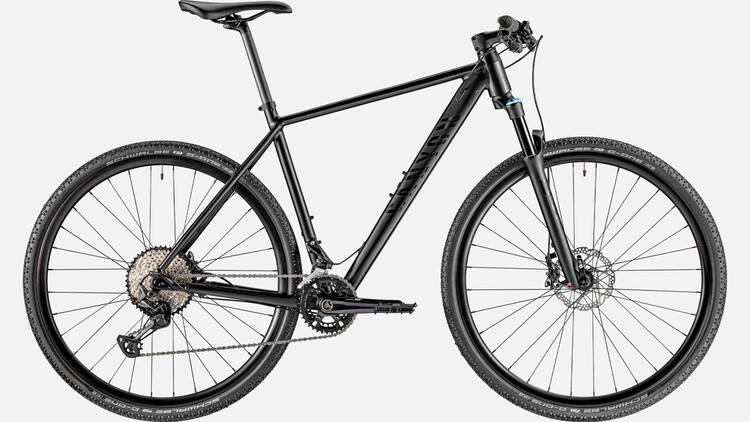

Pathlite AL SL 8.0

Name: Pathlite AL SL 8.0
Brand: Canyon
Price: 1699.00 EUR
Availability: InStock
Rating: 5 (11 reviews)

From 26,45 €/mo. or 1.699,00 €

11 reviews

Find your size:

Content is loading

Select frame size:

S
Get notified
M
Get notified
L
Get notified
XL
Get notified
2XL
Get notified

1.699,00 €

or from 26,45 €/Mo.

Included:

Not included:

Shipping & Packaging

Material

Aluminium (AL)
Weight

11.70 kg
Front Fork Travel

75 mm

Pathlite AL SL 8.0 This bike is the flagship in our off-road fitness family – fast over all kinds of terrain, fitted with lightweight robust parts, and amazing value.

See components

See geometry & dimensions

Recommended gear

Pathlite AL SL 8.0 The Pathlite SL 8.0 features fast and grippy Schwalbe tyres and a full Shimano XT groupset so you can take your workout off-road with ease. Our proven one-piece CP0016 AL cockpit in conjunction with Suntour‘s impressive NRX-E 75 mm front air suspension deliver a smooth ride, whether cruising paved cycle paths or forest fire roads.

Average customer rating

4,6 out of 5

11 customers reviewed

The highlights of this component set

A full Shimano XT groupset includes M8100 shifting and hydraulic disc brakes for performance that lasts. Reliable Iridium wheels and Suntour NRX-E suspension round out this fitness package.

View all components

Rear Derailleur

Shimano XT M8120 SGS

When it comes to shifting performance you can count on, Shimano XT has been leading the pack for years. This 2x12 setup combines with a broad 10-45 cassette for a huge gear range so you can conquer the steeps and keep pace on the flats.

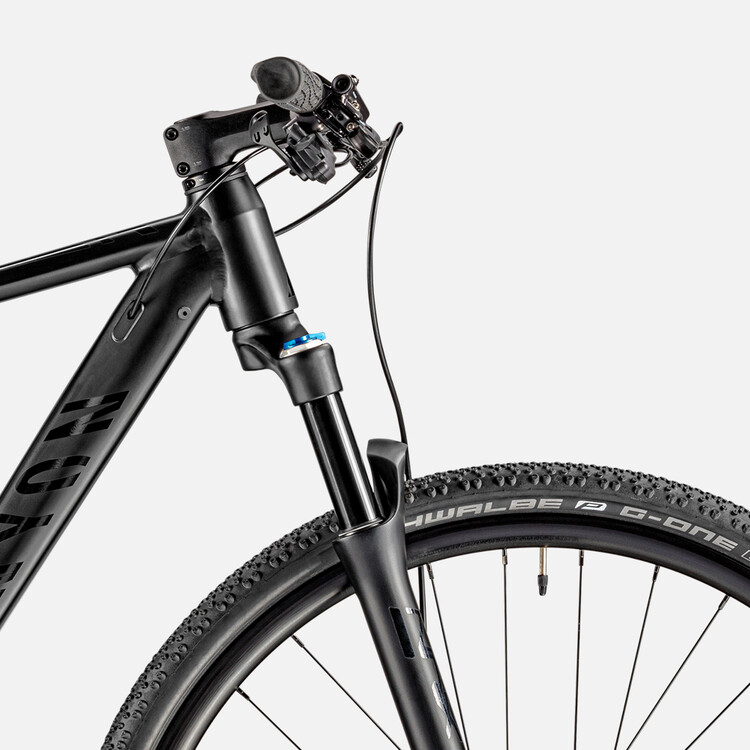

Suspension Fork

SR Suntour NRX-E Air

The lightweight Suntour NRX-E air suspension comes with Speed Lockout and 75 mm travel, 10 mm more than usual, with simple rebound adjustment. These blacked-out forks not only look the part, they enhance comfort wherever you ride.
Tyre

Schwalbe G-One Bite 40 mm

This high-quality wheelset setup is perfect for all-terrain use: stable Iridium rims in combination with reliable Shimano MT400 and MT510 hubs provide propulsion, while 40 mm wide Schwalbe G-One Bite tyres hold traction off-road and roll fast on it.
Saddle

Iridium Fitness

On a short after-work shake out or a long weekend ride, with this comfortable saddle, you’ll be ready for anything. The Iridium Fitness Saddle guarantees an enjoyable seated position, and the Canyon CP0016 AL one-piece cockpit was developed for optimal ergonomics.

All components
Frame
Frame

Canyon Pathlite AL SL

Suspension Fork

SR Suntour NRX-E Air

Travel: 75 mm

Axle Dimension: 15 x 100 mm
Drivetrain
Rear Derailleur

Shimano XT M8120 SGS

Front Derailleur

Shimano XT M8100

Shift Lever

Shimano XT M8100

Shift Lever

Shimano Deore XT M8100 12s

Clamp: I-Spec EV

Cassette

Shimano SLX M7100 10-45 12s

Crank

Shimano XT M8100 36/26

Bottom bracket

Shimano Pressfit BB-MT500

Chain

Shimano CN-M7100 12s
Brakes
Disc Brake

Shimano XT M8100

Disc Brake

Shimano XT M8100

Brake Rotor

Shimano RT54
Wheels
Wheel

Alexrims GX26P / Shimano MT400

Wheel

Alexrims GX26P / Shimano MT510 S12

Tyre

Schwalbe G-One Bite 40 mm

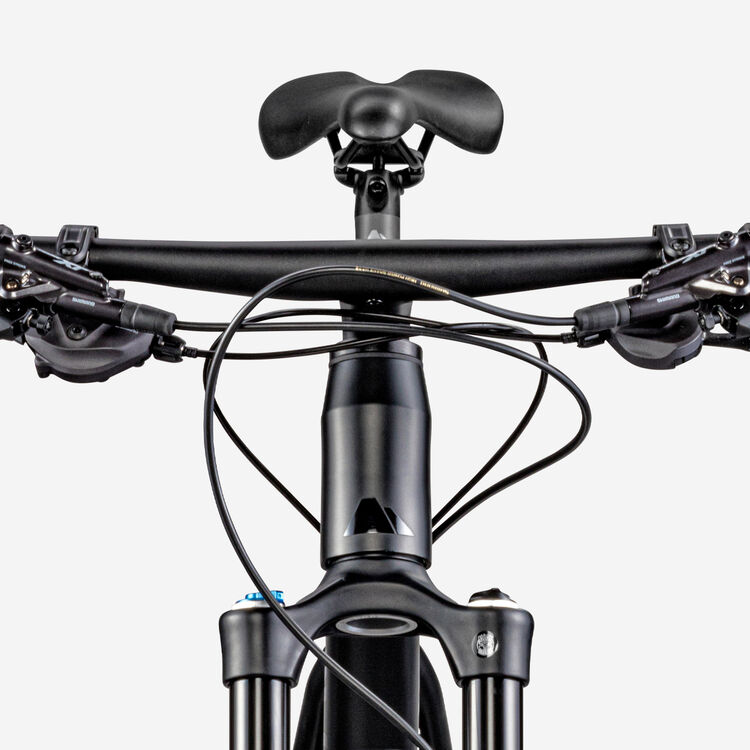

Cockpit
Cockpit

Canyon CP16 Cockpit

Material: Aluminium

Upsweep: 3°

Backsweep: 7°

Grips

VELO VLG-1777D2
Seat
Saddle

Iridium Fitness

Seatpost

Canyon SP0043 VCLS CF

Material: Carbon

Setback: 20 mm

Technology: VCLS
Accessories
Flat Pedals

Canyon VP-536

Manuals and Accessories

Canyon Smallbox

Content: Manual, Torque Wrench incl. Bit Set, Assembly Paste
Spare & Wear Parts
Derailleur hanger
Shop Derailleur Hanger GP0156-01

Geometry & dimensions

Detailed geometry table
		XS	S	M	L	XL	2XL
	Body Height	< 168 cm	168 - 178 cm	178 - 184 cm	184 - 190 cm	190 - 196 cm	> 196 cm
a	Seat Height	651 - 751 mm	681 - 781 mm	711 - 811 mm	741 - 841 mm	771 - 871 mm	801 - 901 mm
b	Seat Tube Length	460 mm	490 mm	520 mm	550 mm	580 mm	610 mm
c	Top Tube Length	562 mm	582 mm	590 mm	607 mm	616 mm	640 mm
d	Head Tube Length	90 mm	90 mm	105 mm	125 mm	145 mm	170 mm
e	Head Tube Angle	70°	71°	71°	71°	71°	71°
f	Seat Tube Angle	73,25°	73,25°	73,25°	73,25°	73,25°	73,25°
g	Chainstay Length	420 mm	425 mm	425 mm	425 mm	425 mm	425 mm
h	Wheel Base	1.049 mm	1.056 mm	1.064 mm	1.082 mm	1.092 mm	1.117 mm
i	Stack	580 mm	602 mm	617 mm	636 mm	654 mm	678 mm
j	Reach	387 mm	400 mm	404 mm	415 mm	419 mm	436 mm
	Stand-over Height	778 mm	804 mm	826 mm	851 mm	875 mm	901 mm
	Bottom Bracket Offset	44 mm	62 mm	62 mm	62 mm	62 mm	62 mm
	Spacer	25,0 mm	25,0 mm	25,0 mm	25,0 mm	25,0 mm	25,0 mm
	Cockpit Dimensions	80-630	80-630	90-630	90-630	100-630	100-630
	Crank Length	170,0 mm	170,0 mm	175,0 mm	175,0 mm	175,0 mm	175,0 mm
	Chainring Size	36/26	36/26	36/26	36/26	36/26	36/26
	Seat Post Diameter	27,2 mm	27,2 mm	27,2 mm	27,2 mm	27,2 mm	27,2 mm
	Seat Post Length	350 mm	350 mm	350 mm	350 mm	350 mm	350 mm
	Maximum Seat Post Insertion Depth	207 mm	207 mm	207 mm	207 mm	207 mm	207 mm
	Seat Post Insertion Depth	107 mm	107 mm	107 mm	107 mm	107 mm	107 mm
	Wheel Size	27,5"	29"	29"	29"	29"	29"
	Disc Size	160 mm / 160 mm	160 mm / 160 mm	160 mm / 160 mm	160 mm / 160 mm	160 mm / 160 mm	160 mm / 160 mm
	Front Fork Travel	75 mm	75 mm	75 mm	75 mm	75 mm	75 mm

Bikes of category 2 are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use.

We’re in Control

Our business model gives us the advantage of knowing exactly where our products come from, how they are made and what they are capable of. Canyon products are exclusively available at Canyon.com, so you can trust the quality you are getting.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
