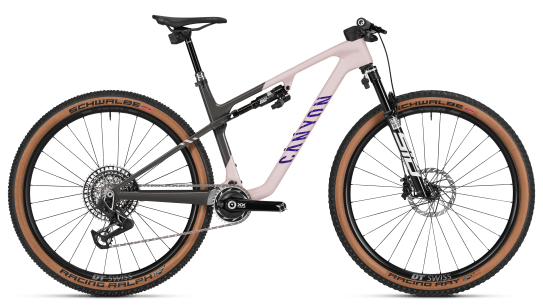

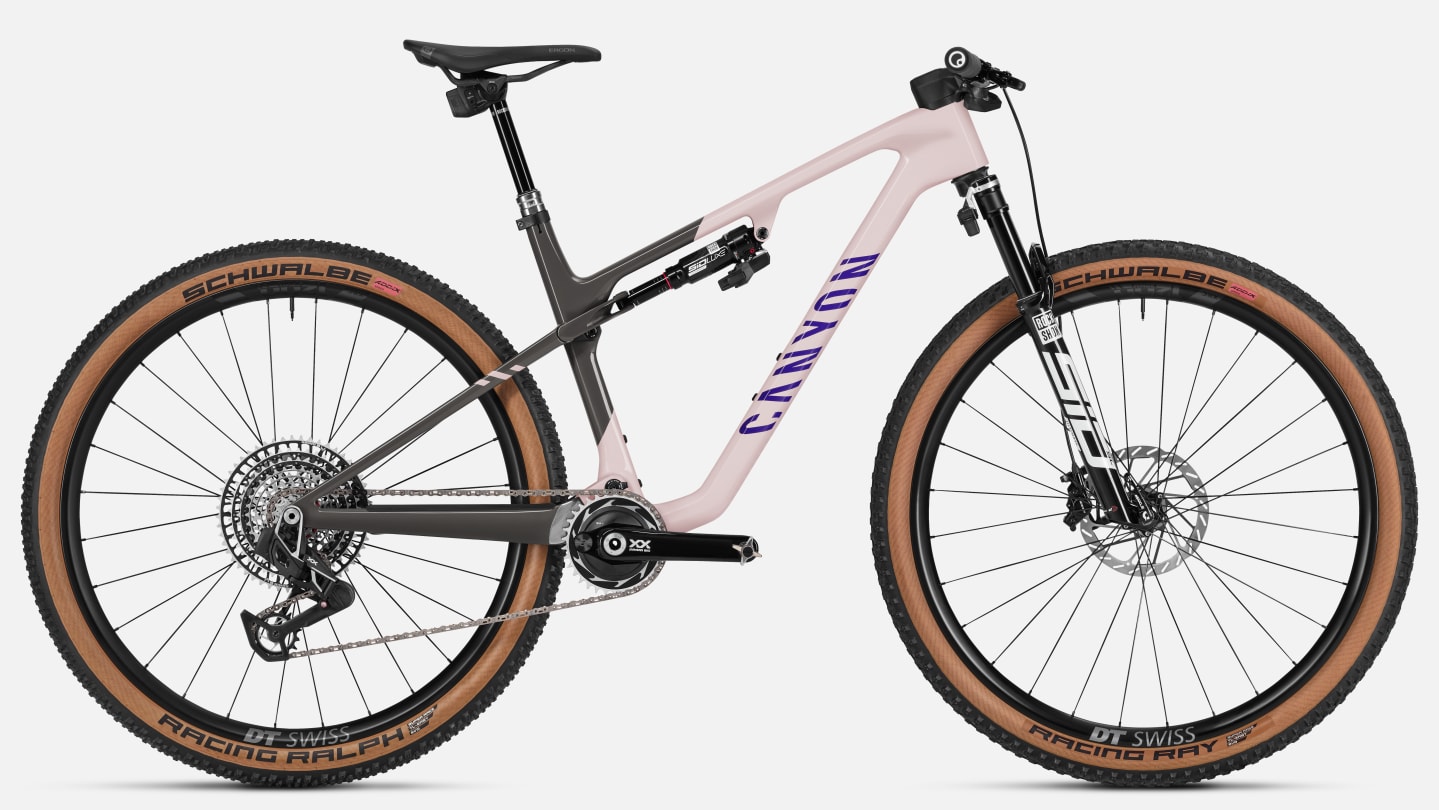

Lux World Cup CFR CLLCTV

Name: Lux World Cup CFR CLLCTV
Brand: Canyon
Price: 7999.00 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Combining a World Cup-proven frame with next-gen self-adjusting SRAM Flight Attendant suspension tech, this might just be the finest full-sus XC race bike on the planet.

Front Fork Travel: 110 mm
Weight: 10.94 kg

Customer reviews (1)

Colour: CLLCTV

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Lux World Cup CFR CLLCTV

Brand focus

Clean, sleek cables designed for racing

Fully integrated cables isn’t just an aesthetic choice but also designed to give your peace of mind when your sole focus is the next lap. Unlike semi integrated cables, usually routed over the bottom bracket, there’s no risk of debris build up or track snags ruining your race. In the long term, there’s no risk of smaller particles harming the integrity of your frame, keeping your race ready for longer.

Shaving grams, boosting performance

We’ve eliminated every last unnecessary gram so that you have the most efficient experience possible. Creating a carbon flex pivot, developing a lighter rear triangle, and upgrading the bearings means only the essential remains.

Key features

Ready to fly

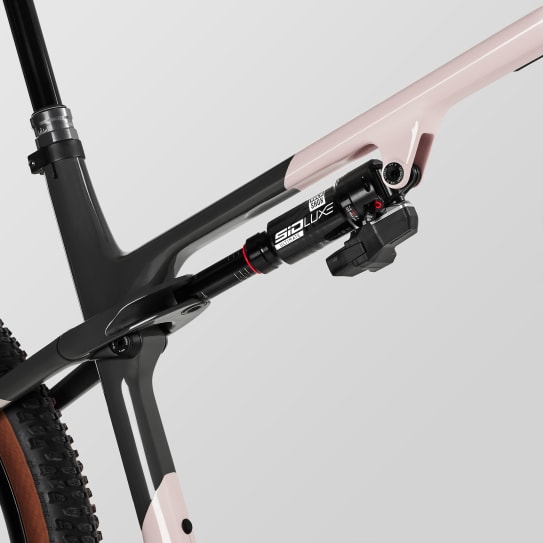

Flight Attendant is the difference between stepping onto the podium or going home empty handed. The automatic suspension system constantly analyses your riding with a system of wireless components to understand your riding style. It uses Adaptive Ride Dynamics to adapt your suspension from Open, Pedal, and Locked on the fly so that you're always in prime position to sprint, attack, and descend.

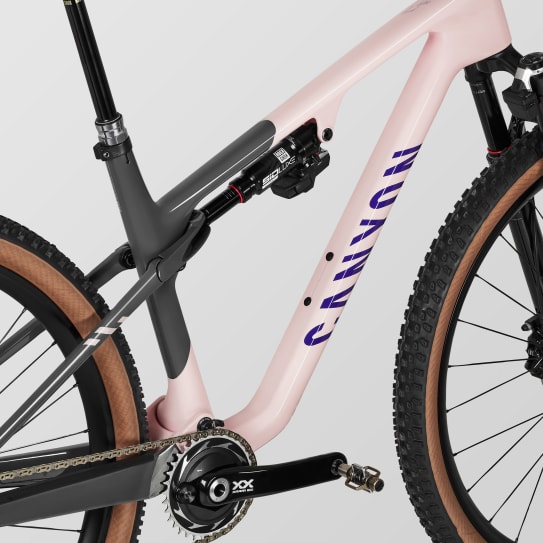

Probably the lightest full-suspension frame in the world

Sturdy, stiff, superlight. At an astonishing 1,535 grams, the Lux World Cup CFR frame might be the lightest full-suspension MTB frame on the planet today, shedding a huge 127 g over its ultralight predecessor. And we actually boosted the frame’s stiffness despite the massive weight loss, all while still meeting our punishing Category 3 testing standards.

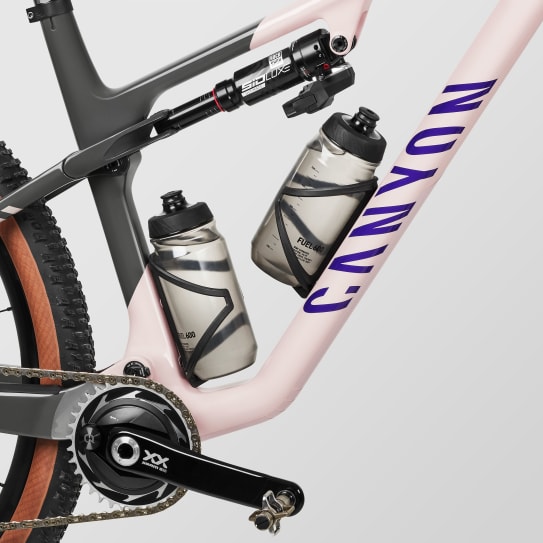

Stay hydrated

Leave your hydration pack at home and stay hydrated on the longest races. All Lux World Cup CFR models have space for mounting two large bottles – even on the smallest bikes in size XS. There’s ample room in every frame size, although we do recommend Canyon Sideloader cages for maximum ease of access.

Integrated frame protection

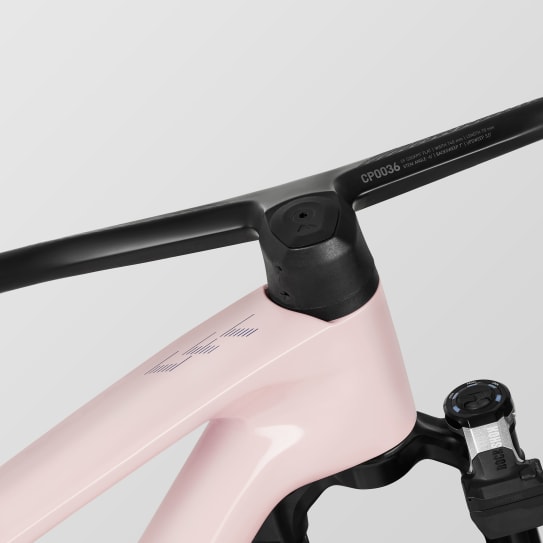

Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.

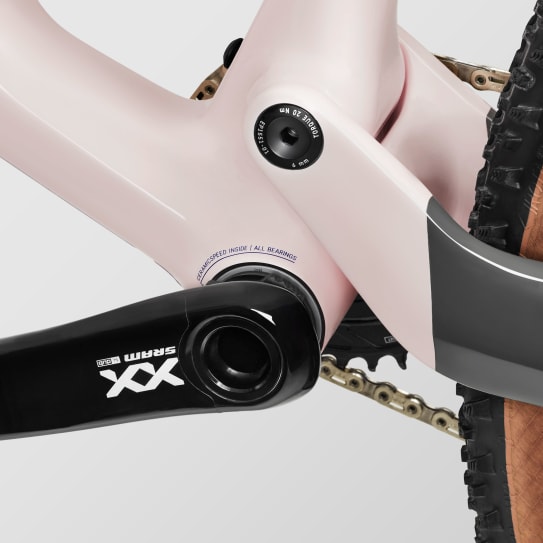

CeramicSpeed: the world’s best bearings

In the relentless pursuit of perfect performance, only the finest components we can source make it onto the Lux World Cup CFR. That’s why we spec premium, super long-life CeramicSpeed bearings all over – we use them on the frame, headset, and bottom bracket. They aren’t just lighter, they’re also super-smooth and are especially resistant to corrosion and rust.

Components

Content is loading

Frame

Frame
- Canyon Lux WC CFR
- One of the lightest full-suspension frames in the world.
- Axle dimension 12x148 mm
- Material Carbon (CFR)
Rear Shock
- RockShox SIDLuxe Ultimate Flight Attendant
- Weight 349 g
Suspension Fork
- RockShox SID SL Ultimate Flight Attendant
- Axle dimension 15x110 mm
- Stanchion Diameter 32 mm
- Travel 110 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 1,480 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM XX SL Eagle AXS Transmission
- Cage length long
- Weight 440 g
Shift Lever
- SRAM Eagle AXS Controller
- Weight 70 g
Cassette
- SRAM XS-1299 Eagle Transmission
- Number of sprockets 12
- Range 10-52
Crank
- SRAM XX SL Eagle DUB
- Number of chainrings 1
Bottom bracket
- Ceramicspeed Coated BB (SRAM)
- Bottom bracket standard PF 86,5
- Weight 77 g
Chain
- SRAM XX SL T-Type
Chain
- SRAM PowerLock

Brakes

Disc Brake
- SRAM Level Ultimate Stealth
Disc Brake
- SRAM Level Ultimate Stealth
- Number of pistons 2
Brake Rotor
- SRAM HS2 Rounded
- Size 160 mm
- Weight 180 g
Brake Rotor
- SRAM HS2 Rounded
- Size 180 mm
- Weight 212 g

Wheels

Front Wheel
- DT Swiss XRC1200
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 684 g
Rear Wheel
- DT Swiss XRC1200
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Rim material Carbon
- Weight 791 g
Tyre
- Schwalbe Racing Ray SR TLE
- Width 2.25"
- Weight 755 g
Tyre
- Schwalbe Racing Ralph SR TLE EVO 2.35"
- Width 2.35"
- Weight 732 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Cockpit
- Canyon CP0036
- Superlight carbon cockpit. With semi-integrated cable routing and high-grip surface in the bar centre.
- Material Carbon (CF)
- Weight 272 g
Grips
- Ergon GXR

Seat

Saddle
- Ergon SR10 Pro Carbon
- Gender Unisex
- Weight 195 g
Seatpost
- RockShox Reverb AXS
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 586 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	613 - 733	653 - 773	693 - 813	733 - 853	773 - 893
Seat Tube Length in mm (b)	375	415	455	495	535
Top Tube Length in mm (c)	564	581	602	625	648
Head Tube Length in mm (d)	90	90	95	110	125
Head Tube Angle (e)	68,5°	68,5°	68,5°	68,5°	68,5°
Seat Tube Angle (f)	75°	75°	75°	75°	75°
Chainstay Length in mm (g)	432	432	432	432	432
Wheel Base in mm (h)	1.100	1.120	1.142	1.167	1.193
Stack in mm (i)	577	577	582	596	610
Reach in mm (j)	410	430	450	470	490
Stand-over Height in mm (k)	777	777	780	784	793
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	70-740	70-740	70-740	70-740	70-740
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	125	125	125	125
Seat Post Length in mm	390	390	390	390	390
Maximum Seat Post Insertion Depth in mm	200	200	200	200	200
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	110	110	110	110	110
Rear Suspension Travel in mm	100	100	100	100	100
Fitting Length	210X50	210X50	210X50	210X50	210X50
