Speedmax CF 8 WMN Disc Di2
The Speedmax CF 8 WMN Disc Di2 pulls no punches as one of the quickest women’s-specific tri bikes on the market. The high-performance frameset comes fully-outfitted with reliable and wireless Shimano Ultegra Di2 shifting and world-class aero wheels at a truly competitive price.
-
-
Members only product. Log in here
Select frame size
Sold out
Smaller frame, smaller wheels: XS bikes have lighter 650b DT Swiss wheels with 50 mm rims. For consistent riding dynamics in all sizes.
Members only product.
Log in here
Sold out
Highlights Speedmax CF 8 WMN Disc Di2

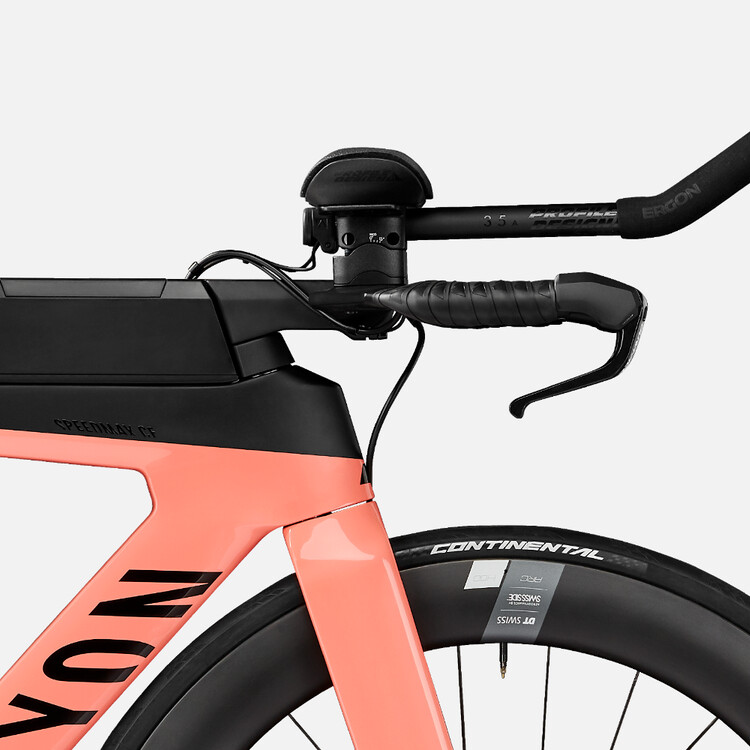

An aero, ergonomic bar
We developed the HB53 base bar for optimal comfort and performance. CFD optimised for maximum watt savings, and with Profile Design’s innovative spacer system, you get 70 mm of easy height adjustability.

Aerodynamic seatstays
Med sin vingliknande profil är inte bara sadelstagen på Speedmax snygga men även superaerodynamiska tack vare deras CFD-optimerade design.
Content is loading
Frame
-
Frame
- Canyon Speedmax CF DISC
- Aero frame shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Internal cable routing, 12x142 mm through axle, flat-mount disc standard. Weight: 1380 g
-
Fork
- Canyon FK0077 CF Disc
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 30 mm
- Material: Carbon (CF)
- Weight: 550 g
Drivetrain
-
Battery
- Shimano BT-DN110 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2 R8050 GS
- Cage length: short
- Weight: 242 g
-
Front Derailleur
- Shimano Ultegra Di2 R8050
- Weight: 132 g
-
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 19 g
-
Cassette
- Shimano Ultegra R8000 11-32 11s
- Number of sprockets: 11
- Range: 11-32 11S
-
Crank
- Shimano Ultegra R8000 4iiii Precision Powermeter
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180 TT
- Weight: 328 g
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180 TT
- Weight: 325 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 800 g
-
Rear Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Weight: 978 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Stem
- Canyon V21
- Exclusively designed for our Speedmax CF range.
- Angle: -17°
- Clamping diameter: 31.8 mm,
- Weight: 199 g
-
Stem
- ST CAYN E428-16 Front Plate V21 bk
-
Handlebar
- Canyon HB0053 Triathlon Basebar
- Aerodynamically optimsed triathlon handlebar with direct mount spacer system featuring the Aeria Ultimate Race Bracket by Profile Design.
- Type: Flat
- Basebar Rise: 0 mm
-
Aero Bar
- Profile Design 35A
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Mistica
- Weight: 235 g
-
Seatpost
- Canyon SP0048 Aero Seatpost
- Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant.
- Weight: 300 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Toolbag for Speedmax CF Disc
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 174 | 174 - 186 |
---|---|---|---|
Seat Height in mm
(a)
|
623 - 743 | 671 - 821 | 696 - 846 |
Seat Tube Length in mm
(b)
|
480 | 518 | 543 |
Top Tube Length in mm
(c)
|
454 | 489 | 511 |
Head Tube Length in mm
(d)
|
113 | 115 | 140 |
Head Tube Angle
(e)
|
72° | 73° | 73° |
Seat Tube Angle
(f)
|
80,5° | 80,5° | 80,5° |
Chainstay Length in mm
(g)
|
410 | 420 | 420 |
Wheel Base in mm
(h)
|
956 | 988 | 1.014 |
Stack in mm
(i)
|
482 | 519 | 544 |
Reach in mm
(j)
|
374 | 402 | 420 |
Bottom Bracket Offset in mm
(l)
|
52 | 72 | 72 |
Armpad Stack in mm
(m)
|
596 - 666 | 633 - 703 | 658 - 728 |
Armpad Reach in mm
(n)
|
352 - 463 | 377 - 488 | 399 - 510 |
Spacer in mm
|
25,0 | 25,0 | 25,0 |
---|---|---|---|
Stem Length in mm
|
70 | 80 | 80 |
Handlebar Width in mm
|
400 | 400 | 400 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
295 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
200 | 230 | 230 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
Wheel Size
|
27.5" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 |
Download PDF
Content is loading
Speedmax CF 8 WMN Disc Di2 support
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
