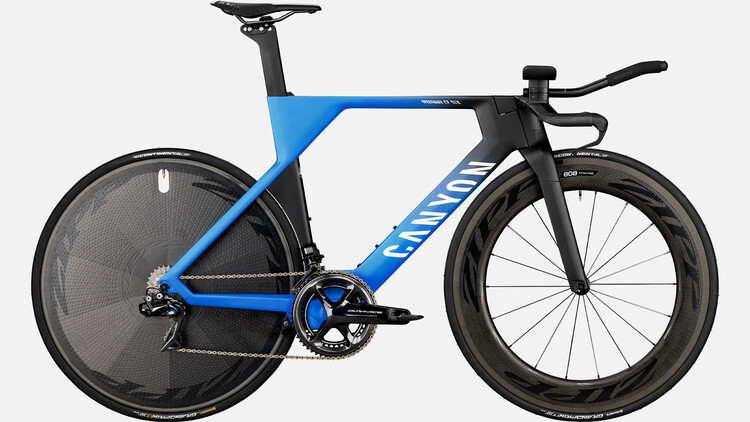

Speedmax CF SLX 9.0 TT

-21%

The Speedmax CF SLX has been designed to be the fastest time trial bike, with advanced aerodynamics and impressive ergonomics and control to help you set a new personal best. The Speedmax CF SLX 9.0 TT is the perfect choice for the Race of Truth.

Reviews (1)

Colour: half blue

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.

Members only product.

Sold out

Highlights Speedmax CF SLX 9.0 TT

Components

Content is loading

Frame

Frame
- Canyon Speedmax CF SLX
- Material: Carbon
- Axle Dimension: 9 x 130 mm
- Brake Mount: Integrated
Fork
- Canyon F32 CF
- Material: Carbon (CF)
- Weight: 362 g

Drivetrain

Battery
- Shimano BT-DN110 Di2 Battery
Rear Derailleur
- Shimano Dura-Ace Di2 R9150, 11-speed
- Cage length: short
- Weight: 10 g
Front Derailleur
- Shimano Dura-Ace Di2 R9150
- Weight: 114 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 TT 2s
- Weight: 250 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 TT 11s
- Weight: 2,000 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 19 g
Cassette
- Shimano Dura-Ace R9100 11-25 11s
- Number of sprockets: 11
Crank
- Shimano Dura-Ace R9100
- Number of chainrings: 2
Bottom bracket
- Shimano Pressfit BB92
- Bottom bracket standard: PF 86,5
- Weight: 55 g
Chain
- Shimano HG901 11-speed
- High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.

Brakes

Brake
- Canyon B11-01 TT Front
Brake
- Canyon B12-01 TT Rear

Wheels

Front Wheel
- Zipp 808 Firecrest
- Wheelsize: 28"
- Weight: 850 g
Rear Wheel
- Zipp Super-9 Carbon Clincher SH11
- Wheelsize: 28"
- Weight: 850 g
Tyre
- Continental Grand Prix TT 23 mm
- Width: 23 mm
- Weight: 200 g
Tyre
- Continental Grand Prix TT 25 mm
- Width: 28 mm
- Weight: 200 g

Cockpit

Stem
- Pure Cycling V19
Handlebar
- Canyon H33 Basebar Drop CF
- Material: Carbon
- Drop: 40 mm
Aero Bar
- Canyon E192-14 AL Lazy S-Bend

Seat

Saddle
- Fizik Antares R3
- Weight: 222 g
Seatpost
- Canyon S32 TT CF
- Material: Carbon
- Setback: Adjustable
- Technology: Fliphead
Seat Clamp
- Canyon Seatclamp for S31/S32

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Neopren Bag inkl. CO2 Pump
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Manual Speedmax CFR/CF SLX

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 186	≥ 186
Seat Height in mm (a)	698 - 828	727 - 857	761 - 891
Seat Tube Length in mm (b)	510	539	573
Top Tube Length in mm (c)	491	518	543
Head Tube Length in mm (d)	63	93	109
Head Tube Angle (e)	73°	73°	73°
Seat Tube Angle (f)	80,5°	80,5°	80,5°
Chainstay Length in mm (g)	420	420	420
Wheel Base in mm (h)	985	1.016	1.051
Stack in mm (i)	469	498	514
Reach in mm (j)	413	435	458
Armpad Stack in mm (m)	566 - 619	595 - 648	628 - 681
Armpad Reach in mm (n)	453 - 507	475 - 529	498 - 552

Component geometry

Detailed geometry table

Spacer in mm	55,0	55,0	55,0
Stem Length in mm	65	65	65
Handlebar Width in mm	410	410	410
Crank Length in mm	172,5	175	175
Chainring Size	53/39	53/39	53/39
Seat Post Length in mm	350	350	350
Maximum Seat Post Insertion Depth in mm	210	210	210
Minimum Seat Post Insertion Depth in mm	80	80	80
Wheel Size	28"	28"	28"
