Aeroad CF SL 8 Disc
- Colour: Stealth - Grey
-
-
Members only product. Log in here
Highlights Aeroad CF SL 8 Disc

Superlight frame

World-class aerodynamics
Frame
-
Frame
- Canyon Aeroad CF SL Disc
- Material: Carbon
- Axle Dimension: 12 x 142 mm
- Brake Mount: Flat Mount
- Weight: 1020 g (M)
-
Fork
- Canyon FK0099 CF SL Disc
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 750 g
Drivetrain
-
Rear Derailleur
- Shimano Ultegra R8000 SS
- Cage length: short
- Weight: 210 g
-
Front Derailleur
- Shimano Ultegra R8000
- Weight: 90 g
-
Cassette
- Shimano Ultegra R8000, 11-speed, 11-28T
- Number of sprockets: 11
-
Crank
- Shimano Ultegra R8000
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Ultegra R8020 2s
- Weight: 218 g
-
Shift-/ Brake Lever
- Shimano Ultegra R8020 11s
- Weight: 220 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- Reynolds AR58 DB
- Rotor mount: Center Lock
- Weight: 810 g
-
Rear Wheel
- Reynolds AR62 DB SH11
- Rotor mount: Center Lock
- Weight: 920 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

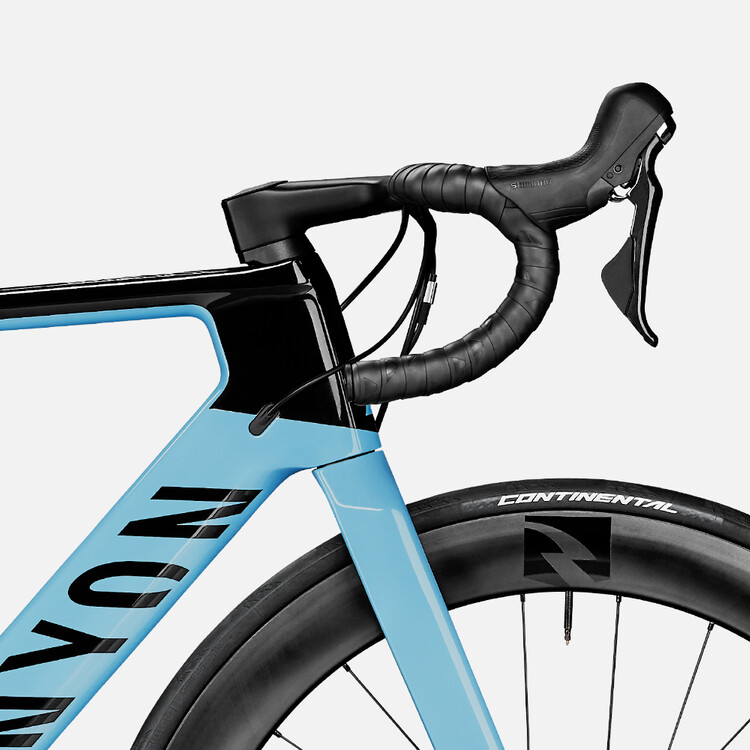

Cockpit
-
Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
- Material: carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLS
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 10 g
-
Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Clamp diameter: 27,2 mm
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- BAG REY Acc Strike SLG C DB
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Smallbox
Body Height in cm
|
≤ 160 | 158 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
594 - 674 | 624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
413 | 443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
501 | 520 | 533 | 549 | 559 | 573 | 598 | 613 |
Head Tube Length in mm
(d)
|
103 | 121 | 109 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
71° | 71,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
951 | 967 | 977 | 984 | 989 | 1.002 | 1.025 | 1.038 |
Stack in mm
(i)
|
483 | 498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
358 | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
708 | 729 | 759 | 785 | 810 | 834 | 860 | 884 |
Bottom Bracket Offset in mm
(l)
|
57 | 57 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
574 | 589 | 613 | 630 | 653 | 675 | 700 | 719 |
Reach+ in mm
|
415 | 430 | 446 | 459 | 473 | 490 | 509 | 529 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-370 | 90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-430 | 120-430 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Aeroad CF SL 8 Disc support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
