Endurace CFR Di2
-
-33%
- Material: Carbon (CFR)
-
Weight:
7.32 kg
Weight is based on a size M frame.
-
Colour: CFR Silver
-
Colour: Ultra Stealth
-
Colour: Sparkle Stealth
-
Colour: Golden Rush
-
Members only product. Log in here
-
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount -
Ordering your Canyon bike as a JOOLL allows you to save up to 50% using tax advantages. Go ahead, build your cart and choose JOOLL as your payment method. Learn more.* The leasing price is generally calculated on the basis of the maximum possible income tax benefit. The savings or leasing rate that applies to you depends on your income and personal circumstances and may be lower. Please consult a tax advisor. -
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more -
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Highlights Endurace CFR Di2
World Tour speed. Real-world conditions.
The perfect ride
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda
A masterpiece in raw carbon
Canyon Factory Racing
CFR: world-class carbon
An aerodynamic, easily adjustable carbon cockpit
Ride-saving tools at your fingertips
The benchmark of carbon seatpost design
Frame
-
Frame
- Canyon Endurace CFR

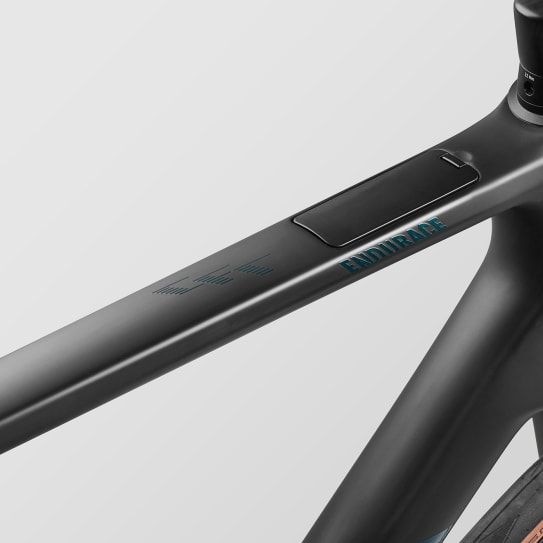

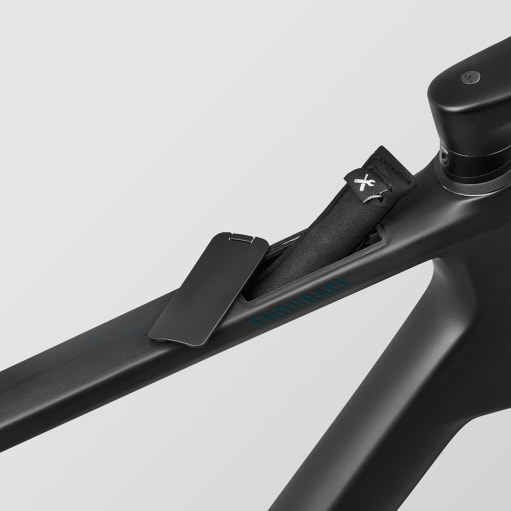

- Superlight endurance frame. Crafted from the highest grades of carbon to deliver benchmark stiffness-to-weight. Featuring internal LOAD top tube storage.
-
Axle dimension 12x142 mm
-
Tyre clearance 35 mm
-
Material Carbon (CFR)
-
Weight 1,123 g
-
Fork
- Canyon FK0128 Disc
- Superlight carbon fork, engineered for maximum stiffness-to-weight and compliance.
-
Axle dimension 12x100 mm
-
Tyre clearance 35 mm
-
Material Carbon (CF)
-
Weight 980 g
-
Seatpost Clamp
- Canyon Clamp SL
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano Dura-Ace Di2 RD-R9250, 12-speed
-
Cage length medium
-
Weight 256 g
-
Front Derailleur
- Shimano Dura-Ace Di2 FD-R9250
-
Weight 96 g
-
Cassette
- Shimano Dura-Ace R9200, 12-speed, 11-34
-
Number of sprockets 12
-
Range 11-34
-
Crank
- Shimano Dura-Ace Di2 Powermeter 172.5mm
-
Number of chainrings 2
-
Bottom bracket
- Shimano Pressfit BB92
-
Bottom bracket standard PF 86,5
-
Weight 55 g
-
Chain
- Shimano XTR
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9270, 12-speed
-
Number of pistons 2
-
Weight 330 g
-
Shift-/ Brake Lever
- Shimano BR-R9270
-
Weight 415 g
-
Brake Rotor
- Shimano XTR RT-MT900
-
Size 160 mm
-
Weight 106 g
Wheels
-
Front Wheel
- DT Swiss ERC 1100 Dicut
-
Axle dimension 12x100 mm
-
Rotor mount Center Lock
-
Rim height 45 mm
-
Inner width 22 mm
-
Rim material Carbon
-
Weight 663 g
-
Rear Wheel
- DT Swiss ERC 1100 Dicut
-
Axle dimension 12x142 mm
-
Rotor mount Center Lock
-
Rim height 45 mm
-
Inner width 22 mm
-
Rim material Carbon
-
Weight 786 g
-
Tyre
- Schwalbe Pro One TLE, 30mm
-
Width 30 mm
-
Weight 335 g
-
Tyre
- Schwalbe Pro One TLE, 32mm
-
Width 32 mm
-
Weight 345 g
-
Thru Axle
- DT Swiss Through Axle
-
Axle dimension 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
-
Axle dimension 12x142 mm
Cockpit
-
Cockpit

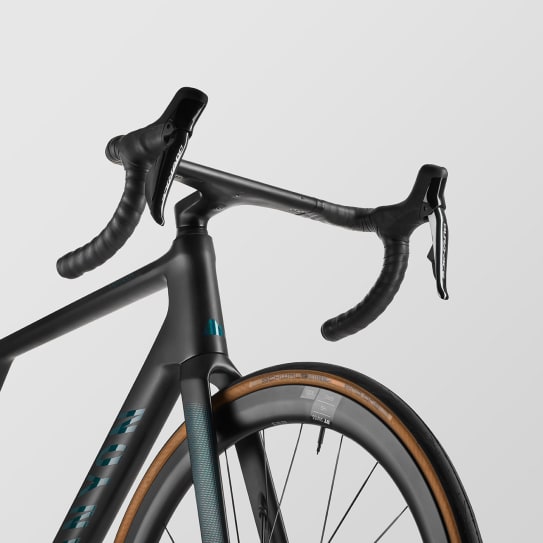

- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
-
Material Carbon (CF)
-
Weight 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
-
Color Black
Seat
-
Saddle
- Fizik Tempo Aliante R1 145mm
-
Gender Unisex
-
Weight 183 g
-

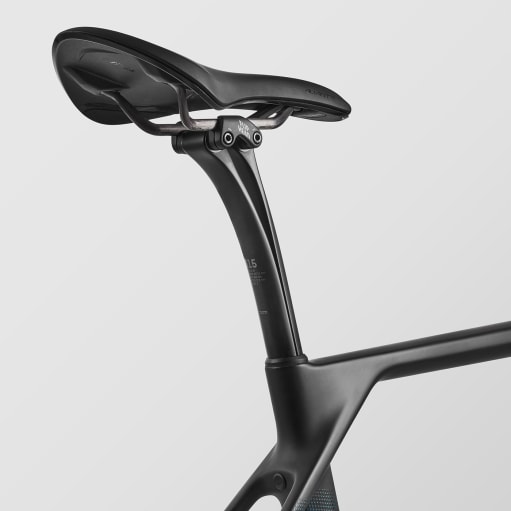

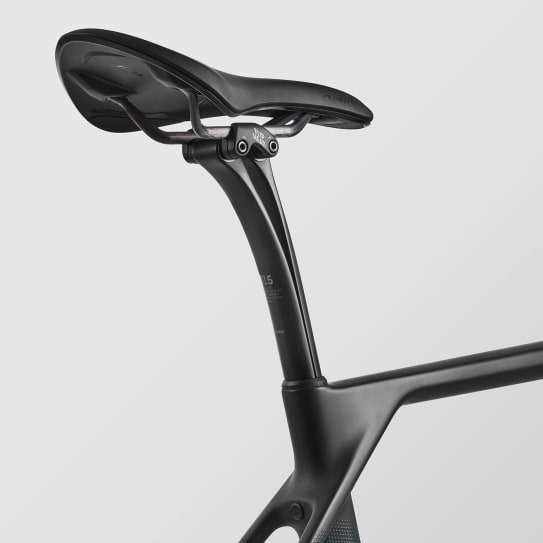

Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
-
Seatpost diameter 27,2 mm
-
Material Carbon (CF)
-
Weight 247 g
Light
-
Lights
- Reflector Set
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Endurace Quick Start Guide
-
Manuals and Accessories
- Smallbox
|
Body Height in cm
|
≤ 159 | 159 - 165 | 165 - 171 | 171 - 178 | 178 - 185 | 185 - 192 | 192 - 198 | ≥ 198 |
|---|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
|
Top Tube Length in mm
(c)
|
509 | 519 | 540 | 551 | 561 | 576 | 602 | 617 |
|
Head Tube Length in mm
(d)
|
123 | 138 | 129 | 146 | 165 | 186 | 212 | 232 |
|
Head Tube Angle
(e)
|
70,3° | 71,5° | 70,8° | 71,8° | 72,75° | 73° | 73,3° | 73,3° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
|
Wheel Base in mm
(h)
|
959 | 958 | 991 | 993 | 993 | 1.006 | 1.029 | 1.044 |
|
Stack in mm
(i)
|
510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
|
Reach in mm
(j)
|
350 | 354 | 370 | 375 | 378 | 387 | 405 | 415 |
|
Stand-over Height in mm
(k)
|
708 | 734 | 763 | 788 | 815 | 840 | 867 | 891 |
|
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
|
Stack+ in mm
|
591 | 609 | 630 | 649 | 669 | 691 | 717 | 737 |
|
Reach+ in mm
|
398 | 412 | 428 | 443 | 453 | 472 | 490 | 510 |
|
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
|---|---|---|---|---|---|---|---|---|
|
Cockpit Dimensions in mm
|
70-390 | 80-390 | 80-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
|
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
|
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
|
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
|
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
|
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
|
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
|
Rim height in mm
|
35 | 35 | 45 | 45 | 45 | 45 | 45 | 45 |
Bike Of The Year
Endurace CFR Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
-
