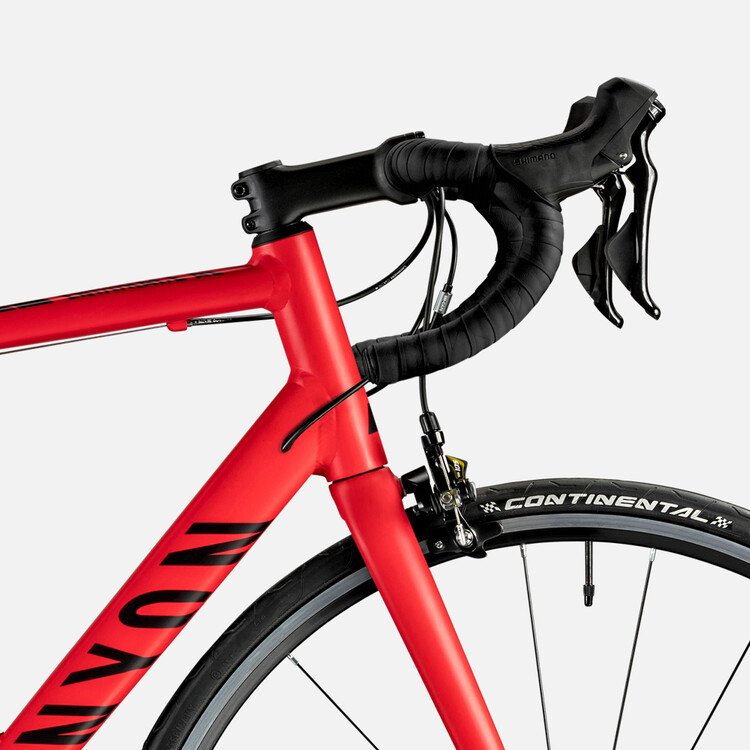

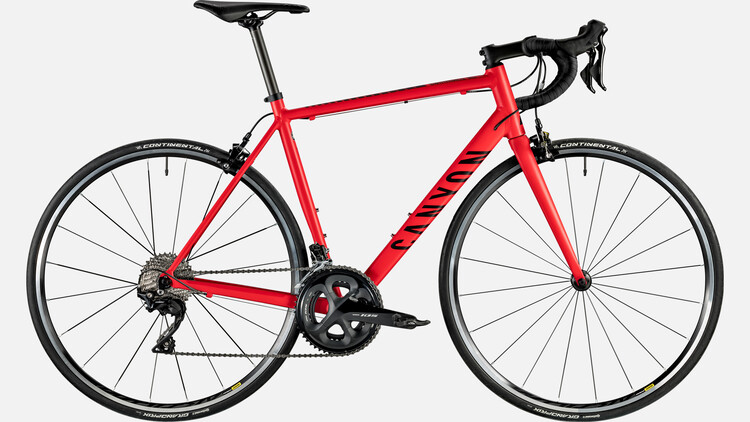

Endurace AL 7.0

Weighing in at only 8.2 kg, and awarded 8/10 by Cycling Weekly, the Endurace AL 7.0 is made for Gran Fondos and long weekend adventures – the definition of the modern do-it-all road bike.

Weight: 8.2 kg
Material: Aluminium (AL)

Colour: russian race red

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Endurace AL 7.0

Components

Content is loading

Drivetrain

Rear Derailleur
- Shimano 105 R7000 GS
- Weight 253 g
Front Derailleur
- Shimano 105 R7000
- Weight 94 g
Cassette
- Shimano HG700 11-34 11s
- Number of sprockets 11
Crank
- Shimano 105 R7000
- Number of chainrings 2
Bottom bracket
- Shimano BSA BB-R60
- Bottom bracket standard BSA 68
- Weight 77 g
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.

Brakes

Brake
- Shimano 105 R7000
Brake
- Shimano 105 R7000
Shift-/ Brake Lever
- Shimano 105 R7000 2s
- Weight 262 g
Shift-/ Brake Lever
- Shimano 105 R7000 11s
- Weight 281 g

Wheels

Front Wheel
- Mavic Aksium
- Wheelsize 28"
- Weight 650 g
Rear Wheel
- Mavic Aksium SH11
- Wheelsize 28"
- Weight 750 g
Tyre
- Continental Grand Prix SL 25 mm
- Width 25 mm
- Weight 210 g

Cockpit

Stem
- Canyon V15
- High-grade aluminium stem
- Clamp diameter 31.8 mm
- Head tube diameter 1 1/8”
- Weight 148 g
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material Aluminium
- Shape Ergo
- Reach 70 mm
- Drop 130 mm

Seat

Saddle
- Selle Italia X3
- Max. Rider Weight 100 kg
- Weight 268 g
Seatpost
- Canyon SP0042 VCLS CF
- Material Carbon
- Setback 8 mm
- Technology VCLS
Seat Clamp
- Canyon Clamp SL

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Starter Box
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Endurace Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 172	172 - 177	177 - 182	182 - 187	187 - 192	192 - 197	≥ 197
Seat Height in mm (a)	656 - 756	696 - 796	728 - 828	754 - 854	776 - 876	801 - 901	826 - 926
Seat Tube Length in mm (b)	465	505	537	563	585	610	635
Top Tube Length in mm (c)	526	537	547	554	576	587	610
Head Tube Length in mm (d)	150	163	175	190	212	230	248
Head Tube Angle (e)	70,8°	72°	72,5°	73,25°	73,25°	73,25°	73,25°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	415	415	415	415	415	415	415
Wheel Base in mm (h)	984	988	989	998	1.011	1.022	1.044
Stack in mm (i)	551	566	581	598	619	636	654
Reach in mm (j)	363	369	375	377	393	399	416
Stand-over Height in mm (k)	741	771	797	817	838	858	877
Bottom Bracket Offset in mm (l)	70	70	70	70	70	70	70
Stack+ in mm	635	652	667	685	706	725
Reach+ in mm	422	439	456	469	485	501

Component geometry

Detailed geometry table

Spacer in mm	27,5	27,5	27,5	27,5	27,5	27,5	27,5
Stem Length in mm	80	90	100	110	110	120	120
Handlebar Width in mm	400	420	420	420	440	440	440
Crank Length in mm	170,0	172,5	172,5	175,0	175,0	175,0	175,0
Chainring Size	52/36	52/36	52/36	52/36	52/36	52/36	52/36
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"	28"	28"
