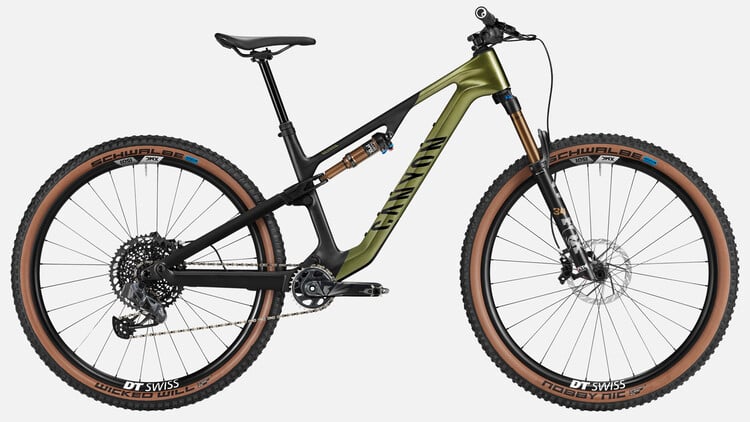

Neuron CF 9 SL
-
Out of stock
31,499 US$
Original price
You save 7,800 US$
A top all-round carbon MTB. From a week cruising around the big mountains to an afternoon ripping your local trails, this bike’s ready for anything. Experience true off-road versatility.
- Front Fork Travel: 140 mm
-
Weight:
13 kg
WeightWeight is based on a size medium frame.
Members only product.
Log in here
Additional information
Current delivery times information.
Read more
Not included:
Delivery:
Select frame size
Highlights Neuron CF 9 SL

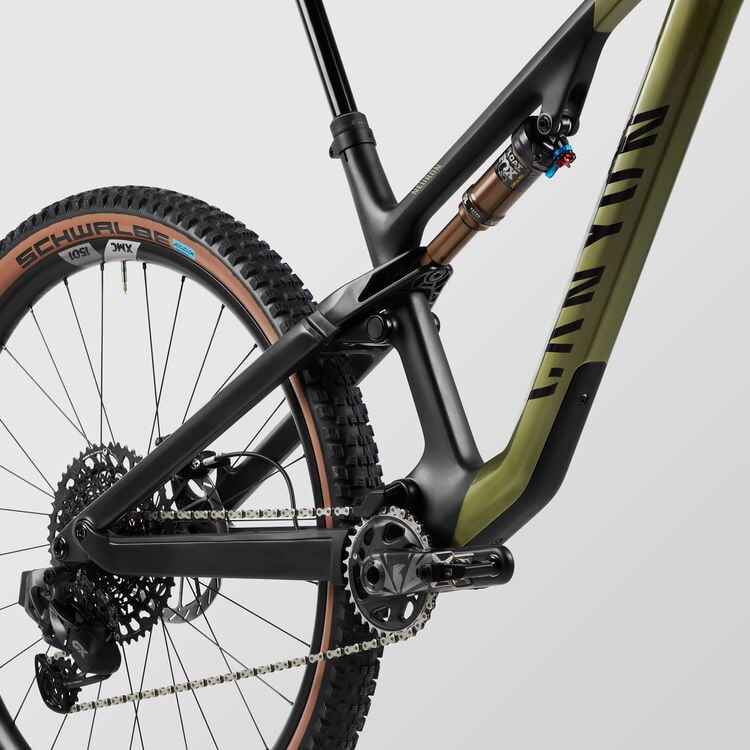

Triple Phase Suspension
Triple Phase Suspension delivers incredible control and feel on the trail. Small-bump sensitivity for huge traction. Mid-stroke stability for speed and momentum. And on big hits the suspension ramps up progressively to avoid bottoming out.

Clean and simple internal cable routing
The Neuron CF has internal cable routing for a more elegant look. But it’s not just about style: pre-installed internal liners make cable installation simpler too. Push the cable through and hey presto, it comes out the other end. The design minimises internal bending and to protect the inside of the frame from mud all entry points are sealed.

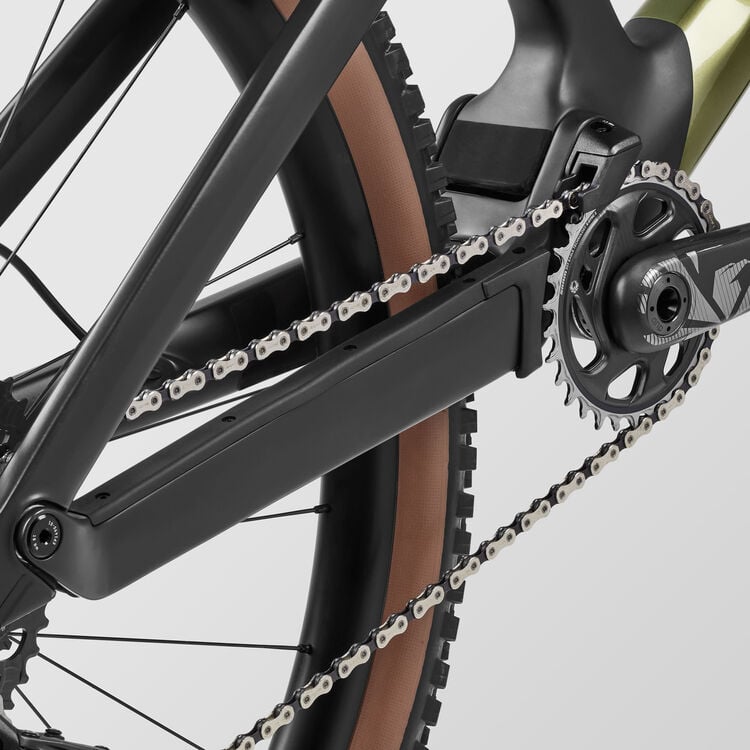

Integrated chainstay protection and chain guide
Your chain will stay secure on the roughest trails thanks to the Neuron CF’s cleanly integrated chain guide. Plus a chainstay protector keeps the frame in pristine condition and also eliminates annoying chain slap noises thanks to its special noise-dampening rubber compound. The guide and protectors are both adjustable to work with chainring sizes 28-34T.

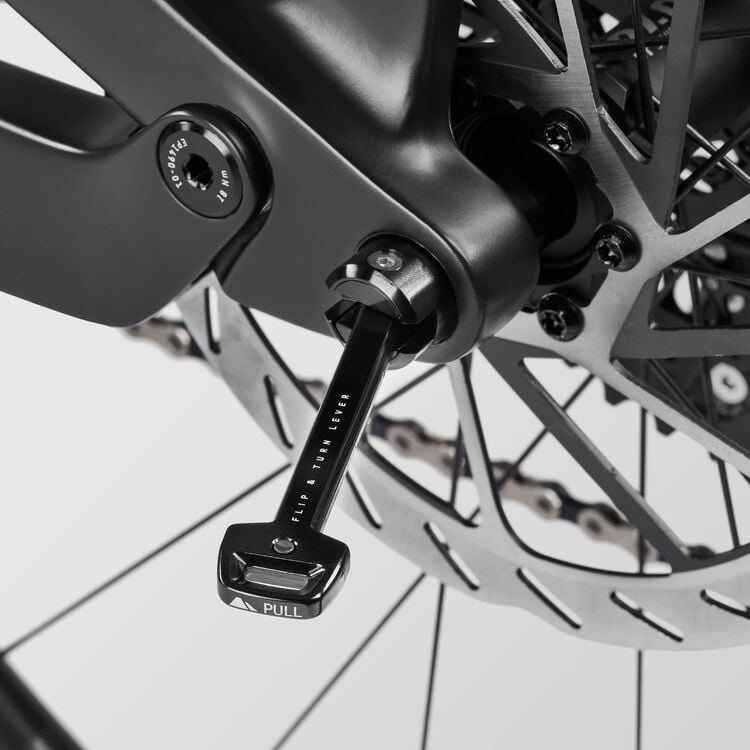

A quick-release through axle
Get the best of all worlds with the Quixle through-axle. Precise handling, thanks to the stiffness of a through-axle. And rapid wheel removal, with the speed and ease you normally only get from a quick release. The handle tucks away neatly for tool-free removal.
Content is loading
Frame
-
Frame
- Canyon Neuron
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,460 g
-
Rear Shock
- FOX Float DPS Factory
-

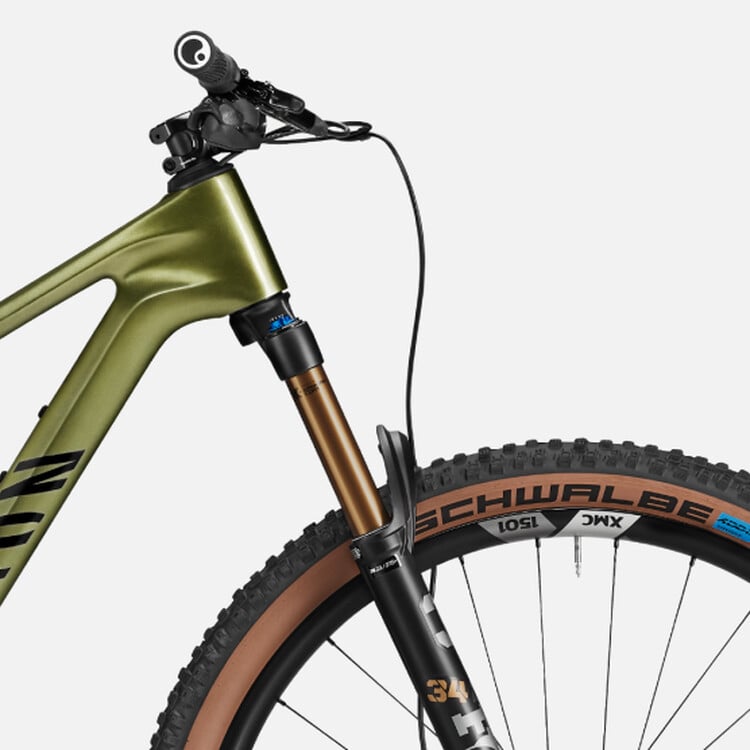

Suspension Fork
- FOX 34 Float Factory FIT4
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM GX Eagle AXS
- Weight: 340 g
-
Chainguard
- Canyon EP1538-01 Chain Guide
-
Shift Lever
- SRAM GX Eagle AXS
- Weight: 68 g
-
Cassette
- SRAM GX Eagle, 12-speed, 10-52T
- Number of sprockets: 12
- Range: 10-52
-
Crank
- SRAM X1 C Eagle 30T
- Number of chainrings: 1
-
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
-
Chain
- SRAM GX Eagle 12s
Brakes
-
Disc Brake
- SRAM Code RSC
-
Disc Brake
- SRAM Code RSC
-
Brake Rotor
- SRAM HS2
- Size: 180 mm
- Weight: 171 g
Wheels
-
Front Wheel
- DT Swiss XMC 1501
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Rim height: 25 mm
- Inner width: 30 mm
- Weight: 864 g
-
Rear Wheel
- DT Swiss XMC 1501
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Rim height: 25 mm
- Inner width: 30 mm
- Weight: 940 g
-
Tyre
- Schwalbe Nobby Nic 29x2.4" bronze skin
- Width: 2.4"
- Weight: 876 g
-
Tyre
- Schwalbe Wicked Will 29x2.4" bronze skin
- Width: 2.4"
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Race Face Turbine R
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
-
Handlebar
- Race Face Next 35
- Clamping diameter: 35,0 mm
- Width: 760 mm
- Rise: 20 mm
-
Grips
- Ergon GA20
Seat
-
Saddle
- Ergon SM10 Sport Men
- Gender: Male
- Weight: 316 g
-
Seatpost
- Canyon G5
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 534 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
630 - 765 | 650 - 775 | 685 - 810 | 750 - 875 | 790 - 915 |
Seat Tube Length in mm
(b)
|
390 | 390 | 425 | 460 | 500 |
Top Tube Length in mm
(c)
|
556 | 579 | 611 | 639 | 674 |
Head Tube Length in mm
(d)
|
90 | 100 | 110 | 125 | 143 |
Head Tube Angle
(e)
|
66° | 66° | 66° | 66° | 66° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
430 | 430 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.139 | 1.164 | 1.203 | 1.234 | 1.271 |
Stack in mm
(i)
|
587 | 596 | 626 | 639 | 656 |
Reach in mm
(j)
|
410 | 430 | 455 | 480 | 510 |
Stand-over Height in mm
(k)
|
756 | 759 | 777 | 783 | 790 |
Bottom Bracket Offset in mm
(l)
|
18 | 18 | 38 | 38 | 38 |
Spacer in mm
|
5,0 | 5,0 | 10,0 | 15,0 | 15,0 |
---|---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
Handlebar Width in mm
|
760 | 760 | 760 | 760 | 760 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
30 | 30 | 30 | 30 | 30 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 170 | 170 | 200 | 200 |
Seat Post Length in mm
|
417 | 457 | 457 | 517 | 517 |
Maximum Seat Post Insertion Depth in mm
|
225 | 245 | 245 | 275 | 275 |
Minimum Seat Post Insertion Depth in mm
|
90 | 120 | 120 | 150 | 150 |
Wheel Size
|
27.5" | 27.5" | 29" | 29" | 29" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
140 | 140 | 140 | 140 | 140 |
Rear Suspension Travel in mm
|
130 | 130 | 130 | 130 | 130 |
Fitting Length
|
190X45 | 190X45 | 210X50 | 210X50 | 210X50 |
Download PDF
Content is loading
Neuron CF 9 SL support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
