Pint-sized frame, big-time performance. Packing the Grand Canyon’s ruggedness and versatility into a package engineered for riders 149-166 cm, this is everything your little ripper needs to kickstart their MTB adventures.

Front Fork Travel: 120 mm
Weight: 13.36 kg

Customer reviews (26)

Colour: FW Bolt

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

699 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Grand Canyon Young Hero 27.5"

Key features

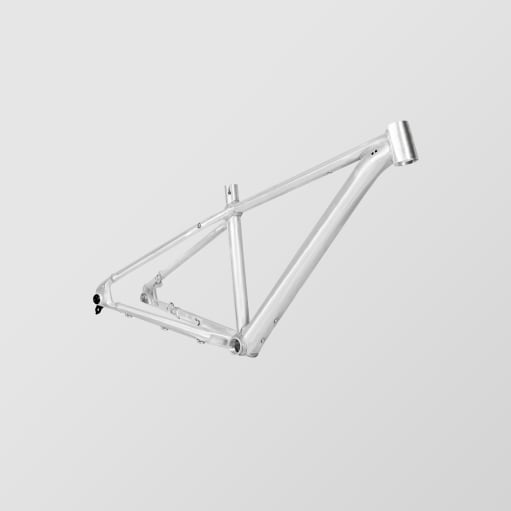

The most durable frame in its class

Built to endure season after season of all-out trail riding, the Grand Canyon’s aluminium frame is designed for durability. Each bike meets our rigorous Category 3 testing standards (on par with our full-suspension Neuron), significantly tougher than other aluminium hardtails on the market. The high grade alloy is lightweight too, ensuring you can rack up the kilometers with ease and speed.

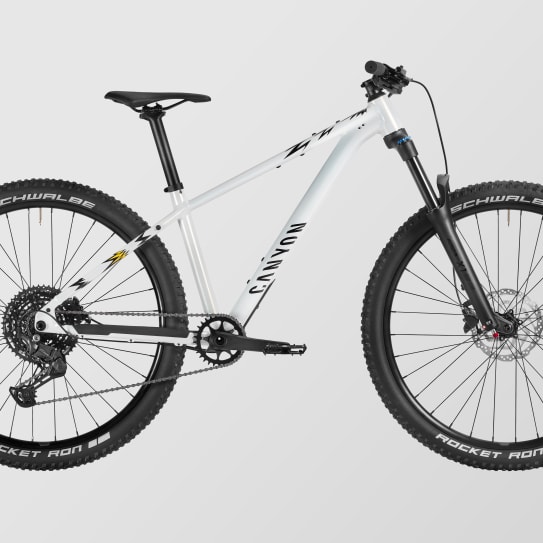

Tuned for smaller riders

More comfort and control mean more fun for your Young Hero. To ensure the perfect fit and ride for smaller mountain bikers, we use high-quality, youth-specific components throughout. For enhanced suspension sensitivity, we picked a smaller fork with 120 mm of travel. For optimum ergonomics, we included a narrower 700 mm handlebar, shorter cranks, and a smaller saddle. Finally, for safe braking and maximum control and hand comfort, we added smaller brake levers for smaller hands. All bases covered.

Smaller frame, same handling

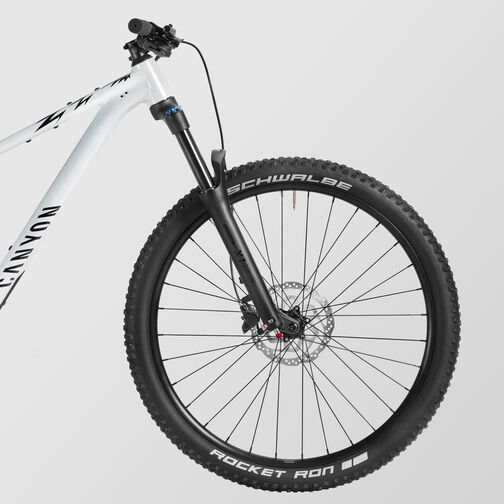

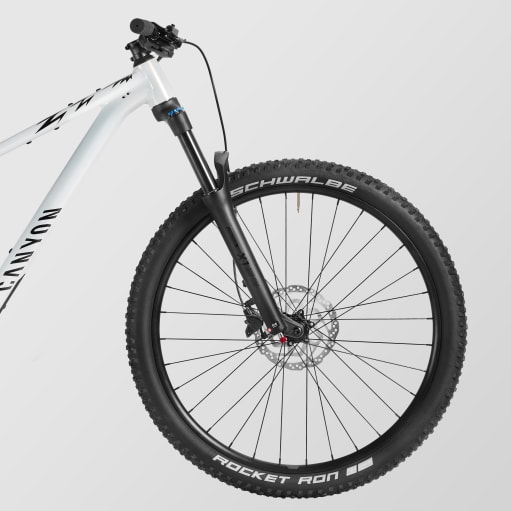

With the Grand Canyon Young Hero, our aim was to build a youth MTB with the exact same precise handling and stability as its full-sized counterparts. To guarantee consistent handling in smaller sizes, we scale down to 24-inch wheels on this model so your Young Hero can enjoy the control and confidence they need to ride safe and with a smile on their face.

Signature Fabio Wibmer artwork

When your style is Fabio Wibmer-certified, you know you're good to go. Our artists collaborated with Fabio to create this artwork, capturing his unique style - fearless, all-out, and in short, sick.

Components

Content is loading

Frame

Frame
- Canyon Grand Canyon AL YH
- Aluminium hardtail frame specially designed for younger, smaller riders.
- Axle dimension 12x148 mm
- Material Aluminium (AL)
- Weight 1,989 g
Suspension Fork
- SR Suntour X1 AIR
- Axle dimension 15x110 mm
- Stanchion Diameter 32 mm
- Travel 120 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 2,370 g
Headset
- Acros AZX-214
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano CUES 10/11-speed
- Cage length short
- Weight 348 g
Shift Lever
- Shimano CUES SL-U6050 10s
- Weight 131 g
Cassette
- Shimano CUES LG300-10
- Number of sprockets 10
- Range 11-48
Crank
- Samox YH
- Number of chainrings 1
Bottom bracket
- Samox BSA
- Bottom bracket standard BSA 68/73
Chain
- Shimano Cues LG500

Brakes

Disc Brake
- Shimano MT200
Disc Brake
- Shimano MT200
Brake Rotor
- Shimano RT10
- Size 180 mm
- Weight 316 g

Wheels

Front Wheel
- Alex Rims DP25 with Shimano HB-TC500 front hub
- Axle dimension 15X100 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 937 g
Rear Wheel
- Alex Rims DP25 with Shimano FH-TC500 rear hub
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1,069 g
Tyre
- Schwalbe Rocket Ron
- Width 2.25"
- Weight 645 g
Thru Axle
- Canyon GP0255-01
- Axle dimension 12x148 mm

Cockpit

Stem
- ST0039
- Fork steer tube diameter 1 1/8"
- Clamping diameter 31,8 mm
Handlebar
- Canyon HB0073
- Clamping diameter 31,8 mm
- Rise 18 mm
Grips
- GRIP VELO VLG-1979

Seat

Saddle
- VELO VL-5120 KIDS
Seatpost
- SP2019
- Seatpost diameter 31,6 mm
- Material Aluminium (AL)

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- BAND 003-V01 BIKE CATEGORY 3
Manuals and Accessories
- Canyon Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	149 - 158	158 - 166
Seat Height in mm (a)	465 - 685	465 - 685
Seat Tube Length in mm (b)	387	387
Top Tube Length in mm (c)	543	567
Head Tube Length in mm (d)	90	105
Head Tube Angle (e)	66°	66°
Seat Tube Angle (f)	75°	75°
Chainstay Length in mm (g)	425	425
Wheel Base in mm (h)	1.096	1.122
Stack in mm (i)	573	587
Reach in mm (j)	390	410
Stand-over Height in mm (k)	741	746
Bottom Bracket Offset in mm (l)	49	49

Component geometry

Detailed geometry table

Stem Length in mm	45	45
Handlebar Width in mm	700	700
Crank Length in mm	155,0	155,0
Chainring Size	30	30
Seat Post Diameter in mm	31,6	31,6
Seat Post Length in mm	350	350
Maximum Seat Post Insertion Depth in mm	320	320
Minimum Seat Post Insertion Depth in mm	100	100
Wheel Size	27.5"	27.5"
Disc Size in mm	180 / 180	180 / 180
Front Fork Travel in mm	120	120
