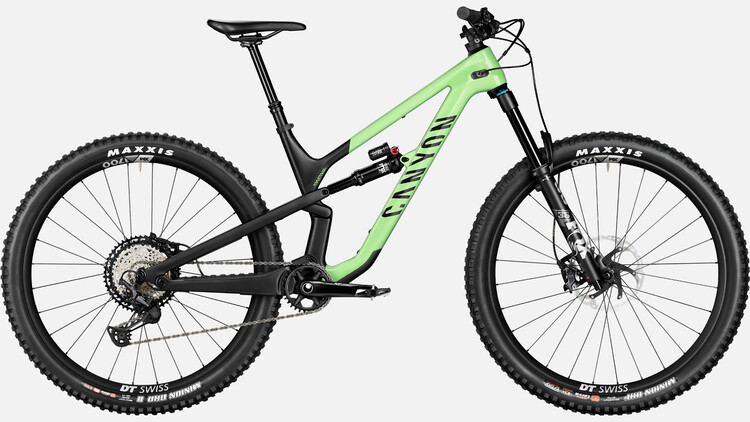

Spectral 29 CF 8
If you’re looking for a versatile mountain bike ready for any riding conditions, the Spectral 29 CF 8 is the trail bike for you. The longer, flatter geometry gives you the control you need to ride any trail any way you want.
- Front Fork Travel: 160 mm
-
Weight:
14.44 kg
WeightWeight is based on a size medium frame.
- Colour: Exhaust Black
-
-
Members only product. Log in here
Select frame size
Sold out
Members only product.
Log in here
Sold out
Highlights Spectral 29 CF 8

Flip Chip
Do you need maximum stability and control in corners? Or more ground clearance for technical climbing? What if you could have both? Using the Flip Chip on the rear suspension linkage, you can change the bike’s geometry to suit your riding style and riding conditions within a matter of seconds. Head tube and seat tube angle adjustment: 0.5 degrees. Bottom bracket height adjustment: 8 mm.

Replaceable threaded inserts
Inspired by our World Cup mechanics, replaceable threaded inserts guarantee maximum durability. Because if a thread sustains damage after years of hard trail riding, you can just swap it out. And with an ISCG mount you can fit an optional bash guard or chain guide.

Next-level Triple Phase Suspension
The rear end’s Triple Phase Suspension design gives you the performance, control and confidence you need to attack any kind of trail. Sensitive small-bump response provides top traction. In the mid-stroke, a stable feel lets you keep momentum and speed out of berms and over bumps. And on big hits, the suspension ramps up progressively for a bottomless feel.
Content is loading
Frame
-
Frame
- Canyon Spectral CF 29
- Full-carbon MTB frame. Built to shred with a long, slack, progressive geometry. With Flip Chip system for simple geometry adjustment. Category 4.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 1,650 g
-
Rear Shock
- FOX DPX2 Performance Elite
- Weight: 676 g
-

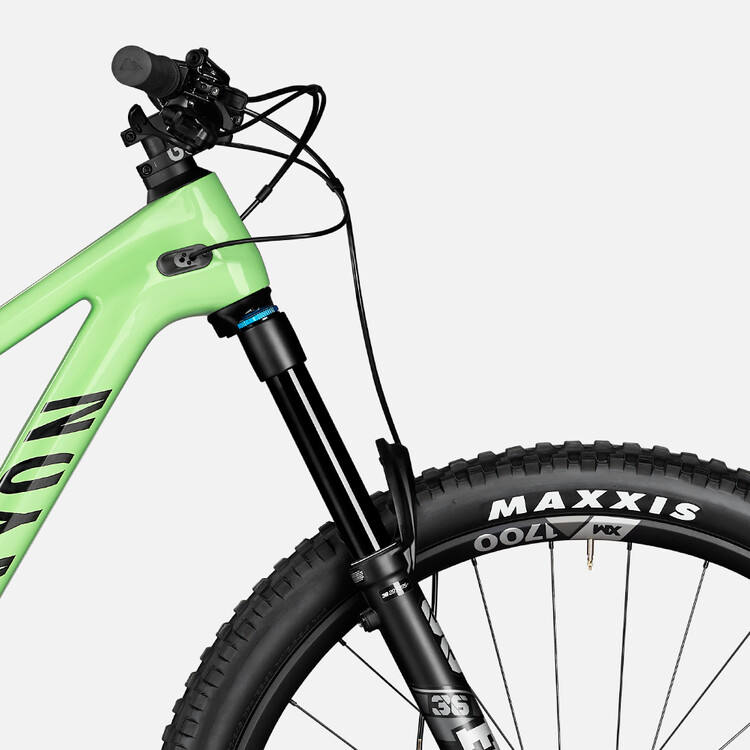

Suspension Fork
- FOX 36 Performance Elite Grip 2
- Axle dimension: 15x110 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
Drivetrain
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Chainguard
- Canyon EP1266-01 ISCG05 Plate
-
Chainguard
- Canyon Chainguide
-
Shift Lever
- Shimano Deore XT SL-M8100
- Weight: 130 g
-
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano XT, 32T
- Number of chainrings: 1
-
Bottom bracket
- Shimano MT801
- Bottom bracket standard: BSA HT2 68/73
- Weight: 79 g
-
Chain
- Shimano M7100
- SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly.
Brakes
-
Disc Brake
- Shimano DEORE XT M8120
-
Disc Brake
- Shimano DEORE XT M8120
- Number of pistons: 4
-
Brake Rotor
- Shimano RT86, 180mm
- Size: 180 mm
- Weight: 148 g
-
Brake Rotor
- Shimano RT86
- Size: 203 mm
- Weight: 182 g
Wheels
-
Front Wheel
- DT Swiss XM1700
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 920 g
-
Rear Wheel
- DT Swiss XM1700 29"
- Rotor mount: IS 6-bolt
- Weight: 980 g
-
Tyre
- Maxxis Minion DHF, 2.5"
- Width: 2.5"
- Weight: 250 g
-
Tyre
- MAXXIS Minion DHR II 2.4''
- Width: 2.4"
- Weight: 10 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- Fizik Terra Alpaca X5
- Gender: Unisex
- Weight: 230 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
648 - 778 | 683 - 813 | 733 - 853 | 763 - 883 |
Seat Tube Length in mm
(b)
|
395 | 430 | 460 | 490 |
Top Tube Length in mm
(c)
|
583 | 610 | 637 | 664 |
Head Tube Length in mm
(d)
|
95 | 105 | 115 | 125 |
Head Tube Angle
(e)
|
64,5° | 64,5° | 64,5° | 64,5° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
437 | 437 | 437 | 437 |
Wheel Base in mm
(h)
|
1.197 | 1.226 | 1.255 | 1.285 |
Stack in mm
(i)
|
615 | 624 | 633 | 642 |
Reach in mm
(j)
|
431 | 456 | 481 | 506 |
Stand-over Height in mm
(k)
|
751 | 758 | 763 | 775 |
Bottom Bracket Offset in mm
(l)
|
33 | 33 | 33 | 33 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 150 | 170 | 170 |
Seat Post Length in mm
|
425 | 425 | 465 | 465 |
Maximum Seat Post Insertion Depth in mm
|
220 | 220 | 240 | 240 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 120 | 120 |
Wheel Size
|
29" | 29" | 29" | 29" |
Disc Size in mm
|
203 / 180 | 203 / 180 | 203 / 180 | 203 / 180 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Download PDF
Content is loading
Spectral 29 CF 8 support
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
