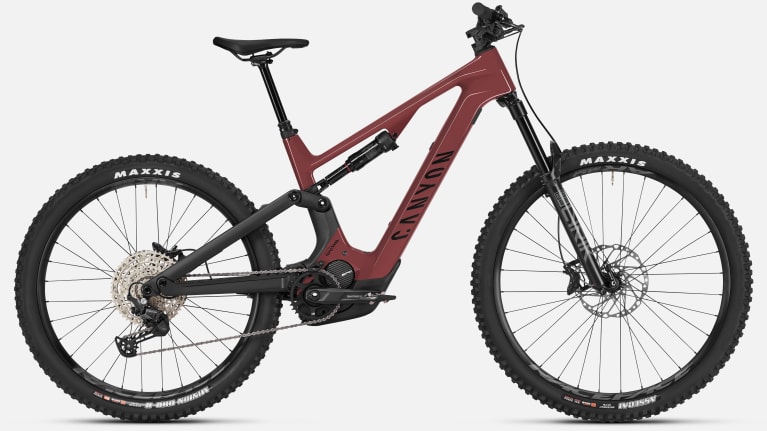

Spectral:ON CF 7
-
Out of stock
- Front Fork Travel: 160 mm
-
Weight:
24.22 kg
WeightWeight is based on a size medium frame.
- Colour: Stealth
-
- Colour: Nearly Grey
-
Members only product. Log in here
-
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
-
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.
Learn more
Highlights Spectral:ON CF 7

Uniquely nimble

CLLCTV approved
Crafted Carbon Trail e-MTB chassis
Powerful batteries for more miles and more stoke
The new EP8
GPS Enabled
Perfectly Balanced Mullet Setup
Trail tough hardware
Frame
-
Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 3,597 g
-
Rear Shock
- RockShox Deluxe Select R
- Tune: LINEAR REB-LC COMP TUNE
- Weight: 342 g
-
Suspension Fork
- RockShox Lyrik
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 0/5
- Weight: 2,340 g
Drivetrain
-
Motor
- Shimano EP801
-
Battery
- CANYON BT010
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Chainguard
- Canyon Chainguide M091/M129
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
-
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
-
Brake Rotor
- Shimano RT64
- Size: 203 mm
- Weight: 206 g
-
Brake Rotor
- Shimano Steps RT-EM600
- Size: 203 mm
Wheels
-
Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,200 g
-
Rear Wheel
- RaceFace AR35 | Shimano MT510
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Weight: 1,250 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
-
Seat Clamp
- Canyon GP0279-01 Seatclamp
Accessories
-
Battery Charger
- CANYON CHARGER
-
Battery Charger
- CANYON CHARGER
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
-
Manuals and Accessories
- QSG 027-V04 M091/M129 SPT[ON]
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
647 - 756 | 693 - 823 | 733 - 853 | 753 - 873 |
Seat Tube Length in mm
(b)
|
420 | 440 | 460 | 480 |
Top Tube Length in mm
(c)
|
586 | 613 | 641 | 668 |
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
65,5° | 65,5° | 65,5° | 65,5° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.194 | 1.223 | 1.252 | 1.281 |
Stack in mm
(i)
|
630 | 639 | 648 | 657 |
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
Stand-over Height in mm
(k)
|
809 | 814 | 820 | 825 |
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 |
Spacer in mm
|
15 | 15 | 15 | 15 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 170 | 170 |
Seat Post Length in mm
|
378 | 425 | 465 | 465 |
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 240 | 240 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 120 | 120 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
155 | 155 | 155 | 155 |
Battery capacity
|
800 Wh | 800 Wh | 800 Wh | 800 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Spectral:ON CF 7 support
Other riders also bought
- Colour: Night Sky
- Colour: Thyme
- Colour: Tillandsia Purple
- Colour: Creole Pink
- Colour: Night Sky
- Colour: Thyme
- Colour: Tillandsia Purple
- Colour: Creole Pink
Bike classification
This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
