Ultimate CF SL 8 Aero
- Material: Carbon (CF)
-
Weight:
7.86 kg
WeightWeight is based on a size medium frame.
- Colour: Black Snow
-
-
Members only product. Log in here
Highlights Ultimate CF SL 8 Aero

The perfect balance

Aerodynamically optimised

High-grade carbon layup

A new integrated aero seatpost

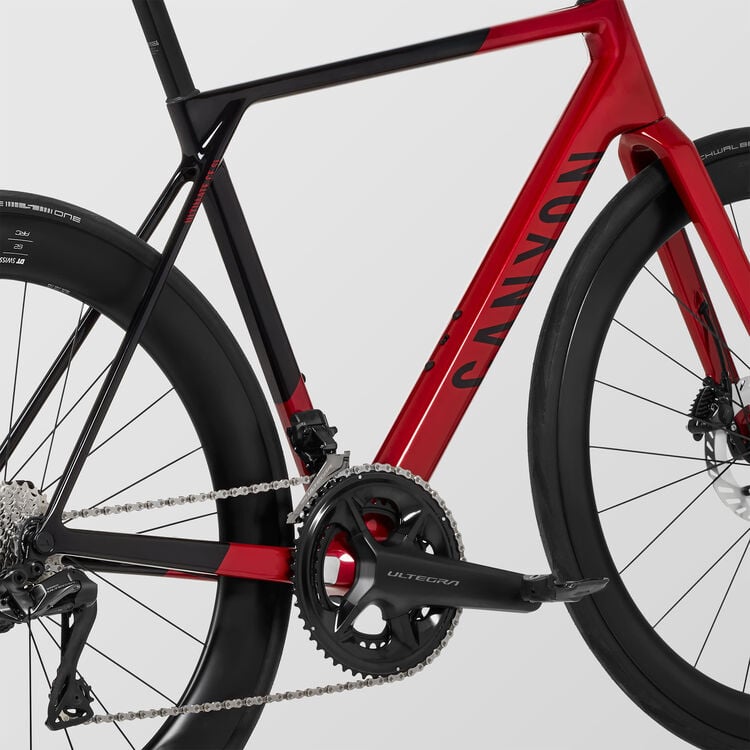

Frame
-
Frame
- Canyon Ultimate CF SL
- Our latest 5th-generation Ultimate frame.
- Axle dimension: 12x142 mm
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 1,210 g
-

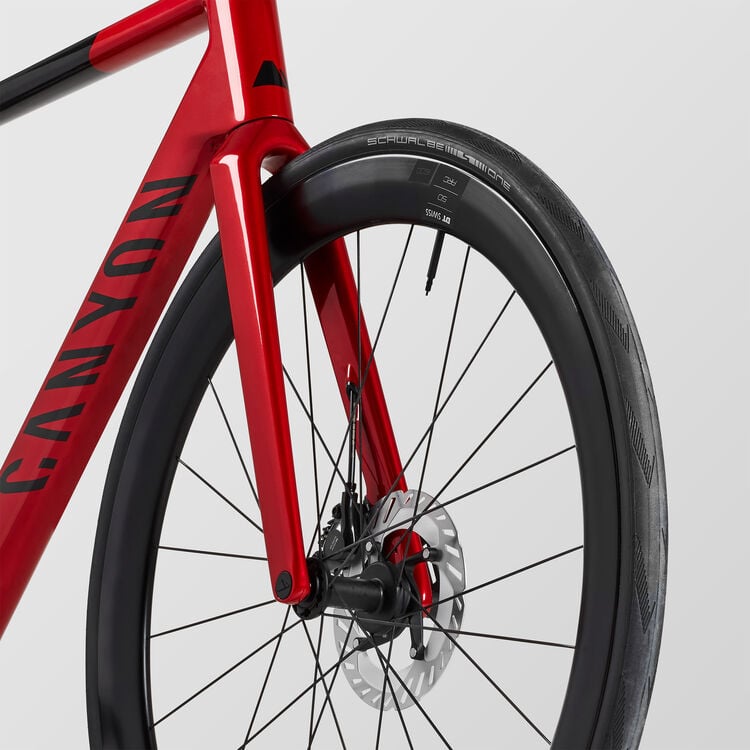

Fork
- Canyon FK0104 CF
- Carbon fork optimised for lightness, stiffness, and strength.
- Axle dimension: 12x100 mm
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 980 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2
- Weight: 260 g
-
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight: 111 g
-
Cassette
- Shimano Ultegra CS-R8101 12s
- Number of sprockets: 12
- Range: 11-30
-
Crank
- Shimano Ultegra FC-R8100 4iiii Precision Powermeter
- Works with Apple FindMy
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
Brakes
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons: 2
- Weight: 199 g
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons: 2
- Weight: 369 g
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 140 mm
- Weight: 95 g
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 112 g
Wheels
-
Front Wheel
- DT Swiss ARC 1600 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 725 g
-
Rear Wheel
- DT Swiss ARC 1600 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 979 g
-
Tyre
- Schwalbe One TLE, 25mm
- Width: 25 mm
- Weight: 245 g
-
Tyre
- Schwalbe One Tire 28mm
- Width: 28 mm
- Weight: 360 g
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 181 g
-
Seatpost
- Canyon SP0055
- Custom carbon seatpost with aerodynamic D-shape profile.
- Seatpost diameter: 27,2 mm
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 108 g
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 160 | 160 - 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
594 - 694 | 624 - 724 | 654 - 754 | 684 - 784 | 714 - 814 | 744 - 844 | 774 - 874 | 804 - 904 |
Seat Tube Length in mm
(b)
|
390 | 420 | 450 | 480 | 510 | 540 | 570 | 600 |
Top Tube Length in mm
(c)
|
497 | 516 | 529 | 546 | 555 | 569 | 594 | 610 |
Head Tube Length in mm
(d)
|
104 | 115 | 107 | 121 | 142 | 162 | 188 | 206 |
Head Tube Angle
(e)
|
70,2° | 71,5° | 71,2° | 72,8° | 73,25° | 73,3° | 73,5° | 73,8° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 410 | 410 | 410 | 413 | 415 | 415 |
Wheel Base in mm
(h)
|
958 | 965 | 979 | 983 | 987 | 1.004 | 1.029 | 1.042 |
Stack in mm
(i)
|
483 | 498 | 520 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
358 | 372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
697 | 720 | 748 | 775 | 801 | 828 | 851 | 874 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
558 | 572 | 596 | 613 | 635 | 656 | 681 | 701 |
Reach+ in mm
|
415 | 430 | 445 | 459 | 473 | 491 | 509 | 530 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
70-390 | 80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
316 | 316 | 316 | 316 | 316 | 316 | 316 | 316 |
Maximum Seat Post Insertion Depth in mm
|
160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
Minimum Seat Post Insertion Depth in mm
|
60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 140 / 140 | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 160 | 160 / 160 |
Ultimate CF SL 8 Aero support
Other riders also bought
- Colour: Vermillion Orange
- Colour: Lilac
- Colour: Blue
- Colour: Marine
- Colour: Arabic Spice
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
