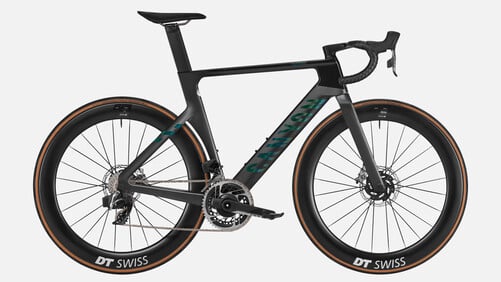

Aeroad CFR Disc AXS

Out of stock

96.399 kr

Original price ~~96.999 kr~~

You save 600 kr (-1%)

An aero race bike ready to compete at the very highest levels of professional cycling. With components ridden by the fastest riders in the pro peloton, complete system integration, and special premium finish, the Aeroad CFR sets a new industry standard for aero road disc performance. This is the Next Level. This is CFR. This is Canyon Factory Racing.

Weight: 7.37 kg
Material: Carbon (CFR)

Customer reviews (7)

Members only product.

96.399 kr

Original price ~~96.999 kr~~

You save 600 kr (-1%)

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Delivery: Select frame size

Highlights Aeroad CFR Disc AXS

Key features

The lightest possible frame

The entire Aeroad CFR frameset weighs in at 1,752 grams. That’s a huge 238 gram saving over the previous generation’s flagship CF SLX. We do it by using the highest-grade materials, the most advanced manufacturing techniques, and collaborating with the very best partners in the industry.

Aero cockpit innovation

The CP0018 goes way beyond aerodynamically optimised cockpits. Achieve +/-40 mm simple width adjustability for a dialled fit with a single tool. An innovative no-cut stem allows you to move seamlessly between a slammed stem and 15 mm rise with no cutting or spacer stacks above the stem. The new wing design makes cable management and travelling with your bike easy and simple.

Components

Content is loading

Frame

Frame
- Canyon Aeroad CFR Disc
- null
Fork
- Canyon FK0060 CF Disc
- null
- null
- null
- null
- null
- null

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM RED eTap AXS 12s
- null
Front Derailleur
- SRAM RED eTap AXS
- null
Cassette
- SRAM RED XG-1290, 12-speed, 10-28
- null
Crank
- SRAM RED Powermeter
- null
Bottom bracket
- SRAM DUB Pressfit
- null
- null
Chain
- SRAM Red D1 12-speed
- null

Brakes

Shift-/ Brake Lever
- SRAM RED eTap AXS HRD, 12-speed
- null
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD, 12-speed
- null
- null
Brake Rotor
- SRAM Centerline X
- null
- null

Wheels

Front Wheel
- DT Swiss ARC 1100 Dicut
- null
- null
Rear Wheel
- DT Swiss ARC 1100 Dicut
- null
- null
- null
Tyre
- Continental Grand Prix 5000, 25 mm
- null
- null
Tyre
- Continental Grand Prix 5000, 28 mm
- null
- null
Thru Axle
- DT Swiss Through Axle
- null
Thru Axle
- DT Swiss Through Axle
- null

Cockpit

Cockpit
- Canyon CP0018 Aerocockpit
- null
- null
- null
Handlebar Tape
- Canyon Ergospeed Gel
- null
- null

Seat

Saddle
- Selle Italia SLR Kit Carbonio Boost Superflow
Seatpost
- Canyon SP0046 Aero Seatpost
- null
- null
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Starter Box
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Endurace Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
a Seat Height in mm	624 - 704	654 - 734	684 - 764	714 - 794	744 - 824	774 - 854	804 - 884
b Seat Tube Length in mm	443	473	503	533	563	593	623
c Top Tube Length in mm	520	533	549	559	572	598	613
d Head Tube Length in mm	89	106	126	147	167	193	211
e Head Tube Angle	70,5°	71,5°	72,75°	73,25°	73,25°	73,5°	73,75°
f Seat Tube Angle	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
g Chainstay Length in mm	410	410	410	410	410	410	410
h Wheel Base in mm	972	977	984	989	1.002	1.025	1.038
i Stack in mm	498	521	539	560	580	606	624
j Reach in mm	372	378	390	393	401	419	429
k Stand-over Height in mm	733	759	785	810	834	860	884
l Bottom Bracket Offset in mm	72	72	70	70	70	70	70
Stack+ in mm	573	596	613	635	656	681	701
Reach+ in mm	429	446	459	473	490	509	529

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15,0	15,0	15,0	15,0	15,0	15,0	15,0
Cockpit Dimensions in mm	80-390	90-390	90-390	100-410	110-410	110-410	120-410
Crank Length in mm	165,0	170,0	172,5	172,5	175,0	175,0	175,0
Chainring Size	50/37	50/37	50/37	50/37	50/37	50/37	50/37
Seat Post Length in mm	335	335	335	335	335	335	335
Maximum Seat Post Insertion Depth in mm	202	202	202	202	202	202	202
Minimum Seat Post Insertion Depth in mm	122	122	122	122	122	122	122
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
