Lux World Cup CF 8

-14%

2,959 US$

Original price ~~3,449 US$~~

You save 490 US$

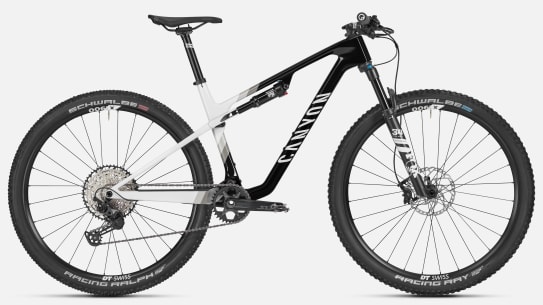

Instant acceleration, high top speed, precise handling: with Shimano shifting and the pro-proven Lux World Cup frame, this XC race bike is lightning fast on techy ascents and tricky descents alike.

Front Fork Travel: 110 mm
Weight: 12.2 kg

Customer reviews (15)

Colour: Podium Black

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

2,959 US$

Original price ~~3,449 US$~~

You save 490 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Lux World Cup CF 8

Key features

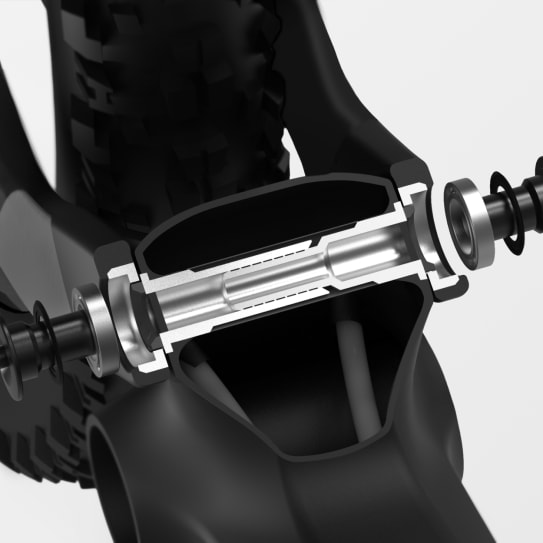

Sturdy, stiff, superlight

At a highly competitive 1,925 grams, the Lux World Cup CF frame is one of the lightest full-suspension MTB frames in its class, beating many of the lightest full-suspension frames around in the weight stakes. And we actually boosted the frame’s stiffness despite its lightweight credentials, all while still meeting our punishing Category 3 testing standards.

Unrivalled climbing efficiency

The latest-gen Lux World Cup further improves on the core kinematics and anti-squat values that made its predecessor a World Cup-winning, climb-devouring racing machine. Combined with the frame’s extremely low weight, tweaks to the shock position, rocker link, anti-squat and general kinematics have resulted in our most efficient and fastest-climbing mountain bike ever. Simply put – this bike flies.

Even more capable

What goes up must come down. The Lux World Cup not only gets you to the top of the climb first – now more capable and confident on the downs, it also gets you to the bottom of the mountain even faster, even on technical modern XC tracks. All thanks to a new overhauled progressive geometry, with a 15 mm longer reach, slack 68.5° head angle, and shorter stems than its predecessor.

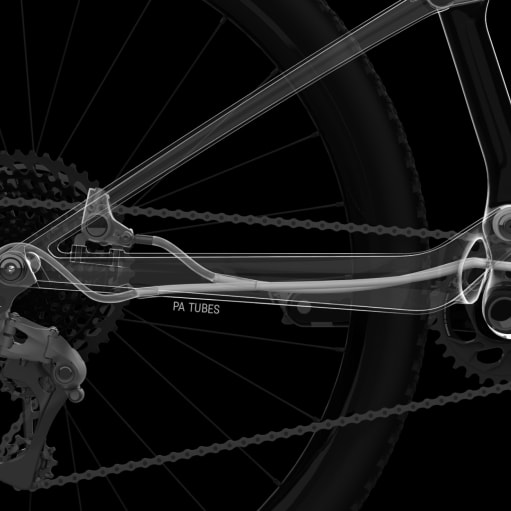

Sleek design, clean integration

The sleek design of the Lux World Cup doesn’t just look great, it also has real performance benefits. The single edge flowing from the headtube along the top tube through the rear triangle visually expresses its racing focus, the reduced edges and optimised head and downtube cross-sections boost the frame’s stiffness and durability. The internal cable routing looks great, reduces mud buildup and is easy to use, with internal tubes guiding cables through the frame.

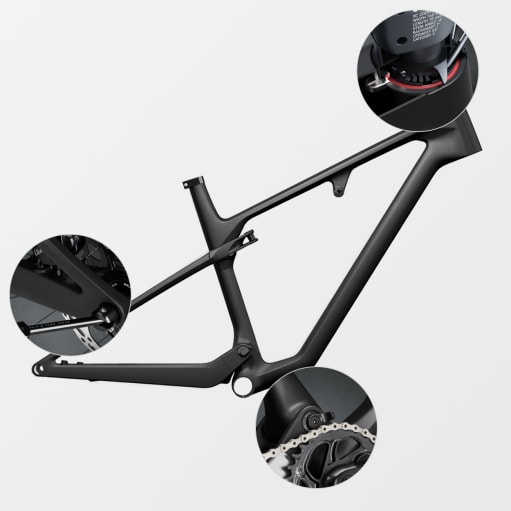

Details make the difference

The Lux World Cup packs a variety of smart features that deliver real benefits out on the trail. Examples? Dropped chains suck, so we fitted an ultralight 3.6 g chain guide. Likewise, our integrated Impact Protection Unit prevents the handlebars from over-rotating and crushing the bike’s top tube during a crash. Finally, the integrated Quixle has the stiffness of a rear thru-axle and convenience of tool-free rear wheel removal.

Components

Content is loading

Frame

Frame
- Canyon Lux WC CF
- Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1,925 g
Rear Shock
- FOX Float SL Performance Elite 3-Pos Remote
Suspension Fork
- FOX 34 Stepcast Performance 3-Pos Remote
- Axle dimension 15x110 mm
- Stanchion Diameter 34 mm
- Travel 110 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 1,640 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano SLX 12s
- Cage length long
- Weight 310 g
Shift Lever
- Shimano Deore SLX M7100
- Weight 143 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Shimano SLX M7120
- Number of chainrings 1
Bottom bracket
- Shimano Pressfit BB71
- Bottom bracket standard PF 89,5/92
- Weight 71 g
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano SLX M7100
- Number of pistons 2
Disc Brake
- Shimano SLX M7110
- Number of pistons 2
Brake Rotor
- Shimano RT66 160
- Size 160 mm
- Weight 110 g
Brake Rotor
- Shimano RT66 180
- Size 180 mm
- Weight 140 g

Wheels

Front Wheel
- DT Swiss X 1900 Spline
- Axle dimension 15x110 mm
- Rotor mount IS 6-bolt
- Inner width 25 mm
- Rim material Aluminium
- Weight 881 g
Rear Wheel
- DT Swiss X 1900 Spline
- Axle dimension 12x148 mm
- Rotor mount IS 6-bolt
- Inner width 30 mm
- Rim material Aluminium
- Weight 1,001 g
Tyre
- Schwalbe Racing Ralph SG TLE EVO 2.35"
- Width 2.35"
- Weight 750 g
Tyre
- Schwalbe Racing Ray
- Width 2,35"
- Weight 801 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Race Face Ride
- Fork steer tube diameter 1 1/8"
Handlebar
- Race Face Ride Rise
- Clamping diameter 31,8 mm
Grips
- Ergon GXR

Seat

Saddle
- Ergon SR10 Pro Sport
- Gender Male
- Weight 250 g
Seatpost
- Race Face Ride
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 295 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	583 - 733	623 - 773	663 - 813	703 - 853	743 - 893
Seat Tube Length in mm (b)	375	415	455	495	535
Top Tube Length in mm (c)	565	585	606	630	653
Head Tube Length in mm (d)	90	90	95	110	125
Head Tube Angle (e)	68,5°	68,5°	68,5°	68,5°	68,5°
Seat Tube Angle (f)	75°	75°	75°	75°	75°
Chainstay Length in mm (g)	430	430	430	430	430
Wheel Base in mm (h)	1.100	1.120	1.142	1.167	1.193
Stack in mm (i)	577	577	582	596	610
Reach in mm (j)	410	430	450	470	490
Stand-over Height in mm (k)	777	777	780	784	793
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15	15
Stem Length in mm	70	70	70	70	70
Handlebar Width in mm	740	740	740	740	740
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Seat Post Length in mm	400	400	400	400	400
Maximum Seat Post Insertion Depth in mm	240	240	240	240	240
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	110	110	110	110	110
Rear Suspension Travel in mm	100	100	100	100	100
Fitting Length	210X50	210X50	210X50	210X50	210X50

Download PDF

Content is loading

Lux World Cup CF 8 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
