Speedmax CF SLX 8 WMN Disc Di2
-
-
Members only product. Log in here
Smaller frame, smaller wheels: XS bikes have lighter 650b DT Swiss wheels with 50 mm rims. For consistent riding dynamics in all sizes.
Highlights Speedmax CF SLX 8 WMN Disc Di2

Custom touchpoints

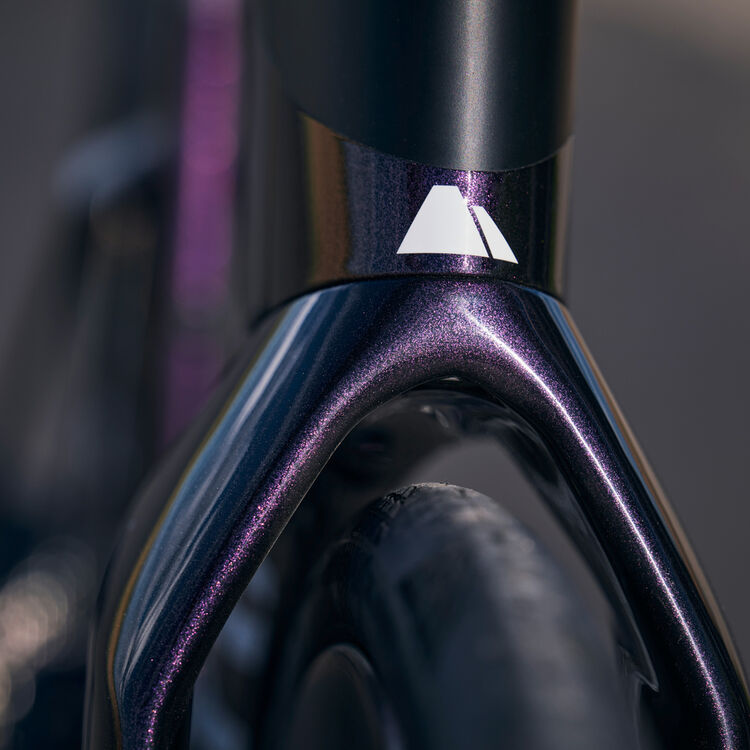

Aero disc-specific fork

An aero, adjustable cockpit
Frame
-
Frame
- Canyon Speedmax CF SLX DISC
- All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard. Weight: 1560 g
-
Fork
- Canyon FK0080 CF Disc
- Axle dimension: 12x100 mm
- Tyre clearance: 30 mm
- Material: Carbon (CF)
- Weight: 550 g
Drivetrain
-
Battery
- Shimano BT-DN110 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2 R8050 SS
- Cage length: short
- Weight: 10 g
-
Front Derailleur
- Shimano Ultegra Di2 R8050
- Weight: 132 g
-
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 19 g
-
Cassette
- Shimano Ultegra R8000, 11-speed, 11-28T
- Number of sprockets: 11
-
Crank
- Shimano Ultegra R8000 4iiii Precision Powermeter
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano CN-HG701 11s
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180 TT
- Weight: 401 g
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9180 TT
- Weight: 401 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- DT Swiss ARC 1400 Dicut db
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 716 g
-
Rear Wheel
- DT Swiss ARC 1400 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Weight: 978 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 260 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0019 Triathlon Flatbar short
- Aerodynamically optimised triathlon cockpit with adjustable height, width, reach, and grip. Ergonomically optimised for maximum control at high speeds in a compact riding position.
- Material: Carbon (CF)
- Weight: 525 g
-
Aero Bar
- Canyon GP0226 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
-
Saddle
- Fizik Mistica
- Weight: 245 g
-
Seatpost
- Canyon SP0049 TRI CF
- Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile, weight: 295 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Hydration Packs
- Canyon X Hydrapak Speedmax H2O Reservoir
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Manual Speedmax CFR/CF SLX
Body Height in cm
|
≤ 170 | 170 - 178 | 178 - 186 |
---|---|---|---|
Seat Height in mm
(a)
|
621 - 741 | 664 - 784 | 715 - 865 |
Seat Tube Length in mm
(b)
|
488 | 531 | 552 |
Top Tube Length in mm
(c)
|
466 | 494 | 519 |
Head Tube Length in mm
(d)
|
64 | 62 | 83 |
Head Tube Angle
(e)
|
72° | 73° | 73° |
Seat Tube Angle
(f)
|
80,5° | 80,5° | 80,5° |
Chainstay Length in mm
(g)
|
410 | 420 | 420 |
Wheel Base in mm
(h)
|
960 | 986 | 1.014 |
Stack in mm
(i)
|
435 | 469 | 489 |
Reach in mm
(j)
|
393 | 415 | 438 |
Stand-over Height in mm
(k)
|
273 | 798 | 816 |
Bottom Bracket Offset in mm
(l)
|
52 | 72 | 72 |
Armpad Stack in mm
(m)
|
528 - 638 | 561 - 671 | 581 - 691 |
Armpad Reach in mm
(n)
|
363 - 417 | 386 - 440 | 408 - 463 |
Spacer in mm
|
110 | 110 | 110 |
---|---|---|---|
Cockpit Dimensions in mm
|
70-400 | 70-400 | 70-400 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
285 | 285 | 345 |
Maximum Seat Post Insertion Depth in mm
|
200 | 200 | 230 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
Wheel Size
|
27.5" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 |
Speedmax CF SLX 8 WMN Disc Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
