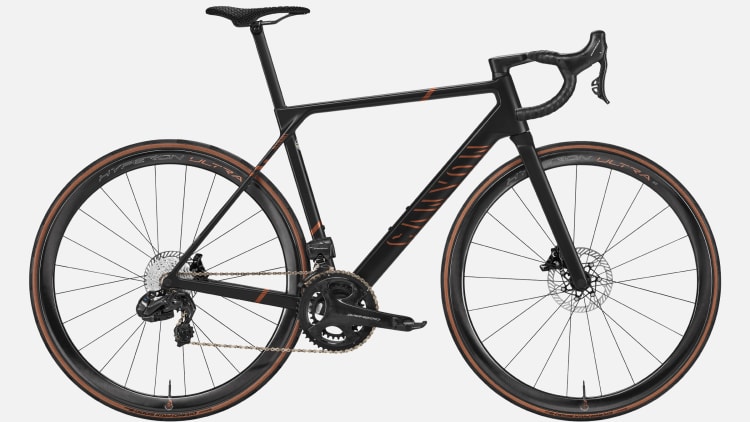

Ultimate CFR WRL
- Material: Carbon (CFR)
-
Weight:
6.5 kg
WeightWeight is based on a size M frame.
-
-
Members only product. Log in here
Highlights Ultimate CFR WRL
Latest-generation Canyon aero cockpit
A WorldTour-level carbon seatpost
CFR: world-class carbon
Exclusive artwork
Frame
-
Frame
- Canyon Ultimate CFR
- Pro-level build of our latest 5th-generation Ultimate frame delivering the pinnacle of stiffness-to-weight. As raced at World Tour level.
- Axle dimension: 12x142 mm
- Tyre clearance: 33 mm
- Material: Carbon (CFR)
- Weight: 838 g
-
Fork
- Canyon FK0108 CF Disc
- Carbon fork optimised for lightness, stiffness, and strength.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 334 g
Drivetrain
-
Battery
- Campagnolo Super Record WRL Battery
-
Rear Derailleur
- Campagnolo Super Record WRL, 12-speed
- Cage length: medium
- Weight: 295 g
-
Front Derailleur
- Campagnolo Super Record WRL, 12-speed
-
Cassette
- Campagnolo Super Record, 12-speed, 10-29T
- Number of sprockets: 12
- Range: 10-29
-
Crank
- Campagnolo Super Record Pro-Tech Carbon
- Number of chainrings: 2
-
Bottom bracket
- Campagnolo Pro-Tech Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 50 g
-
Chain
- Campagnolo Super Record 12s
Brakes
-
Shift-/ Brake Lever
- Campagnolo Super Record WRL, 2-speed
-
Shift-/ Brake Lever
- Campagnolo Super Record WRL, 12-speed
- Weight: 789 g
-
Brake Rotor
- Campagnolo AFS 04
- Size: 140 mm
-
Brake Rotor
- Campagnolo AFS 04
- Size: 160 mm
Wheels
-
Front Wheel
- Campagnolo Hyperon Ultra
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Weight: 560 g
-
Rear Wheel
- Campagnolo Hyperon Ultra
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Weight: 680 g
-
Tyre
- Continental GP 5000 S TR
- Width: 25 mm
- Weight: 246 g
-
Tyre
- Continental GP 5000 S TR
- Width: 28 mm
- Weight: 283 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Boost 3D KIT Carbonio Superflow
- Width: 130 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 163 g
-
Seatpost
- Canyon SP0064
- Superlight custom carbon seatpost with aerodynamic D-shape profile.
- Setback: 0 mm
- Material: Carbon (CF)
- Weight: 70 g
-
Seat Clamp
- Canyon GP0224-02 Adapter seatstay 7x9
-
Seat Clamp
- Canyon GP0295-03 Seatpost Wedge
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
-
Manuals and Accessories
- Quick Start Guide
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
624 - 724 | 654 - 754 | 684 - 784 | 714 - 814 | 744 - 844 | 774 - 874 | 804 - 904 |
Seat Tube Length in mm
(b)
|
420 | 450 | 480 | 510 | 540 | 570 | 600 |
Top Tube Length in mm
(c)
|
516 | 529 | 546 | 555 | 569 | 594 | 610 |
Head Tube Length in mm
(d)
|
88 | 107 | 121 | 142 | 162 | 188 | 206 |
Head Tube Angle
(e)
|
71,5° | 71,2° | 72,8° | 73,3° | 73,3° | 73,5° | 73,5° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 413 | 415 | 415 |
Wheel Base in mm
(h)
|
975 | 979 | 982 | 988 | 1.003 | 1.029 | 1.042 |
Stack in mm
(i)
|
498 | 520 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
372 | 378 | 390 | 393 | 401 | 419 | 429 |
Stand-over Height in mm
(k)
|
720 | 748 | 775 | 801 | 828 | 851 | 875 |
Bottom Bracket Offset in mm
(l)
|
73 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
573 | 596 | 613 | 635 | 656 | 681 | 701 |
Reach+ in mm
|
428 | 446 | 459 | 473 | 490 | 509 | 530 |
Spacer in mm
|
16 | 16 | 16 | 16 | 16 | 16 | 16 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
32/48 | 32/48 | 32/48 | 32/48 | 32/48 | 32/48 | 32/48 |
Seat Post Length in mm
|
316 | 316 | 316 | 316 | 316 | 316 | 316 |
Maximum Seat Post Insertion Depth in mm
|
160 | 160 | 160 | 160 | 160 | 160 | 160 |
Minimum Seat Post Insertion Depth in mm
|
60 | 60 | 60 | 60 | 60 | 60 | 60 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 160 | 160 / 160 |
Ultimate CFR WRL support















Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
