Pathlite:ON 8 SUV

Name: Pathlite:ON 8 SUV
Brand: Canyon
Price: 17199.00 PLN
Availability: InStock
Rating: 4 (7 reviews)

New stock

From 3.749 ZŁ

Take your touring trips to the next level with this reliable, fully-equipped e-bike. With its high-quality, low-maintenance components – powerful brakes, Bosch motor and lights plus a high-capacity battery, this is a bike that makes touring a relaxed, delightful experience.

Weight: 26.96 kg
Front Fork Travel: 120 mm

Reviews (7)

Colour: Tundra Green

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Members only product.

Select a size above in order to view more options.

From 3.749 ZŁ

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more

Delivery: Select frame size

Highlights Pathlite:ON 8 SUV

This is Pathlite:ON SUV

Adventure demands more. The SUV delivers.

For those who hear the call of the wild. The Pathlite:ON SUV is your companion beyond the pavement—where the forests whisper, horizons stretch, and the road becomes a memory. Deeper into nature and further than ever. Let power, comfort and all-terrain capability carry you into the unknown. This is adventure—without limits.

Test your Pathlite:ON SUV

Try before you buy. Plan a test ride of the Pathlite:ON SUV with expert help to find your perfect size and frame shape for ultimate comfort on every ride.
See locations

Key features

For an extra boost, install the 100 Nm motor software update via the Bosch eBike Flow app.

A powerful Bosch motor

Cruise easy up any hill, even with your bike fully loaded for touring. Bosch's latest, greatest CX motor and Smart System has a huge 340% pedal assistance, plenty to power you through your most ambitious adventures without breaking a sweat. Exploring those picturesque rolling hills and rugged natural landscapes has never been so simple and comfortable - no training required, just saddle up and savour the views.

A huge 170 km maximum battery range

Pick between two battery sizes to fit your riding style and touring plans. The larger 800 Wh battery has an enormous 170 km maximum range, enough to cruise through entire tours in remote areas without a single recharge. The 600 Wh gives you plenty of juice for getting deep into nature and back home again on a long one-day ride, or for two-day tours at a lower assistance setting.

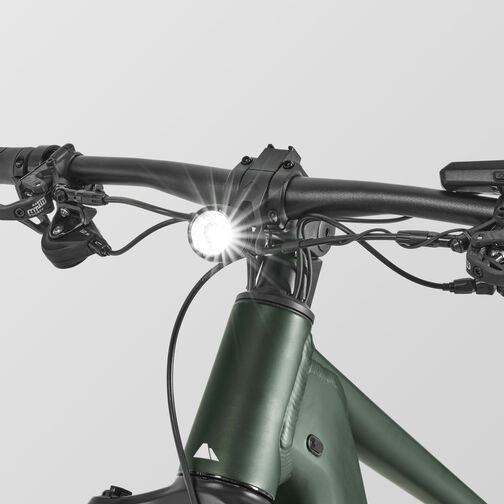

Light up the way

Illuminate the night and capture those magical twilight touring moments well after the sun goes down. The bike’s high-quality, compact Supernova front light is powered by the bike’s main battery, and its high-beam function is mega bright and easy to control from the handlebar. On the rear, the M15 rear light has a brake light function like on a car, so drivers can better predict your braking and maintain a safe distance.

Powerful, precise braking

Combining top-tier stopping power, legendary build quality, and precise braking control, you can rely on these Magura brakes to bring you to a controlled standstill when you need them most, even in wet, greasy conditions.

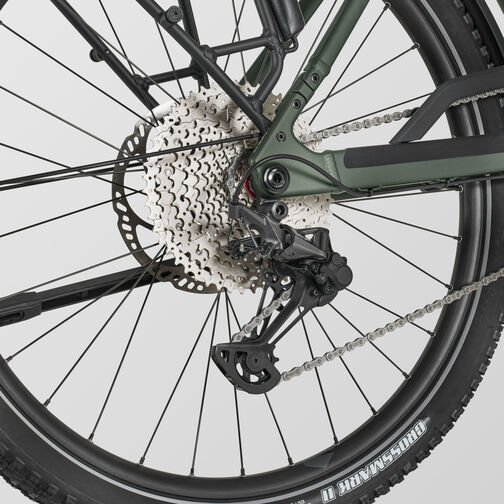

Sharp gear shifting come rain or shine

Proven performance, top-tier reliability. Shimano’s legendary XT groupset provides sharp shifting, year after year, in all weather conditions. The latest Hyperglide+ technology makes shifting even faster, and the drivetrain is quieter thanks to decreased rear derailleur and chain tension.

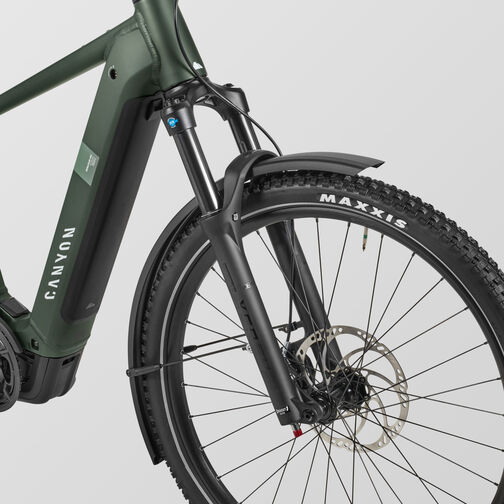

More comfort and control: air suspension fork

Enjoy a ride as smooth as a magic carpet and huge front wheel grip on loose terrain with this suspension fork and its modern air spring design. Steering feels precise thanks to the fork’s stiffness and for extra pedalling efficiency on smooth roads you can lock out the fork to make it rigid. Plus the fork's 120 mm of travel is significantly more than you'll find on most other touring bikes in this class, meaning smoother, more comfortable and more enjoyable riding when the path gets rough.

Components

Content is loading

Frame

Frame
- Canyon Pathlite:ON
- A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,620 g
Suspension Fork
- SR Suntour XCR34 Air, 120 mm
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"
- Offset: 44 mm
- Weight: 2,500 g
Seatpost Clamp
- Canyon Seat Clamp

Drivetrain

Motor
- Bosch Performance Line CX GEN.5
Battery
- Bosch PowerTube 600Wh
Battery
- Bosch PowerTube 800Wh
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 282 g
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
Cassette
- SunRace CSMZ800 12s 11-51T
- Number of sprockets: 12
Crank
- FSA CK 220
- Number of chainrings: 1
Chainring
- Samox EMS05 40T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Magura MT thirty rear brake
- Number of pistons: 2
Disc Brake
- Magura MT Thirty front brake
- Number of pistons: 4
Brake Rotor
- Magura MDR-C
- Size: 203 mm
- Weight: 235 g

Wheels

Front Wheel
- AlexRims MD25 with Shimano MT400 front hub
- Rotor mount: Center Lock
- Rim height: 19 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 900 g
Rear Wheel
- AlexRims MD25 with Shimano TC500 rear hub
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 19 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 1,240 g
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width: 2,25"
- Weight: 750 g
Thru Axle
- Canyon GP0552 Rear Thru Axle
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon ST0036 Adjustable
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
Handlebar
- Canyon HB0051
- Clamping diameter: 31,8 mm
Grips
- Ergon GA3
Bells
- Knog Oi Classic
Display
- Bosch Purion 200 Display BRC3800

Seat

Saddle
- Selle Royal Essenza+ Moderate Wide
- Weight: 373 g
Seatpost
- Canyon SP0062 Supension Dropper Post
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 518 g

Light

Lights
- Sate-lite M15 Rear Brake Light with brake signal function
Lights
- Supernova Mini 2 Pro Frontlight

Accessories

Bikestands
- Atran Edge HV
Battery Charger
- Bosch 4A
Pedals
- VP-536 flat pedals
Bike Racks
- Canyon Rack with MIK HD and Ortlieb QL 3.1 system
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Quick Start Guide M172 / M174
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 180	180 - 190	≥ 190
Seat Height in mm (a)	663 - 843	713 - 893	763 - 943
Seat Tube Length in mm (b)	460	510	560
Top Tube Length in mm (c)	599	623	647
Head Tube Length in mm (d)	135	170	202
Head Tube Angle (e)	68°	68°	68°
Seat Tube Angle (f)	74°	74°	74°
Chainstay Length in mm (g)	466	466	466
Wheel Base in mm (h)	1.163	1.192	1.219
Stack in mm (i)	656	688	718
Reach in mm (j)	411	426	441
Stand-over Height in mm (k)	796	832	864
Bottom Bracket Offset in mm (l)	63	63	63

Component geometry

Detailed geometry table

Stem Length in mm	65	65	65
Handlebar Width in mm	680	680	680
Crank Length in mm	170,0	170,0	170,0
Seat Post Diameter in mm	30,9	30,9	30,9
Dropper post travel in mm	25	25	25
Seat Post Length in mm	415	415	415
Maximum Seat Post Insertion Depth in mm	260	260	260
Minimum Seat Post Insertion Depth in mm	80	80	80
Wheel Size	27.5"	27.5"	27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	120	120	120
Battery capacity	600 Wh / 800 Wh	600 Wh / 800 Wh	600 Wh / 800 Wh

Download PDF

Content is loading

Pathlite:ON 8 SUV support

View

Lumos Ultra Cycling Helmet

449,95 ZŁ

Canyon Adventure Shorts

409,95 ZŁ

-50%

Canyon Flannel Shirt

179,95 ZŁ

Original price ~~359,95 ZŁ~~

You save 180 ZŁ

Canyon Top Tube Bag Gravel/MTB

139,95 ZŁ

Canyon Midloader Universal Wide

269,95 ZŁ

Canyon Tool Capsule

58,95 ZŁ

-50%

Canyon Technical T-Shirt

89,95 ZŁ

Original price ~~179,95 ZŁ~~

You save 90 ZŁ

-50%
Weather-ready

Canyon Waterproof Cycling Pants

409,95 ZŁ

Original price ~~819,95 ZŁ~~

You save 410 ZŁ

-58%

Canyon Essential Case

58,95 ZŁ

Original price ~~139,95 ZŁ~~

You save 81 ZŁ

-51%

Canyon Women's Cycling T-Shirt

58,95 ZŁ

Original price ~~119,95 ZŁ~~

You save 61 ZŁ

Canyon Scampr Trail Cycling Shoes

719,95 ZŁ

-50%
Weather-ready

Canyon Cycling Rain Jacket

429,95 ZŁ

Original price ~~859,95 ZŁ~~

You save 430 ZŁ

CLLCTV Core Crewneck

319,95 ZŁ

-25%

Canyon Sideloader Carbon Bottle Cage

From 119,95 ZŁ

Original price ~~159,95 ZŁ~~

Save up to 40 ZŁ

Bike classification

Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The E-Bike specific information is mentioned on the separate CE marking.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

The total weight includes everything listed below, and must not exceed 200 kg. The individual maximum weights and load limits must not be exceeded under any circumstances.

Rider weight (including luggage, clothing and seat packs) must not exceed 110 kg
Rear rack load must not exceed 27 kg
Trailer weight (including its load) must not exceed 50 kg
Weight of the bike, including accessories and any additional loads
