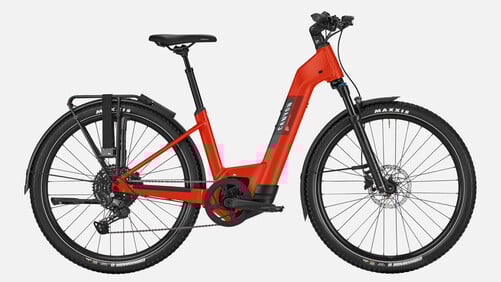

Pathlite:ON 5 750 SUV step-through
- Weight: 27.58 kg
- Front Fork Travel: 80-100 mm
-
- Colour: Outback Orange
-
Members only product. Log in here
Highlights Pathlite:ON 5 750 SUV step-through

A powerful motor and battery

Everything at your fingertips

Ride off-road with control and confidence

Racks, fenders and trailer
Frame
-
Frame
- Canyon Pathlite:ON Step-Through
- A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,280 g
-
Suspension Fork
- FS SUT XCR34 27.5 100 AIR 15X110 C74 1.5
- Axle dimension: 15x110 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Motor
- Bosch Performance Line CX
-
Battery
- Bosch PowerTube 750Wh
-
Rear Derailleur
- Shimano Deore M5100 11s
- Cage length: long
- Weight: 356 g
-
Shift Lever
- Shimano Deore M5100 11s
- Weight: 137 g
-
Cassette
- Shimano Deore M5100 11s 11-51
- Number of sprockets: 11
- Range: 11-51 11S
-
Crank
- FSA CK 220
- Number of chainrings: 1
-
Chainring
- FSA Gen4 Spider Boost 42T
-
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Brakes
-
Disc Brake
- Promax DC925
- Number of pistons: 2
-
Disc Brake
- Promax DC927
- Number of pistons: 2
-
Brake Rotor
- Promax DT-180CLA
- Size: 180 mm
- Weight: 164 g
Wheels
-
Front Wheel
- Alexrims MD25 | Promax DR850
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 905 g
-
Rear Wheel
- Alexrims MD25 | Promax DR850 SH11
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 1,139 g
-
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width: 2,25"
- Weight: 750 g
-
Thru Axle
- Canyon GP0420 Rear Thru Axle
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Iridium ST0034
- Fork steer tube diameter: 1 1/8"
-
Handlebar
- Iridium Flatbar
- Clamping diameter: 31,8 mm
- Width: 680 mm
- Rise: 5 mm
-
Grips
- Ergon GA3 mini-wing
-
Bells
- Knog Oi Classic
Seat
-
Saddle
- SR Royal Essenza+
- Width: 225 mm
- Gender: Unisex
- Weight: 561 g
-
Seatpost
- SP HL C255 400 30,9
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 280 g
-
Seat Clamp
- Canyon GP0170-01 Seatclamp
Light
-
Lights
- Supernova E3 Tail Light 2
-
Lights
- Büchel Shiny 40 LED Front Light
Accessories
-
Battery Charger
- Bosch 4A
-
Pedals
- VP-536 f
-
Bike Racks
- Aluminium Fenders with Canyon Rack
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Drybag
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- QSG 015-V02 M140 141 PTL[ON]
-
Manuals and Accessories
- QSG 015-V02 M140 141 PTL[ON]
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 170 | 170 - 180 | ≥ 180 |
---|---|---|---|
Seat Height in mm
(a)
|
463 - 743 | 508 - 788 | 553 - 833 |
Seat Tube Length in mm
(b)
|
385 | 430 | 475 |
Top Tube Length in mm
(c)
|
565 | 598 | 625 |
Head Tube Length in mm
(d)
|
111 | 137 | 164 |
Head Tube Angle
(e)
|
68,5° | 68,5° | 68,5° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
460 | 460 | 460 |
Wheel Base in mm
(h)
|
1.103 | 1.138 | 1.168 |
Stack in mm
(i)
|
625 | 650 | 675 |
Reach in mm
(j)
|
380 | 405 | 425 |
Stand-over Height in mm
(k)
|
450 | 450 | 450 |
Bottom Bracket Offset in mm
(l)
|
65 | 65 | 65 |
Spacer in mm
|
10,0 | 10,0 | 10,0 |
---|---|---|---|
Stem Length in mm
|
80 | 80 | 80 |
Handlebar Width in mm
|
680 | 680 | 680 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 |
Seat Post Length in mm
|
400 | 400 | 400 |
Maximum Seat Post Insertion Depth in mm
|
370 | 370 | 370 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 |
Wheel Size
|
27.5" | 27.5" | 27.5" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
80 | 100 | 100 |
Battery capacity
|
750 Wh | 750 Wh | 750 Wh |
Pathlite:ON 5 750 SUV step-through support
Other riders also bought
Bike classification
Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
