Spectral CF 7
-
-14%
- Front Fork Travel: 150 mm
-
Weight:
15.26 kg
Weight is based on a size M frame.
-
Colour: Stealth
-
Colour: Barely Olive
-
Members only product. Log in here
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more -
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Highlights Spectral CF 7
Complete control: K.I.S.
Your K.I.S. setup
Do-it-all DNA
Shaped to shred
Next generation carbon chassis
Internal downtube storage

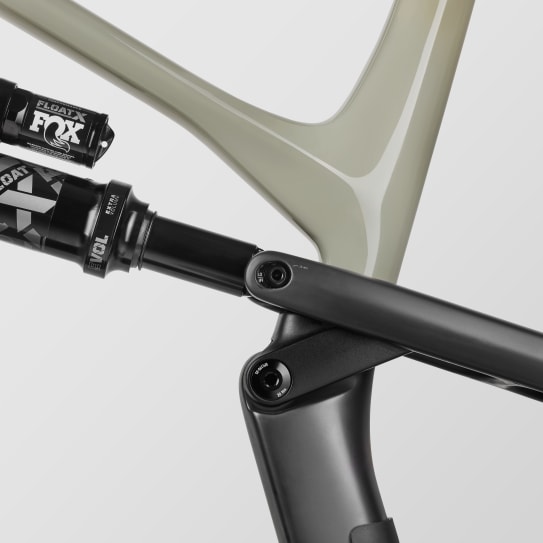

Flip chip to flip wheelsize

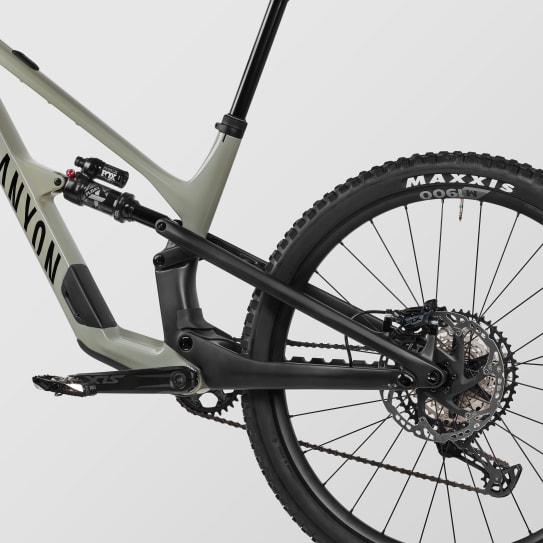

Trail taming kinematics
Maintenance made easy
Adjustable Geometry
Frame
-
Frame
- Canyon Spectral CF
- Full-carbon frame with optimised stiffness and compliance. Convertable wheelsize and geometry adjustment. Category 4 strength.
-
Axle dimension 12x148 mm
-
Material Carbon (CF)
-
Weight 1,620 g
-
Rear Shock
- FOX X Performance 2-Position
-
Weight 250 g
-
Suspension Fork
- FOX 36 Rhythm
-
Axle dimension 15x110 mm
-
Stanchion Diameter 36 mm
-
Travel 150 mm
-
Fork steer tube diameter 1 1/8" - 1,5"
-
Offset 44 mm
-
Weight 980 g
-
Seatpost Clamp
- Canyon GP0446-01
Drivetrain
-
Rear Derailleur
- Shimano SLX 12s
-
Cage length long
-
Weight 310 g
-
Chainguard
- Canyon EP1266-01 ISCG05 Plate
-
Chainguard
- Canyon GP0293-02
-
Shift Lever
- Shimano Deore SLX M7100
-
Weight 143 g
-
Cassette
- Shimano Deore XT CS-M8100
-
Number of sprockets 12
-
Range 10-51 12S
-
Crank
- Shimano Deore SLX M7120
-
Number of chainrings 1
-
Bottom bracket
- Token TK878EX
-
Bottom bracket standard BSA 68/73
-
Weight 98 g
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano SLX M7120
-
Number of pistons 4
-
Disc Brake
- Shimano SLX Brakes
-
Number of pistons 4
-
Brake Rotor
- Shimano RT76
-
Size 203 mm
-
Weight 205 g
Wheels
-
Front Wheel
- DT Swiss M1900
-
Axle dimension 15x110 mm
-
Rotor mount IS 6-bolt
-
Rim height 29 mm
-
Inner width 30 mm
-
Rim material Aluminium
-
Weight 960 g
-
Rear Wheel
- DT Swiss M1900
-
Axle dimension 12x148 mm
-
Rotor mount IS 6-bolt
-
Rim height 29 mm
-
Inner width 30 mm
-
Rim material Aluminium
-
Weight 1,120 g
-
Tyre
- Maxxis Minion DHR II Exo
-
Width 2,4"
-
Weight 1,035 g
-
Tyre
- Maxxis Minion DHR II Exo+
-
Width 2,4"
-
Weight 1,112 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
-
Axle dimension 12x148 mm
Cockpit
-
Stem
- Canyon G5
-
Modern design, extreme durability Canyon G5 components were developed by our pros on the world's toughest trails.
-
Fork steer tube diameter 1 1/8"
-
Clamping diameter 31,8 mm
-
Material Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
-
Clamping diameter 31,8 mm
-
Rise 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- Ergon SM10 Enduro
-
Gender Unisex
-
Weight 314 g
-
Seatpost
- Canyon SP0070-01
- Air cartridge. Cable actuated.
-
Travel Dependent on frame size (see component geometry table.)
-
Seatpost diameter 34,9 mm
-
Material Aluminium (AL)
-
Weight 654 g
Light
-
Lights
- Reflector Set
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- Smallbox
|
Body Height in cm
|
≤ 168 | 163 - 177 | 172 - 185 | 180 - 194 | ≥ 189 |
|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
590 - 750 | 635 - 785 | 680 - 830 | 710 - 860 | 750 - 900 |
|
Seat Tube Length in mm
(b)
|
375 | 400 | 415 | 445 | 455 |
|
Top Tube Length in mm
(c)
|
572 | 599 | 626 | 653 | 680 |
|
Head Tube Length in mm
(d)
|
100 | 110 | 120 | 130 | 140 |
|
Head Tube Angle
(e)
|
64° | 64° | 64° | 64° | 64° |
|
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° | 76,5° |
|
Chainstay Length in mm
| Mullet
(g)
|
429 | 429 | 429 | 429 | 429 |
|
Chainstay Length in mm
| 29"
(g)
|
437 | 437 | 437 | 437 | |
|
Wheel Base in mm
| Mullet
(h)
|
1.184 | 1.213 | 1.243 | 1.272 | 1.301 |
|
Wheel Base in mm
| 29"
(h)
|
1.221 | 1.251 | 1.280 | 1.309 | |
|
Stack in mm
(i)
|
612 | 621 | 630 | 639 | 648 |
|
Reach in mm
(j)
|
425 | 450 | 475 | 500 | 525 |
|
Stand-over Height in mm
(k)
|
738 | 752 | 747 | 756 | 762 |
|
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 | 36 |
|
Spacer in mm
|
30 | 30 | 30 | 30 | 30 |
|---|---|---|---|---|---|
|
Stem Length in mm
|
40 | 40 | 40 | 40 | 40 |
|
Handlebar Width in mm
|
760 | 760 | 780 | 780 | 780 |
|
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 | 170,0 |
|
Chainring Size
|
32 | 32 | 32 | 32 | 32 |
|
Seat Post Diameter in mm
|
34,9 | 34,9 | 34,9 | 34,9 | 34,9 |
|
Dropper post travel in mm
|
150 | 170 | 200 | 200 | 230 |
|
Seat Post Length in mm
|
417 | 457 | 517 | 517 | 587 |
|
Maximum Seat Post Insertion Depth in mm
|
250 | 270 | 300 | 300 | 340 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 120 | 150 | 150 | 190 |
|
Wheel Size
| Mullet
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
|
Wheel Size
| 29"
|
29" | 29" | 29" | 29" | |
|
Disc Size in mm
|
203 / 180 | 203 / 180 | 203 / 203 | 203 / 203 | 203 / 203 |
|
Front Fork Travel in mm
|
150 | 150 | 150 | 150 | 150 |
|
Rear Suspension Travel in mm
|
140 | 140 | 140 | 140 | 140 |
|
Fitting Length
|
210X55 | 210X55 | 210X55 | 210X55 | 210X55 |
|
Rim height in mm
|
29 | 29 | 29 | 29 | 29 |
Mountain Bike of the Year
1st Place, Mountain Bike Of The Year
Spectral CF 7 support
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
-
