Available in
Spectral CF 7.0 ^New - 3,049.00 US$

This bike has been developed to provide the best handling, control and capability to help you tame any trail, from endless singletrack down the valley to rigorous climbs.
Available in
Spectral AL 6.0 ^New - 2,549.00 US$

It’s safe to say that the writers over at Mountainbike Magazin were impressed with the test-winning (07/18) Spectral. Their take: "The Spectral is simply unmatched in its class […]. Handling and suspension are superb throughout the whole range.”
Available in
Spectral AL 5.0 ^New - 2,149.00 US$

The Spectral gives you the confidence to attack any trail. It opens up a world of riding, from fast flowing singletrack to adventures off the beaten path.
Available in
Spectral CF 8.0 ^New - 3,599.00 US$

A highly capable trail bike with a carbon main frame and aluminium swingarm. The Triple Phase Kinematics, modern geometry and top equipment choices make it a real contender on tricky, demanding descents.
Available in
Spectral CF 9.0 ^New - 4,399.00 US$

With modern geometry, 27.5” wheels and 160 mm front and 150 mm rear travel using our Triple Phase Kinematics, the Spectral CF 9.0 provides all the control, handling and traction you need to tame any trail.
Available in
Spectral WMN AL 6.0 ^New - 2,149.00 US$

The women’s version of the Spectral benefits from an updated modern geometry and full-suspension Triple Phase Kinematics, so you can push your limits on your favourite trails.
Available in
Spectral WMN CF 7.0 ^New - 2,849.00 US$

Designed from scratch for female mountain bikers, the Spectral WMN CF 7.0 combines progressive geometry with balanced suspension tuned for lighter riders, and a size range starting from XS to ensure the perfect fit.
Available in
Spectral WMN CF 8.0 ^New - 3,599.00 US$

Ride every trail like you’ve known it your whole life. The geometry has been optimised for women riders to provide direct and agile handling on any surface – this versatile, high-end bike is ready for any challenge.
Available in
Spectral WMN CFR 9.0 ^New - 4,899.00 US$

With the best possible components, this flagship bike shreds the toughest trails – and at only just over 12 kg, climbing the steepest ascents has never been easier.
Available in
Spectral CFR 9.0 SL - 5,549.00 US$

This is a bike that simply exceeds all expectations of the ambitious trail rider. Light for the steepest and longest climbs, yet capable of handling the most technical descents. It’s a trail weapon without rival.
Available in
Spectral CFR 9.0 LTD - 7,099.00 US$

With its full carbon frame, the Spectral CFR 9.0 LTD is designed for the most demanding trail rider who doesn’t like to make compromises.
Available in
Spectral WMN AL 4.0 - 1,899.00 US$

The women’s version of the Spectral benefits from the same updated modern geometry and Triple Phase Kinematics, with 150 mm front and 140 mm rear travel, letting you push your limits on your favourite trails.
Available in
Spectral CFR Frameset - 2,549.00 US$

Build the bike of your dreams with the Spectral CFR Frameset. With a full carbon fibre frame and modern geometry, this frameset is the foundation of a trail ripping machine.

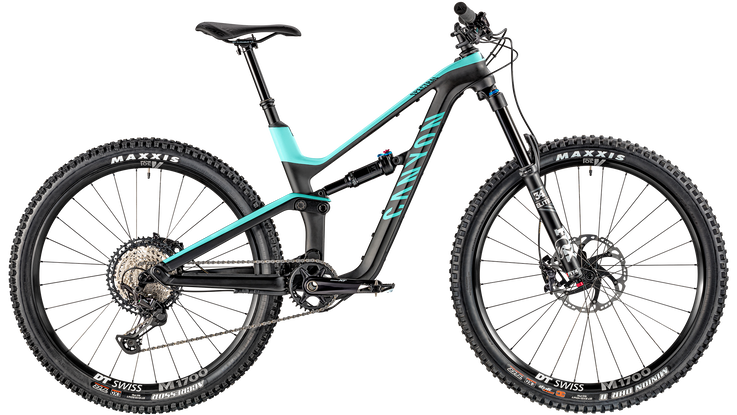

Spectral WMN CF 8.0 ^New

Front Fork Travel

150 mm
Material

Carbon (CF)
Weight

13.40 kg

Spectral WMN CF 8.0 - Ride every trail like you’ve known it your whole life. The geometry has been optimised for women riders to provide direct and agile handling on any surface – this versatile, high-end bike is ready for any challenge.

Not included:

Shipping & Packaging
VAT
Duty fees

Awards and reviews

The Spectral WMN CF 8.0 features a carbon main frame and aluminium swingarm, progressive geometry, new suspension kinematics and a weight of 13 kg to help you tackle the toughest trails with the utmost confidence.

See components

See geometry & dimensions

Spectral WMN CF 8.0 Gallery

The highlights of this component set

To deliver the best experience possible, the Spectral WMN CF 8.0 is equipped with FOX suspension, Shimano brakes, DT Swiss wheels, and Maxxis tyres.

View all components

Suspension Fork

FOX 34 Performance Elite

With 150 mm of travel, this fork is ready for advanced trail riding. Outstanding sensitivity gives you more control on descents, and when it’s time to climb, lock out the fork for maximum pedalling efficiency. With 3 compression modes, you can always adjust the fork based on terrain and gradient.
Rear Shock

FOX FLOAT DPX2 Performance Elite

The FLOAT DPX2 shock works perfectly with the Spectral’s Canyon-engineered Triple Phase Kinematics. This setup is efficient on the climbs, with increased damping force reducing rear triangle movement. And when it’s time to descend, this shock comes into its own thanks to its exceptional sensitivity.
Wheel

DT Swiss M 1700

A tough 27.5“ wheelset with light, robust hubs. We’ve combined them with chunky Maxxis DHR II tyres specially designed for wide rims, so you get maximum traction on technical terrain. Sticky MaxxGrip rubber compound on the front wheel for pinpoint handling.
Disc Brake

Shimano Deore XT M8120

These reliable 4-piston brakes offer consistent stopping performance in all conditions, even on long descents. Also featuring easy, tool-free reach adjustment.

All components
Frame
Frame

Canyon Spectral WMN CF

Material: Carbon

Travel: 140 mm

Axle Dimension: 12 x 148 mm

Brake Mount: Post Mount 180

Rear Shock

FOX FLOAT DPX2 Performance Elite

Length: 210 x 55 mm

Suspension Fork

FOX 34 Performance Elite

Travel: 150 mm

Technology: FIT4

Axle Dimension: 15 x 110 mm
Drivetrain
Rear Derailleur

Shimano Deore XT M8100 SGS

Shift Lever

Shimano Deore XT M8100 12s

Clamp: I-Spec EV

Cassette

Shimano Deore XT M810012 10-51 12s

Crank

Shimano Deore XT M8100 32T

Bottom bracket

Shimano Pressfit BB71
Brakes
Disc Brake

Shimano Deore XT M8120

Disc Brake

Shimano Deore XT M8120

Brake Rotor

Shimano RT86

Disc Mount: 6-Hole

Brake Rotor

Shimano RT86

Disc Mount: 6-Hole
Wheels
Wheel

DT Swiss M 1700

Rim Material: Aluminium

Inner Width: 30 mm

Weight: 866 g

Wheel

DT Swiss M 1700 SH12

Rim Material: Aluminium

Inner Width: 30 mm

Freewheel: Ratchet

Weight: 931 g

Tyre

MAXXIS Minion DHR II 2.4''

Casing: Exo

Compound: 3C Maxx Grip

Technology: Tubeless ready

Tyre

"MAXXIS Aggressor 2.5"""

Thru Axle

Canyon Quixle

Material: Aluminium

Built-in dimension: 12 x 148 mm

Lever: Integrated
Cockpit
Stem

Canyon G5

Handlebar

Canyon G5 Riserbar

Material: Aluminium

Rise: 20 mm

Grips

Canyon G5
Seat
Saddle

SGD Allure

Seatpost

FOX Transfer Performance Elite
Accessories
Pedals

None included

Manuals and Accessories

Canyon Smallbox

Content: Manual, Torque Wrench incl. Bit Set, Shock Pump, Assembly Paste

Content is loading

Geometry & dimensions

Detailed geometry table
		XS	S	M
	Body Height	< 166 cm	166 - 175 cm	> 175 cm
a	Seat Height	619 - 739 mm	659 - 779 mm	700 - 845 mm
b	Seat Tube Length	385 mm	425 mm	440 mm
c	Top Tube Length	552 mm	569 mm	597 mm
d	Head Tube Length	85 mm	84 mm	109 mm
e	Head Tube Angle	65,9°	65,9°	66°
f	Seat Tube Angle	73,1°	73,4°	74°
g	Chainstay Length	430 mm	430 mm	430 mm
h	Wheel Base	1.101 mm	1.122 mm	1.160 mm
i	Stack	581 mm	581 mm	600 mm
j	Reach	375 mm	396 mm	425 mm
	Stand-over Height	713 mm	717 mm	741 mm
	Bottom Bracket Offset	22 mm	23 mm	19 mm
	Spacer	10,0 mm	10,0 mm	10,0 mm
	Stem Length	40 mm	40 mm	50 mm
	Handlebar Width	740 mm	740 mm	760 mm
	Crank Length	165,0 mm	165,0 mm	170,0 mm
	Chainring Size	32	32	32
	Seat Post Diameter	30,9 mm	30,9 mm	30,9 mm
	Seat Post Length	406 mm	406 mm	457 mm
	Maximum Seat Post Insertion Depth	220 mm	220 mm	245 mm
	Seat Post Insertion Depth	100 mm	100 mm	100 mm
	Wheel Size	27,5"	27,5"	27,5"
	Disc Size	203 mm	203 mm	203 mm
	Front Fork Travel	150 mm	150 mm	150 mm
	Rear Suspension Travel	140 mm	140 mm	140 mm

All Spectral models

13 items

Sort

Availability

Frame material

Price

Series

Size

Color

Rider

Year

Rear Derailleur Brand

Rear Derailleur Model

Spectral CF 7.0 ^New 3,049.00 US$
Spectral AL 6.0 ^New 2,549.00 US$
Spectral AL 5.0 ^New 2,149.00 US$
Spectral CF 8.0 ^New 3,599.00 US$
Spectral CF 9.0 ^New 4,399.00 US$
Spectral WMN AL 6.0 ^New 2,149.00 US$
Spectral WMN CF 7.0 ^New 2,849.00 US$
Spectral WMN CF 8.0 ^New 3,599.00 US$
Spectral WMN CFR 9.0 ^New 4,899.00 US$
Spectral CFR 9.0 SL 5,549.00 US$
Spectral CFR 9.0 LTD 7,099.00 US$
Spectral WMN AL 4.0 1,899.00 US$
Spectral CFR Frameset 2,549.00 US$

This category includes all bikes from categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.

We’re in Control

Our business model gives us the advantage of knowing exactly where our products come from, how they are made and what they are capable of. Canyon products are exclusively available at Canyon.com, so you can trust the quality you are getting.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
