Road bike geometry explained: Your ultimate guide to frame design

A bike’s geometry ultimately determines both its size and how it handles on the road. Bike geometry can be a bit complicated, but we’ll try to make it as easy to understand as possible, while comparing the different types of bikes Canyon offers, from race bicycles to endurance machines to cyclocross bikes.

On one end of the spectrum, you have racing bikes. Often described as aggressive, they're twitchy and highly responsive. Your body position on a racing bike will be lower and longer, which can challenge your flexibility and comfort over longer distances.

The tubes used to build racing bikes are often aerodynamic and they're designed to be stiff, so that power transfer is high. Put simply, these road bikes are designed to be fast, efficient, and first over the line.

At the other end of the spectrum are endurance road bikes. With their slightly more upright, relaxed riding position, they’re smooth and comfortable on longer rides. Though you'll still be able to chase your friends on the road, an endurance bike is less aerodynamic and the bike won't be quite as responsive as a racing bike.

The size of the frame determines how they handle; bigger frames handle differently to smaller frames. Frame size also subtly affects geometry as well. Due to longer tubes, a larger bike frame may be slightly less rigid than a smaller frame. While this means a less-efficient power transfer, that small flex increases comfort over longer distances.

Smaller frames also leave less room around the front wheel, so certain adjustments to the front end are needed to maintain consistent riding dynamics across all sizes. These changes make sure the bike still steers naturally and feels predictable on the road or gravel, regardless of size.

Perhaps the two most important numbers on any bike's geometry chart are stack and reach. Sizing between bike models and manufacturers can differ despite two bikes being the same size. A Canyon Aeroad in a size medium will feel different to a medium Canyon Endurace because their stack and reach are different.

For years, stack and reach have been the go-to numbers for comparing frame fit. Stack measures the vertical height from the bottom bracket to the top of the head tube, while reach measures the horizontal distance. Together, they give a rough idea of how stretched out or upright a bike will feel. Useful? Yes. Complete? Not quite.

Stack and reach tell you where the frame ends – not where you actually hold the bars. And that’s the really important part. That’s why two bikes with similar stack and reach measurements can still feel totally different once you actually start riding them.

Is stack or reach more important? It depends on the type of riding you do. Reach tends to matter more for aggressive, race-oriented riding, as it affects how stretched and aerodynamic your position is. For endurance, gravel, or relaxed riding, stack is often more important, offering a higher front end for greater comfort on long rides.

To give you a true sense of real-world fit, we’ve created effective stack and reach – measurements based on where your hands actually grip the bars. By starting from your real contact point, they give a clearer picture of how the bike will feel when you’re riding, not just how the frame is shaped.

Effective stack and reach factor in the cockpit shape, stem length, and the spacers the bike ships with. The result: numbers that translate directly into how the bike feels when you ride it.

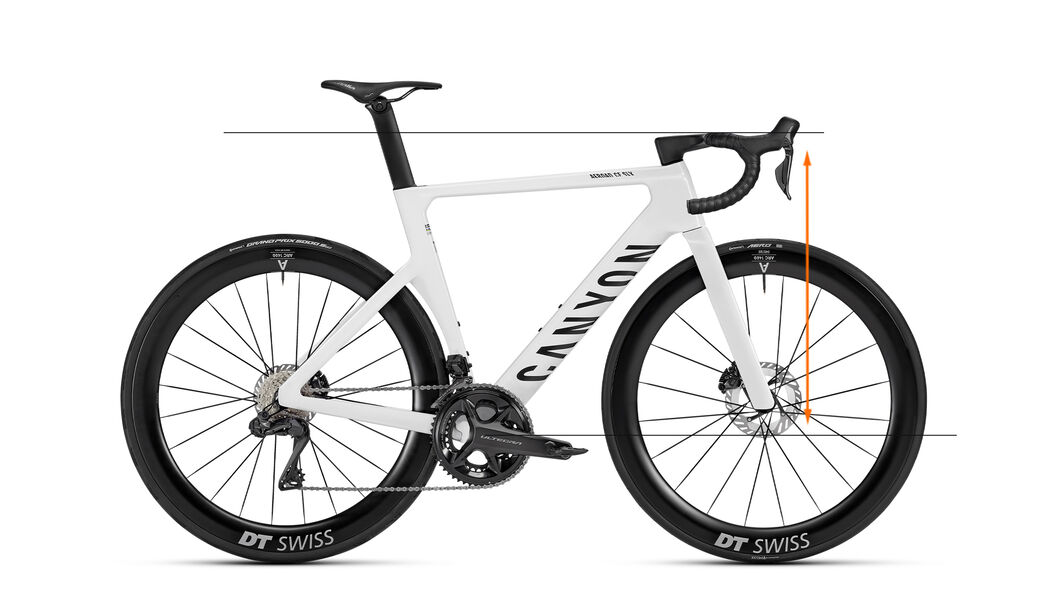

Effective stack is the vertical distance between the bottom bracket and your hood position, essentially how high the front of the bike feels when your hands are on the bars. You notice it straight away: a higher effective stack puts you in a more upright, relaxed posture, while a lower one drops your torso for a flatter, faster position.

When comparing road bikes, more race-focused bikes sit lower, like the Aeroad at 642 mm (size M), putting you in a properly low, slammed aero position. Comfort-focused endurance bikes sit higher, with the Endurace at 675 mm (size M) lifting the front end for a more relaxed fit for longer rides.

Effective reach is the horizontal distance between the bottom bracket and your hood position. It tells you how far you reach to the bars and how stretched or compact your riding position feels. A longer effective reach puts you in a more extended posture, while a shorter one brings the bars closer for a steadier, more upright feel.

When comparing road bikes, more race-focused setups run a longer reach, like the Aeroad at 563 mm (size M), giving you that flat, fast position riders look for when chasing maximum aero. Comfort-focused bikes sit shorter, with the Endurace CFR and CF SLX at 547 mm (size M), bringing the front end in slightly for a more upright all-day fit.

Although effective stack and reach may be the two most important measurements to take into account when buying or fitting a bike, there are several other geometry measurements to consider as well.

Standover height is important when purchasing your ideal size bike because you need to be able to put two feet on the ground when stopped. (It’s not going to feel comfortable if you’re on tip-toes at every stoplight!) To get the road bike’s standover height, measure from the midpoint of the top tube to the ground.

The distance between the center of the bottom bracket and the top of the seat tube, seat-tube length indicates how much of your seat post will be exposed when setting the bike up.

Oddly enough, the amount of seatpost exposed actually affects your bike’s ride. Very little seatpost exposed means the road bike generally feels stiffer to ride. If you have a lot of seatpost exposure, you’ll notice more flex and a more comfortable ride.

The head tube angle – the angle at which the front wheel sits relative to your head tube – helps determine a road bike's stability. If the front wheel of a bike sits further forward, then the wheelbase will be longer, and the bike will usually be much more stable at high speeds.

This measurement is one of the more important aspects of mountain bike geometry.

The seat tube angle is measured from the horizontal to the tube. This angle dictates the degree to which you ride over the pedals and bottom bracket. A steeper seat tube angle means you ride more over the pedals, which is generally preferred by road racers, time-trialists and triathletes.

It encourages a lower position on the road bike and prevents stress on the thigh muscles over long periods. A slacker seat tube angle is a bit less efficient, but more comfortable.

Canyon road bikes use a balanced seat angle of 73.5°, which puts you in a balanced position in the center of the bike – great both on the flats and on climbs. In contrast, the Canyon Speedmax triathlon bike has an extremely steep 80.5° seat angle to put you in a very aggressive aero position over or almost in front of the bottom bracket.

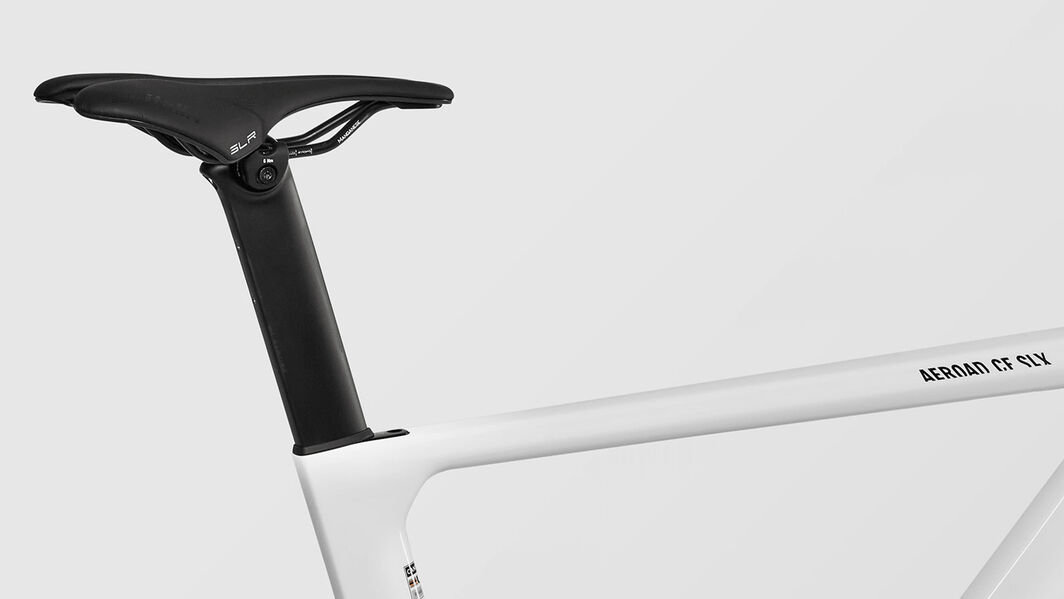

Seat height is one of the first checks when it comes to sizing. If you cannot set the saddle where you need it, the bike will never feel right. Your available range depends on the frame’s seat tube and the seatpost’s design, which together decide how much room you have to dial in a comfortable, efficient pedalling position.

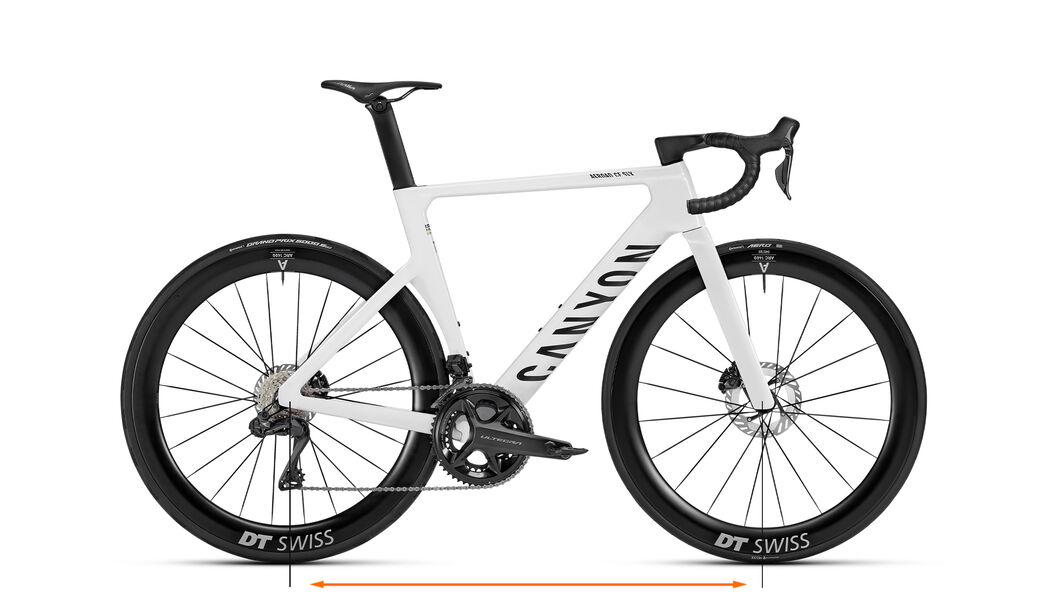

The wheelbase is the distance between the hubs of both wheels. The longer the wheelbase, the more stable the ride. For example, with a wheelbase of 1003 mm (size L), the Canyon Ultimate produces a snappier, more responsive ride than the Canyon Grizl gravel bike, which has a much longer wheelbase of 1050 mm (size L) to boost stability over rough terrain.

Chainstay length is closely linked to the overall wheelbase of a road bike. Race bikes typically feature shorter chainstays to keep the handling agile and reactive. The Endurace, which prizes comfort and stability on the road, has a slightly longer chainstay, 415 mm (size L) than the Ultimate’s 413 mm; 2 mm difference may seem like a minute amount, but you can feel the difference on the bike.

The bottom bracket offset is the distance between the horizontal line of the bottom bracket and the horizontal line between the wheel hubs. Sometimes referred to as the “bottom bracket drop,” this particular measurement helps determine a bike's stability. A bigger offset means the bike has a lower center of gravity.

For example, cyclocross bikes, like the Canyon Inflite, have a lower offset number than an Canyon Aeroad because of the obstacles it must face on the course.

Tyre clearance should be an important consideration for anyone buying a road bike, telling you not only which tires are compatible with your bike's frame and fork, but also giving you an insight into its capabilities.

Years ago, most experts thought the skinnier the road bike tire, the better. Many pros rode on 19 mm skinnies for their entire career. But between research pointing toward wider tires being better and technological advancements like disc brakes, most road bikes come with 25 mm or even 28 mm tires standard.

A bike with wider tire clearance will be suitable for more off-road pursuits compared to one with narrower clearance. Wider tires increase comfort, but also increase the rolling resistance, so you'll need to find your ideal balance.

Top tube length used to be one of the main ways to compare bike fit, but it matters far less on modern road and gravel bikes. Most frames no longer use a perfectly horizontal top tube, which makes the measurement harder to interpret, and it doesn’t reflect where your hands or upper body actually sit when you are riding.

Because of this, top tube length has largely been replaced by effective stack and effective reach as the most reliable indicators of real-world fit and position.

Head tube length feeds directly into a bike’s stack measurement. A shorter head tube lowers the front of the bike, giving you a flatter, more tucked position, while a longer head tube raises the front end for a more upright, relaxed posture.

Just like top tube length, head tube length matters far less on modern bikes when it comes to choosing the right size. Because it only describes the frame and not your true hand position, effective stack now provides a much clearer and more reliable picture of how high the front of the bike will feel when you are actually riding.

Some parts of a bike’s handling come from measurements you will not find on a standard geometry chart, but they still have a big influence on how the bike feels when you ride it.

Fork rake is the distance between the fork blades and the steering axis, measured at the front axle. More rake pushes the front wheel further forward and gives the steering a quicker, lighter touch. Less rake keeps the wheel closer in, increasing trail (see below) and adding stability when the speed picks up. It’s one of the key ways designers tune a bike to feel sharper or more settled at the bars.

Trail is the distance between where your front tyre touches the ground and where the steering axis would meet the ground if it continued downward. In simple terms, it shows how far the contact patch “follows” behind the steering axis. More trail gives the bike a calmer, more planted feel at speed. Less trail makes the front end quicker and more agile. Together with fork rake, it sets the balance between stability and a more lively, responsive ride.

If this seems overwhelming to you, you’re not alone. Let’s break down some of the numbers and definitions by road bike types.

When looking at the Ultimate and Aeroad SLX 8 Ultegra Di2 models in a size medium, the numbers are strikingly similar. Both the Aeroad and Ultimate have the same stack height (560mm), reach (393mm), chainstays (410) and wheelbase (988). The Aeroad has a slightly taller standover height (810mm) and longer top tube length (559mm) versus the Ultimate (803mm and 555mm, respectively).

What does this mean in real-world terms? Previous versions of the Aeroad had a much more aggressive geometry to take full advantage of its deep, aerodynamic tubes. But after getting feedback from the pro peloton, including Tour de France green jersey winner Jasper Phillipsen, Canyon relaxed the rider positioning, opting for the Pro Sport geometry of the Ultimate. The Aeroad’s longer top tube means riders will be stretched out ever so slightly more, putting them in a bit more of an aerodynamic pedaling position.

Compared to the race bikes, the Endurace’s geometry is more relaxed, but still fast. The Endurace (size M) offers a stack height of 590 mm, 30mm higher than the Ultimate and Aeroad, while the reach (378 mm) is shorter, making for a more relaxed ride. The longer chainstays (415mm) and wheelbase (993mm) of the Endurace add to its stability.

This is a great road bike for beginners and experienced riders alike.

Both the Aeroad and Speedmax were designed to slice through the wind and are among the fastest bikes in their categories. But the numbers show just how different the bikes are.

The size medium Aeroad’s stack height (560 mm), reach (393 mm), chainstays (410 mm) and wheelbase (988 mm) create a bike that’s fast and nimble, while still maintaining comfort over long distances. By comparison, the Speedmax’s stack (489 mm), reach (438 mm), chainstay (420 mm), and wheelbase (1,014 mm) stretches the rider out and provides stability at speed. This is not the bike you’re taking on a weekend ride with friends; this is the bike you ride when you want to dominate your local triathlon or time trial race.

A cyclocross bike is a truly unique beast – designed to be an aggressive race bike, but with the stability of an off-road bike. The Inflite’s stack height (572 mm) falls between the Endurace and Ultimate, while the reach (393 mm) matches the Aeroad. The chainstays (425 mm) and wheelbase (1,018 mm) are actually longer than the Speedmax.

While this bike is designed to conquer cyclocross courses, you could also take it on a gravel ride or on a fast-paced road ride with slick tires.

So what road bike geometry will be the best option for you? It all depends on your typical riding style and goals. If speed and dominating your local crit series is your priority, the aggressive geometry of the Aeroad or Ultimate should serve you well. If you prefer long-distance rides in relative comfort, the relaxed Endurace is your bike. The super-aggressive and stretched-out geometry of the Speedmax will help make your tri dreams come true. If you’re looking for a versatile ride that’s stable off-road, then you should move the Inflite to your virtual shopping cart.

For a deeper dive into Canyon’s road bike lineup, head over to our road bike buying guide.

To delve into the geometries of each Canyon model, check out our bike comparison tool. Just hit the link to the tool at the bottom of the page, and you can choose three models to analyse geometry, components, and more.

And that’s a wrap. When you understand the geometry, you don’t just pick a bike — you choose the ride experience that suits you best.
