Spectral:ON CF 8
-
- Colour: Green Vastness
-
Members only product. Log in here
Highlights Spectral:ON CF 8

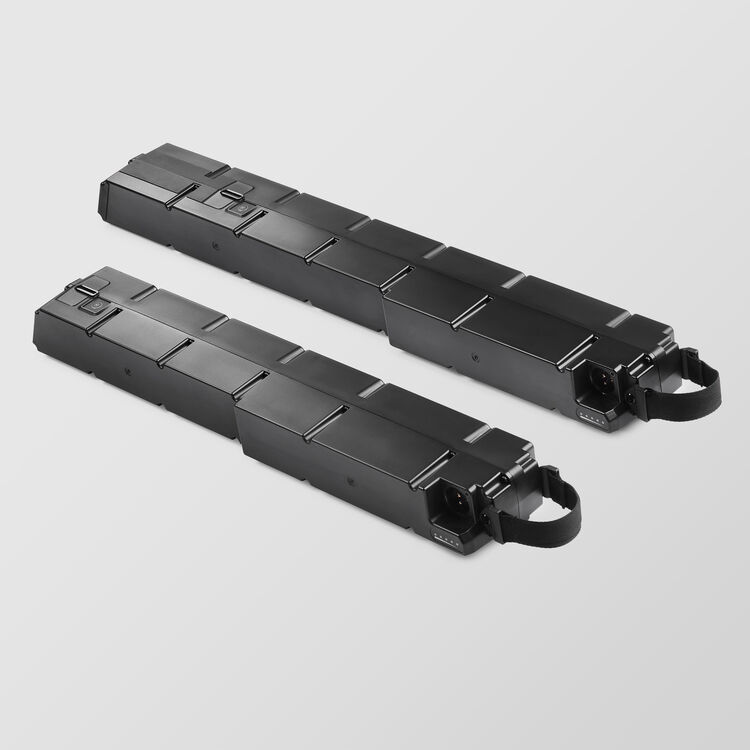

Strong batteries for hours of trail fun

A motor built for anything

Control your ride
Frame
-
Frame
- Canyon Spectral:ON CF
- Carbon frame with integrated battery. Category: 4e.
- Material: Carbon (CF)
- Weight: 1,000 g
-
Rear Shock
- Fox DPS Performance Evolution
- Weight: 506 g
-
Suspension Fork
- Fox 36 Rhythm Grip
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Battery
- CANYON BT009
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Chainguard
- Canyon Chainguide M091/M129
-
Shift Lever
- Shimano Deore SLX M7100
- Weight: 143 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano SLX M7120
-
Disc Brake
- Shimano SLX M7120
- Number of pistons: 2
-
Brake Rotor
- Hayes D-Series
- Size: 203 mm
- Weight: 188 g
Wheels
-
Front Wheel
- SUNringlé Düroc SD37 Comp 29"
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 1,118 g
-
Rear Wheel
- SunRingle Duroc SD42 12x148
- Rotor mount: IS 6-bolt
- Weight: 1,306 g
-
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
-
Display
- Shimano SC-E7000
-
Modeswitch
- Shimano STEPS power mode switch
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
-
Seat Clamp
- Canyon GP0279-01 Seatclamp
Accessories
-
Battery Charger
- CANYON CHARGER
-
Battery Charger
- CANYON CHARGER
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- QSG 027-V02 M091/M129 SPT[ON]
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
647 - 756 | 693 - 823 | 733 - 853 | 753 - 873 |
Seat Tube Length in mm
(b)
|
420 | 440 | 460 | 480 |
Top Tube Length in mm
(c)
|
589 | 613 | 637 | 663 |
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
65,5° | 65,5° | 65,5° | 65,5° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.194 | 1.223 | 1.252 | 1.281 |
Stack in mm
(i)
|
634 | 643 | 652 | 661 |
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
Stand-over Height in mm
(k)
|
809 | 814 | 820 | 825 |
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 170 | 170 |
Seat Post Length in mm
|
378 | 425 | 465 | 465 |
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 240 | 240 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 120 | 120 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
150 | 150 | 150 | 150 |
Rear Suspension Travel in mm
|
155 | 155 | 155 | 155 |
Battery capacity
|
800 Wh | 800 Wh | 800 Wh | 800 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Spectral:ON CF 8 support
Bike classification
This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
