Neuron:ON 7
-
- Colour: Washed Denim
- Colour: Burnt Clay
-
Members only product. Log in here
Highlights Neuron:ON 7

Shimano EP8

USB-C

Triple Phase Suspension
Frame
-
Frame
- Canyon Neuron:ON

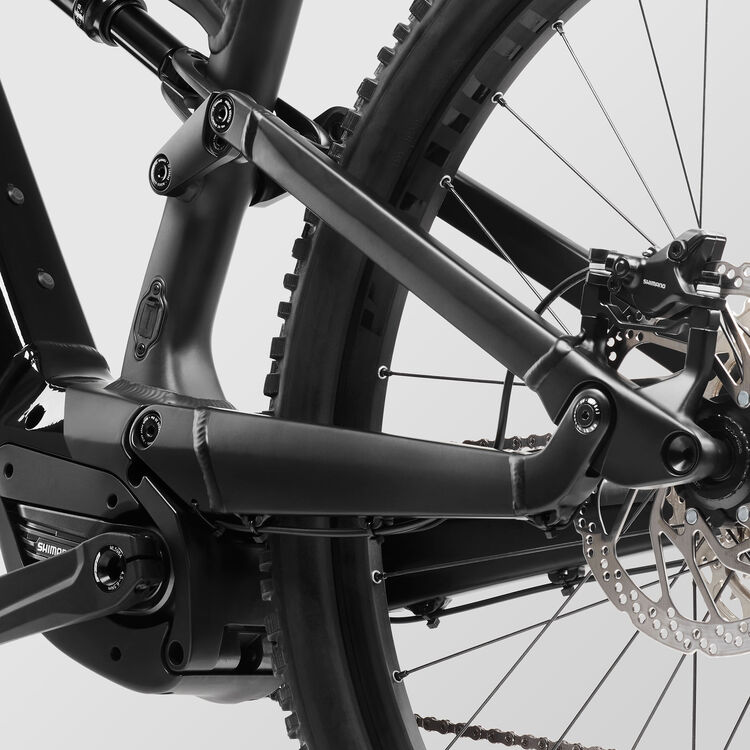

- Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors).
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,290 g
-
Rear Shock

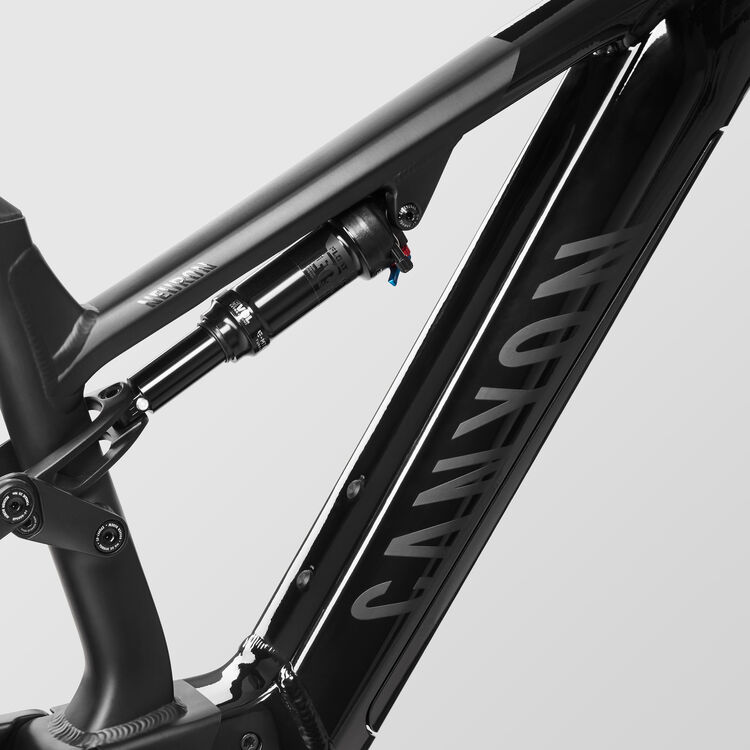

- FOX FLOAT DPS Performance
- Weight: 282 g
-
Suspension Fork

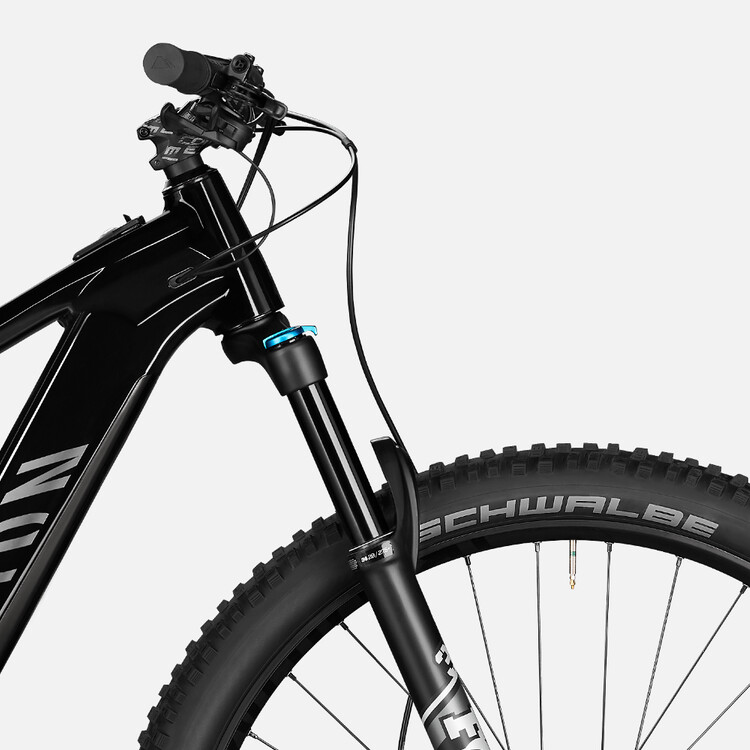

- FOX 34 Rhythm Grip
- Stanchion Diameter: 34 mm
- Travel: 130 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"
Drivetrain
-
Motor

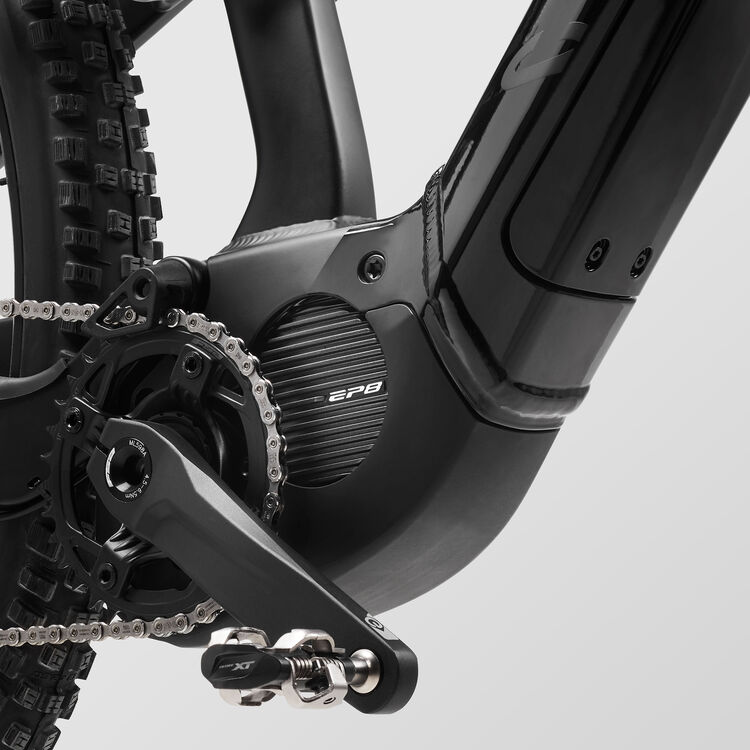

- Shimano Steps EP8 Motor
-
Battery
- Shimano BT-E8036
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Chainguard
- Canyon Chainguide EP1001-02
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- FSA CK 752 E-MTB
- Number of chainrings: 1
-
Chainring
- FSA Megatooth Chainring 104BCD
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano MT420
-
Disc Brake
- Shimano BR-MT410 Deore
-
Brake Rotor
- Shimano SM-RT30
- Size: 203 mm
- Weight: 190 g
-
Brake Rotor
- Shimano RT-EM300 STEPS
- Size: 203 mm
- Weight: 10 g
Wheels
-
Front Wheel
- Rodi TRYP 30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,070 g
-
Rear Wheel
- Iridium 30 | Shimano MT410
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Aluminium
-
Tyre
- Schwalbe Nobby Nic Performance 29"
- Width: 2.6"
- Weight: 890 g
-
Thru Axle
- Canyon GP0225-01
Cockpit
-
Stem
- FSA Comet 35
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
-
Handlebar
- FSA Comet Alloy 35 Riser
- Width: 760 mm
- Rise: 25 mm
-
Grips
- Canyon Lock-On
-

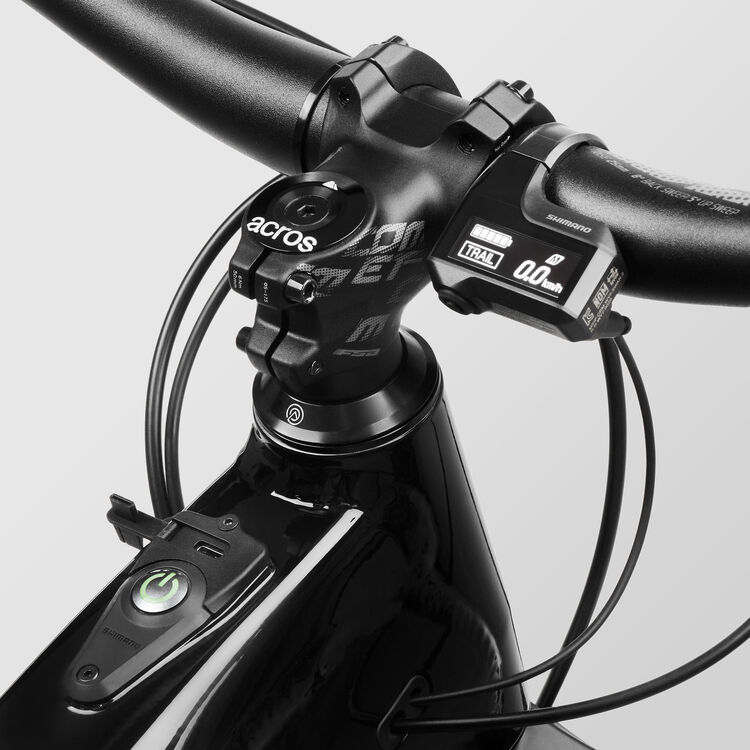

Display
- ELPA SHIM SC-E7000 Display Set 35
-
Modeswitch
- Shimano Steps E7000
Seat
-
Saddle
- Fizik Terra Alpaca X5
- Gender: Unisex
- Weight: 230 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 160 | 160 - 172 | 172 - 183 | 183 - 194 | ≥ 194 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
582 - 681 | 647 - 756 | 693 - 823 | 733 - 863 | 773 - 903 |
Seat Tube Length in mm
(b)
|
380 | 420 | 440 | 480 | 520 |
Top Tube Length in mm
(c)
|
562 | 588 | 608 | 631 | 654 |
Head Tube Length in mm
(d)
|
100 | 100 | 120 | 130 | 140 |
Head Tube Angle
(e)
|
66,5° | 66,5° | 67,5° | 67,5° | 67,5° |
Seat Tube Angle
(f)
|
75° | 75° | 74,5° | 74,5° | 74,5° |
Chainstay Length in mm
(g)
|
435 | 435 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.135 | 1.165 | 1.175 | 1.199 | 1.223 |
Stack in mm
(i)
|
584 | 607 | 625 | 634 | 644 |
Reach in mm
(j)
|
405 | 425 | 435 | 455 | 475 |
Stand-over Height in mm
(k)
|
766 | 772 | 798 | 800 | 808 |
Bottom Bracket Offset in mm
(l)
|
20 | 20 | 33 | 33 | 33 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
Handlebar Width in mm
|
740 | 760 | 760 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
100 | 125 | 150 | 150 | 150 |
Seat Post Length in mm
|
323 | 378 | 425 | 425 | 425 |
Maximum Seat Post Insertion Depth in mm
|
169 | 199 | 220 | 220 | 220 |
Minimum Seat Post Insertion Depth in mm
|
70 | 90 | 90 | 90 | 90 |
Wheel Size
|
27.5" | 27.5" | 29" | 29" | 29" |
Disc Size in mm
|
203 / 180 | 203 / 180 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
120 | 120 | 130 | 130 | 130 |
Rear Suspension Travel in mm
|
130 | 130 | 130 | 130 | 130 |
Battery capacity
|
504 Wh | 504 Wh | 630 Wh | 630 Wh | 630 Wh |
Fitting Length
|
190X45 | 190X45 | 210X50 | 210X50 | 210X50 |
Neuron:ON 7 support
Bike classification
This category also covers the requirements of categories 1e-2e. In addition it includes use on rough and unpaved terrains. Sporadic jumps of a maximum height of approx. 60 cm are also included in the field of use of these bicycles. But inexperienced riders doing jumps of this height may land inappropriately, thus increasing the acting forces significantly which may result in damage and injuries. This category is represented by MTB hardtails and full suspension bicycles with short suspension travel. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
