Spectral:ON CF 8
- Colour: Shades of Stealth
-
-
Members only product. Log in here
Highlights Spectral:ON CF 8

Shimano EP8

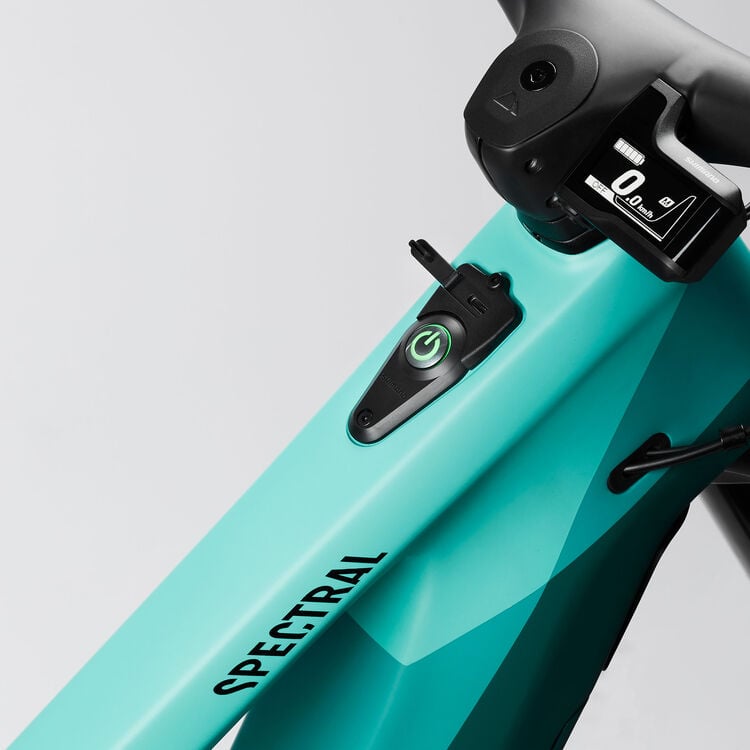

USB-C

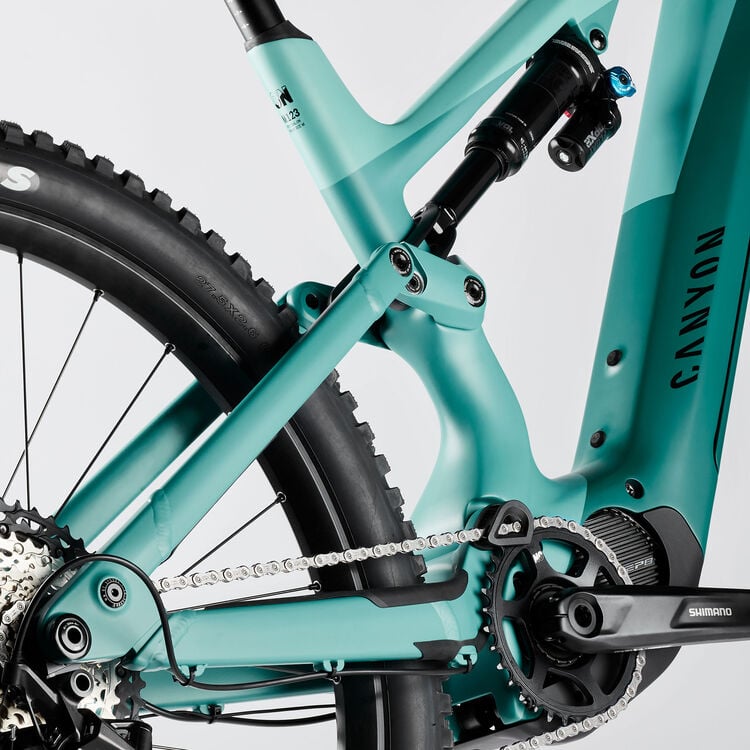

Triple Phase Suspension
Frame
-
Frame
- Canyon Spectral:ON
- Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
-
Rear Shock
- FOX FLOAT DPX2 Performance, 230x60
- Weight: 438 g
-
Suspension Fork
- FOX 36 Performance Elite
- Axle dimension: 15x110 mm
- Stanchion Diameter: 36 mm
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 2/7
- Weight: 2,350 g
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Battery
- Shimano BT-E8036
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Shift Lever
- Shimano Deore XT SL-M8100
- Weight: 130 g
-
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano Steps
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano DEORE XT M8120
-
Disc Brake
- Shimano DEORE XT M8120
- Number of pistons: 4
-
Brake Rotor
- Shimano XT STEPS rear rotor, 203mm
- Size: 203 mm
- Weight: 179 g
-
Brake Rotor
- Shimano DEORE XT MT800
- Size: 203 mm
- Weight: 100 g
Wheels
-
Front Wheel
- DT Swiss H-1700 Spline, 29er
- Wheelsize: 29"
- Weight: 1,190 g
-
Rear Wheel
- DT Swiss H1700
- Rotor mount: Center Lock
- Weight: 1,148 g
-
Tyre
- Maxxis Minion DHF, 2.5"
- Width: 2.5"
- Weight: 250 g
-
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Cockpit
- Canyon:ON CP12 carbon cockpit
- Your cockipit made streamlined and perfectly positioned. Our all-in-one carbon fiber bar and stem combo is durable, sleek, and truly sets the standard for clean aesthetics with internal routing for display wiring.
- Material: Carbon (CF)
- Weight: 10 g
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Canyon SD:ON
- Weight: 302 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 172 | 172 - 183 | 183 - 194 | ≥ 194 |
---|---|---|---|---|
Seat Height in mm
(a)
|
657 - 766 | 693 - 823 | 733 - 863 | 773 - 903 |
Seat Tube Length in mm
(b)
|
430 | 440 | 480 | 520 |
Top Tube Length in mm
(c)
|
590 | 612 | 632 | 653 |
Head Tube Length in mm
(d)
|
100 | 115 | 125 | 135 |
Head Tube Angle
(e)
|
66,5° | 66,5° | 66,5° | 66,5° |
Seat Tube Angle
(f)
|
74,5° | 74,5° | 74,5° | 74,5° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.171 | 1.197 | 1.221 | 1.245 |
Stack in mm
(i)
|
620 | 625 | 635 | 645 |
Reach in mm
(j)
|
425 | 445 | 465 | 485 |
Stand-over Height in mm
(k)
|
784 | 788 | 792 | 806 |
Bottom Bracket Offset in mm
(l)
|
33 | 33 | 33 | 33 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Cockpit Dimensions in mm
|
50-760 | 50-780 | 50-780 | 50-780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 150 | 150 |
Seat Post Length in mm
|
378 | 425 | 425 | 425 |
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 220 | 220 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
150 | 150 | 150 | 150 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Battery capacity
|
630 Wh | 630 Wh | 630 Wh | 630 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Spectral:ON CF 8 support
Bike classification
This category also covers the requirements of categories 1e-2e. In addition it includes use on rough and unpaved terrains. Sporadic jumps of a maximum height of approx. 60 cm are also included in the field of use of these bicycles. But inexperienced riders doing jumps of this height may land inappropriately, thus increasing the acting forces significantly which may result in damage and injuries. This category is represented by MTB hardtails and full suspension bicycles with short suspension travel. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
