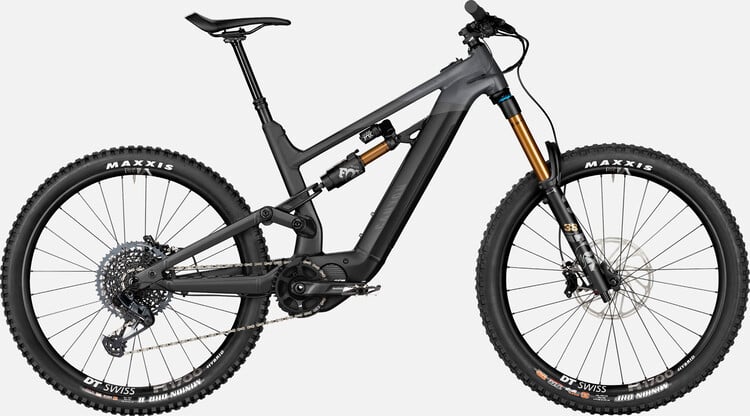

Torque:ON 9
-
-
Members only product. Log in here
Highlights Torque:ON 9

Triple Phase Suspension

USB-C
Frame
-
Frame
- Canyon Torque:ON
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
-
Rear Shock
- Fox Float X2 Factory
-

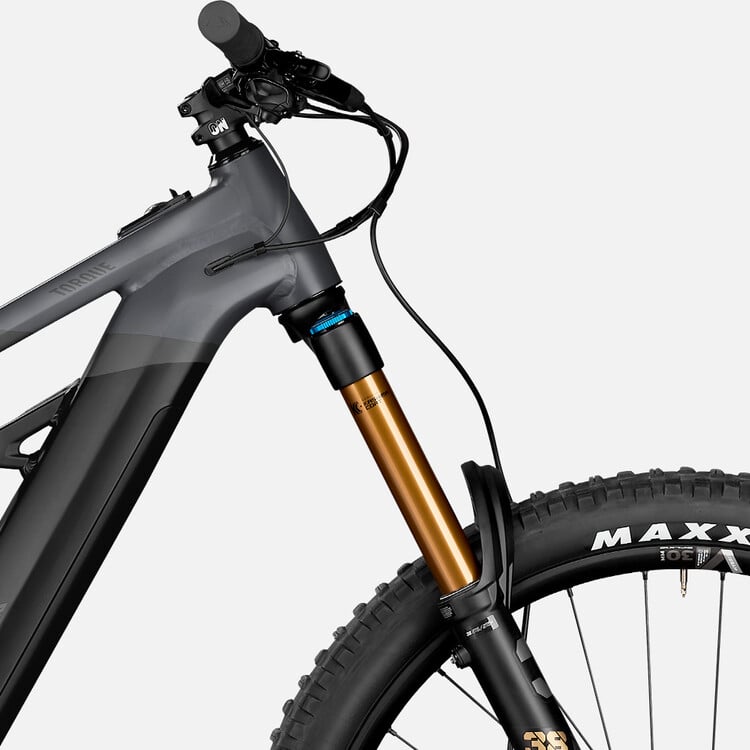

Suspension Fork
- FOX 38 Factory Grip2, 180mm
- Travel: 180 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Motor
- Shimano Steps EP8 Motor
-
Battery
- Shimano BT-E8035
-
Rear Derailleur
- SRAM GX Eagle
- Cage length: long
- Weight: 300 g
-
Shift Lever
- SRAM GX Eagle, 12-speed
- Weight: 129 g
-
Cassette
- SRAM GX Eagle, 12-speed, 10-52T
- Number of sprockets: 12
- Range: 10-52
-
Crank
- Shimano STEPS e-MTB crank arms
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- SRAM X01 Eagle 12-speed
Brakes
-
Disc Brake
- SRAM Code RSC
-
Disc Brake
- SRAM Code RSC
-
Brake Rotor
- SRAM Centerline
- Size: 203 mm
- Weight: 190 g
-
Brake Rotor
- SRAM Centerline
- Size: 220 mm
- Weight: 223 g
Wheels
-
Front Wheel
- DT Swiss H-1700 Spline, 27.5"
- Rotor mount: IS 6-bolt
-
Rear Wheel
- DT Swiss H-1700 Spline, 27.5"
- Wheelsize: 27,5"
-
Tyre
- Maxxis Minion DHF
- Width: 2.5"
- Weight: 1,100 g
-
Tyre
- Maxxis Minion DHR II, 2.6"
- Width: 2.6"
- Weight: 10 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON Stem
- 35mm clamp diameter, 40mm length
-
Stem
- ST [ON] ST0030-01 FRONTPLATE
-
Handlebar
- Canyon:ON HB0056 Riser bar
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 20 mm
-
Grips
- Canyon Lock-On
-
Display
- Shimano Steps SC-E7000 Display
-
Modeswitch
- Shimano STEPS power mode switch
Seat
-
Saddle
- Canyon SD:ON
- Weight: 302 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
667 - 776 | 693 - 823 | 713 - 843 | 753 - 883 |
Seat Tube Length in mm
(b)
|
440 | 440 | 460 | 500 |
Top Tube Length in mm
(c)
|
612 | 639 | 667 | 694 |
Head Tube Length in mm
(d)
|
115 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
63,5° | 63,5° | 63,5° | 63,5° |
Seat Tube Angle
(f)
|
74° | 74° | 74° | 74° |
Chainstay Length in mm
(g)
|
430 | 430 | 430 | 430 |
Wheel Base in mm
(h)
|
1.214 | 1.244 | 1.273 | 1.302 |
Stack in mm
(i)
|
616 | 625 | 634 | 643 |
Reach in mm
(j)
|
435 | 460 | 485 | 510 |
Stand-over Height in mm
(k)
|
777 | 780 | 786 | 790 |
Bottom Bracket Offset in mm
(l)
|
15 | 15 | 15 | 15 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
160,0 | 160,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 150 | 150 |
Seat Post Length in mm
|
378 | 425 | 425 | 425 |
Maximum Seat Post Insertion Depth in mm
|
199 | 220 | 220 | 220 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 |
Wheel Size
|
27.5" | 27.5" | 27.5" | 27.5" |
Disc Size in mm
|
220 / 203 | 220 / 203 | 220 / 203 | 220 / 203 |
Front Fork Travel in mm
|
180 | 180 | 180 | 180 |
Rear Suspension Travel in mm
|
175 | 175 | 175 | 175 |
Battery capacity
|
504 Wh | 504 Wh | 504 Wh | 504 Wh |
Fitting Length
|
250X70 | 250X70 | 250X70 | 250X70 |
Torque:ON 9 support
Bike classification
This type of use stands for very challenging, highly blocked and extremely steep terrains, which can only be mastered by well-trained riders with technical skills. Rather high jumps at very high speeds as well as the intensive use of specific, identified bike parks or downhill trails are typical for this category. In the case of these bicycles it must be considered that a thorough check for possible damage is carried out after every ride. Preliminary damage with clearly inferior further stress can result in failure. A regular replacement of safety-relevant components should also be taken into account. Wearing special protectors is strongly recommended. Full suspension bikes with long suspension travel as well as dirt bikes are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
