Neuron CF SLX LTD
-
Out of stock
4,919 US$
Original price
You save 1,480 US$
When you combine our top-of-the-line SLX carbon technology with the next step in electronic shifting you get a trail bike unlike any other. This Neuron is so special we gave it a custom paint job and are only producing a limited run of 60 bikes.
- Front Fork Travel: 140 mm
-
Weight:
13.32 kg
WeightWeight is based on a size medium frame.
Members only product.
Log in here
Additional information
Current delivery times information.
Read more
Not included:
Delivery:
Select frame size
Highlights Neuron CF SLX LTD

SRAM Flight Attendant: next-level connectivity
Experience cutting-edge wireless integration with SRAM AXS technology. Sensors on the fork, shock, and crank register every bump in the terrain and monitor every pedal stroke. The system uses this data to adjust the suspension to current trail conditions in real time – and you can even fine-tune things using a mobile app. Ride faster, more efficiently, and concentrate 100% on the trail.

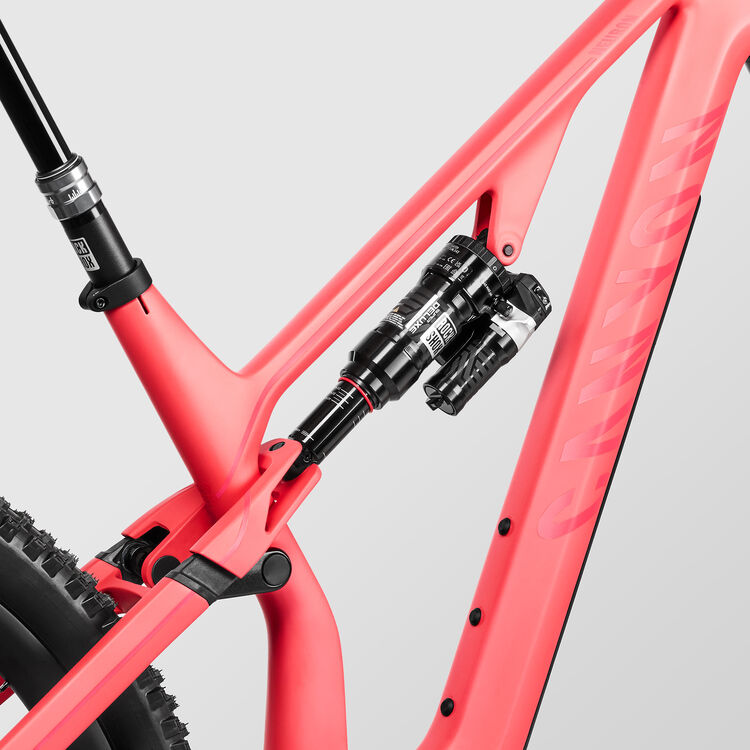

Premium, high-performance carbon frame
The Neuron CF SLX is 250 g lighter than the standard CF frame, all with no drawbacks in terms of stiffness or durability. This high-grade frame was developed for all-round trail riding and unites outstanding efficiency with superior control.

Integrated frame protection
Designed by Canyon, patent pending: the Impact Protection Unit – IPU for short – protects the top tube from brake and shift lever hits in the event of a crash or transport accidents. The integrated cable channel also protects the bottom of the downtube. You can easily replace cables and parts of the downtube protector as required.
Content is loading
Frame
-
Frame
- Canyon Neuron CF SLX
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Material: Carbon (CF)
- Weight: 1,000 g
-
Rear Shock
- Rock Shox Super Deluxe Ultimate Flight Attendant
- Weight: 294 g
-
Suspension Fork
- RockShox Pike Ultimate Flight Attendant
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 1/5
- Weight: 2,340 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM X01 Eagle AXS
- Weight: 369 g
-
Shift Lever
- SRAM Eagle AXS
- Weight: 75 g
-
Cassette
- SRAM XG-1295
- Number of sprockets: 12
- Range: 10-52 12S
-
Crank
- SRAM X01 Eagle AXS DUB
- Number of chainrings: 1
-
Bottom bracket
- SRAM BSA DUB
- Bottom bracket standard: BSA 73
- Weight: 86 g
-
Chain
- SRAM GX Eagle
- Flowlink inner plate design reduces friction, solid pin construction, PowerLock tool-less master link.
Brakes
-
Disc Brake
- SRAM Code RSC
-
Disc Brake
- SRAM Code RSC
-
Brake Rotor
- SRAM HS2
- Size: 180 mm
- Weight: 171 g
Wheels
-
Front Wheel
- DT Swiss XMC1200
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Weight: 729 g
-
Rear Wheel
- DT Swiss XMC 1200 XD
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Weight: 820 g
-
Tyre
- Schwalbe Hans Dampf
- Width: 60 mm
- Weight: 1,048 g
-
Tyre
- Schwalbe Wicked Will, SuperTrail, Addix SpeedGrip, 2.4"
- Width: 2.4"
- Weight: 925 g
-
Thru Axle
- Canyon GP0416-03 Thru Axle 148X12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon V12
- Robust Canyon aluminium stem. Length: 60 mm. Clamp diameter: 31.8 mm.
- Fork steer tube diameter: 1 1/8"
-
Handlebar
- Canyon H23 Carbon Riserbar
- Ergonomic Canyon carbon handlebar. Width: 760 mm. Rise: 15 mm. Clamp diameter: 31.8 mm.
- Width: 760 mm
-
Grips
- Ergon GA20
Seat
-
Saddle
- Ergon SM10 Sport Men
- Gender: Male
- Weight: 316 g
-
Seatpost
- RockShox Reverb AXS
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 710 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 182 | 182 - 192 | ≥ 192 |
---|---|---|---|
Seat Height in mm
(a)
|
708 - 853 | 743 - 888 | 783 - 928 |
Seat Tube Length in mm
(b)
|
445 | 480 | 520 |
Top Tube Length in mm
(c)
|
603 | 626 | 654 |
Head Tube Length in mm
(d)
|
102 | 112 | 143 |
Head Tube Angle
(e)
|
67° | 67° | 67° |
Seat Tube Angle
(f)
|
74,5° | 74,5° | 74,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.167 | 1.190 | 1.222 |
Stack in mm
(i)
|
614 | 623 | 651 |
Reach in mm
(j)
|
433 | 453 | 473 |
Stand-over Height in mm
(k)
|
784 | 788 | 799 |
Bottom Bracket Offset in mm
(l)
|
38 | 38 | 38 |
Spacer in mm
|
10,0 | 15,0 | 15,0 |
---|---|---|---|
Stem Length in mm
|
60 | 60 | 60 |
Handlebar Width in mm
|
760 | 760 | 760 |
Crank Length in mm
|
175,0 | 175,0 | 175,0 |
Chainring Size
|
32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 150 | 150 |
Seat Post Length in mm
|
440 | 440 | 440 |
Maximum Seat Post Insertion Depth in mm
|
225 | 225 | 225 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
Wheel Size
|
29" | 29" | 29" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
140 | 140 | 140 |
Rear Suspension Travel in mm
|
130 | 130 | 130 |
Fitting Length
|
210X50 | 210X50 | 210X50 |
