Mountain Bikes Cross-Country Exceed CFR

Exceed CFR

5,899 US$

CFR-level performance built for relentless forward momentum
Featherweight 9.59 kg build with SRAM XX SL AXS Transmission and DT Swiss XRC1200 carbon wheels
Integrated LOAD down tube storage plus space for two full-size bottles on big-mile rides
Top-level RockShox SID SL Ultimate suspension with 3-position remote lockout and 100 mm travel
Top-tier wireless SRAM XX SL AXS Transmission plus powerful Motive 4-piston braking

Front Fork Travel: 100 mm
Weight: 9.59 kg

Colour: CFR Mint

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

5,899 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Your bike arrives in our custom Bike Guard – built to absorb impacts in transit and keep every component locked in place. Tough, reusable, and ready to double as a stable stand for a fast setup.

Delivery: Select frame size

Highlights Exceed CFR

Engineered for relentless forward motion

Canyon Factory Racing

Canyon Factory Racing (CFR) is our advanced development programme, a relentless push for the next level of ride performance. We combine meticulous German engineering with a ‘no compromises’ approach to innovation. The result? Bikes that win.

Engineered for ultra-distance racing and adventure

From remote mountain passes to multi-day ultra-distance races, the Exceed CFR is built to keep momentum high when the terrain gets rough and the finish line feels a long way off. Lightweight, efficient, and engineered for reliability far from support, it’s made for riders chasing serious distances.

Key features

Lightning fast for the long haul

Built around lightweight efficiency and long-distance capability, the Exceed’s advanced carbon frame combines modern, capable geometry with responsive handling and efficient power transfer across demanding terrain. Fast on marathon race courses and confident deep into ultra-distance rides, it’s engineered to keep momentum high when the terrain gets rough.

Accessories shown here are sold separately. Buy the products here.

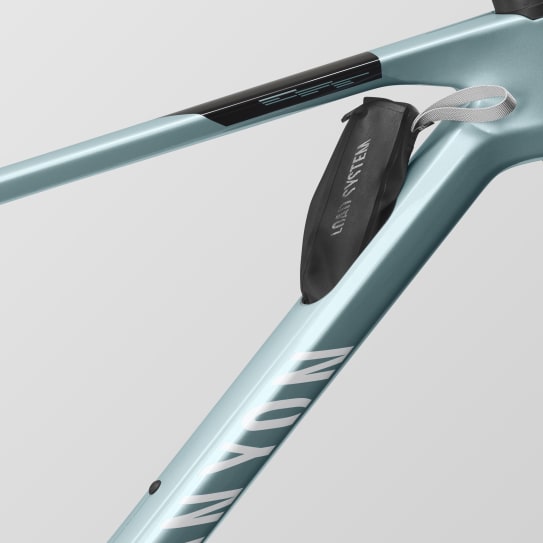

Integrated onboard tool storage

Mid-race fixes and mid-tour repairs have never been so quick and clean. The Exceed's LOAD Down Tube Storage is the slickest way to stash a spare tube and quick-fix tools totally out of sight and out of mind until you need it. Your bike is always ready to go whenever you are.

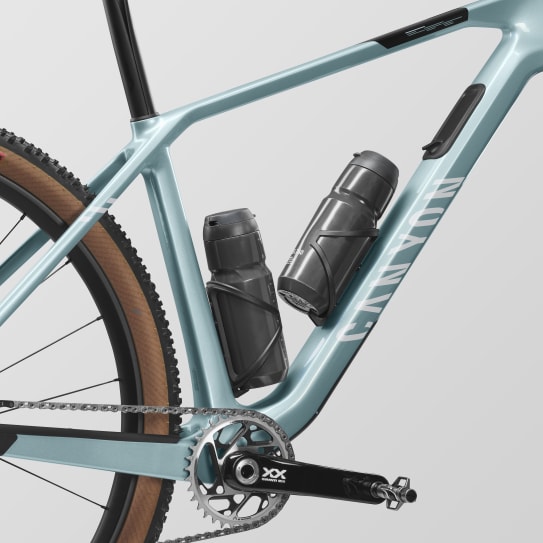

All the mounts you need

With space for two bottles plus a frame bag, front triangle real estate is what we love about hardtails like the Exceed. The new Exceed is even more adventure-ready thanks to a third cage mount beneath the down tube for additional liquids or more tools and spares.

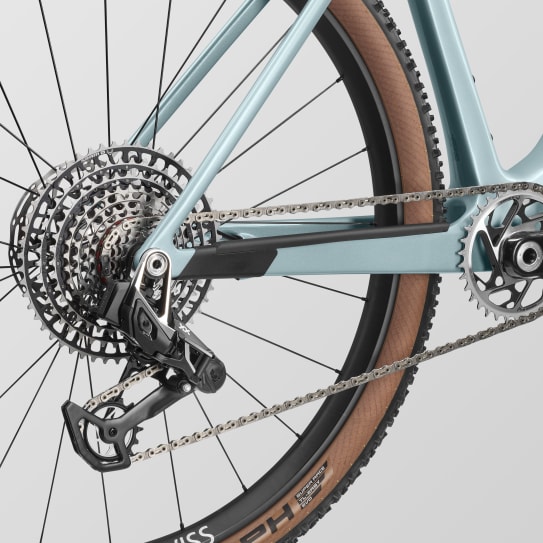

Effective frame protection

Keeping things quiet when you’re on the trail and your frame shielded from wayward rock strikes, we’ve gone the extra mile to integrate rubberised protection where it’s needed most: under the down tube to help protect against stone strikes, on the chainstay ends to protect against heel rub, and on the chainstays to reduce sound and damage from chain slap.

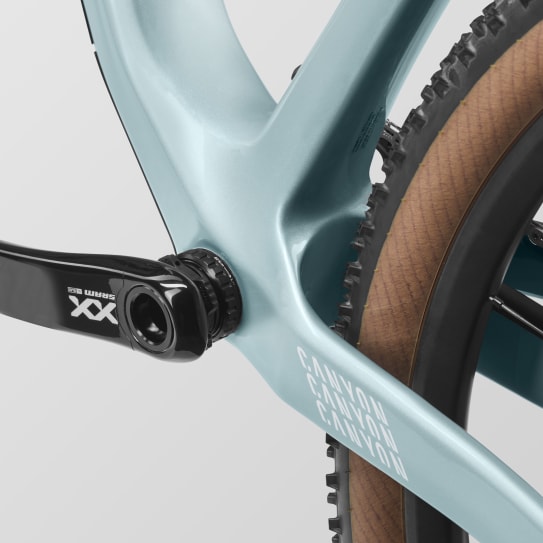

A smooth, easy-to-service threaded bottom bracket

For long-lasting, smooth-spinning and creak-free reliability the Exceed now rolls on a 73 mm BSA threaded bottom bracket standard. Simple serviceability and parts availability, wherever you ride.

Components

Content is loading

Frame

Frame
- Canyon Exceed CF
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1505 g
Suspension Fork
- RockShox Sid SL Ultimate
- Axle dimension 15x110 mm
- Stanchion Diameter 32 mm
- Travel 100 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 1420 g
Seatpost Clamp
- Canyon Clamp SL

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM XX SL Eagle AXS Transmission
- Cage length long
- Weight 423 g
Shift Lever
- SRAM AXS Pod Controller Rocker Paddle
- Weight 56 g
Cassette
- SRAM XS-1299 Eagle Transmission
- Number of sprockets 12
- Range 10-52
Crank
- SRAM XX SL Powermeter Eagle DUB
- Number of chainrings 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard BSA 73
- Weight 78 g
Chain
- SRAM XX SL T-Type
Chain
- SRAM PowerLock

Brakes

Disc Brake
- SRAM Motive Ultimate
- Number of pistons 4
Disc Brake
- SRAM Motive Ultimate
- Number of pistons 4
Brake Rotor
- SRAM Centerline, 160mm
- Size 160 mm
- Weight 117 g
Brake Rotor
- SRAM Centerline X Rounded Edges
- Size 180 mm
- Weight 138 g

Wheels

Front Wheel
- DT Swiss XRC 1200
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim height 20 mm
- Inner width 30 mm
- Rim material Carbon
- Weight 628 g
Rear Wheel
- DT Swiss XRC 1200
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim height 20 mm
- Inner width 30 mm
- Rim material Carbon
- Weight 779 g
Tyre
- Schwalbe Racing Ray SR TLE
- Width 2.35"
- Weight 738 g
Tyre
- Schwalbe Racing Ralph SR TLE EVO 2.35"
- Width 2.35"
- Weight 754 g
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Cockpit
- Canyon CP0036
- Superlight carbon cockpit. With semi-integrated cable routing and high-grip surface in the bar centre.
- Material Carbon (CF)
- Weight 283 g
Grips
- SRAM TwistLoc Grips

Seat

Saddle
- Ergon SRS Pro Carbon
- Gender Unisex
- Weight 172 g
Seatpost
- Canyon SP86 VCLS 2.0 CF
- Seatpost diameter 31,6 mm
- Setback -10 - 2 mm
- Material Carbon (CF)
- Weight 290 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- BAND 003-V01 BIKE CATEGORY 3
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Canyon Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	633 - 743	698 - 808	738 - 848	778 - 888	818 - 928
b Seat Tube Length in mm	350	415	455	495	535
c Top Tube Length in mm	569	587	611	634	658
d Head Tube Length in mm	90	95	105	125	140
e Head Tube Angle	67°	67°	67°	67°	67°
f Seat Tube Angle	75°	75°	75°	75°	75°
g Chainstay Length in mm	425	425	425	430	435
h Wheel Base in mm	1.111	1.130	1.156	1.186	1.217
i Stack in mm	600	604	613	632	646
j Reach in mm	408	425	447	465	485
k Stand-over Height in mm	769	794	820	850	877
l Bottom Bracket Offset in mm	58	58	58	58	58

Component geometry

Detailed geometry table
Frame size
Spacer in mm	10	10	10	10	10
Cockpit Dimensions in mm	70-740	70-740	70-740	70-740	70-740
Crank Length in mm	165,0	170,0	170,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Seat Post Length in mm	435	435	435	435	435
Maximum Seat Post Insertion Depth in mm	200	200	200	200	200
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100	100
Rim height in mm	20	20	20	20	20

Download PDF

Exceed CFR support

New stock

Canyon Sideloader Carbon Bottle Cage

34.95 US$

Canyon Tempr CFR Off-Road Shoes

299.95 US$

Canyon Disruptr CFR Helmet

199.95 US$

Canyon Top Tube Bag Gravel/MTB

29.95 US$

Canyon LOAD Trail Tool Pack

19.95 US$

Canyon Mud Guard

11.95 US$

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

14.95 US$

Dynamic Slick Wax

12.95 US$

Canyon Bikestand

58.95 US$

Canyon 3-in-1 Minitool

63.95 US$

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
