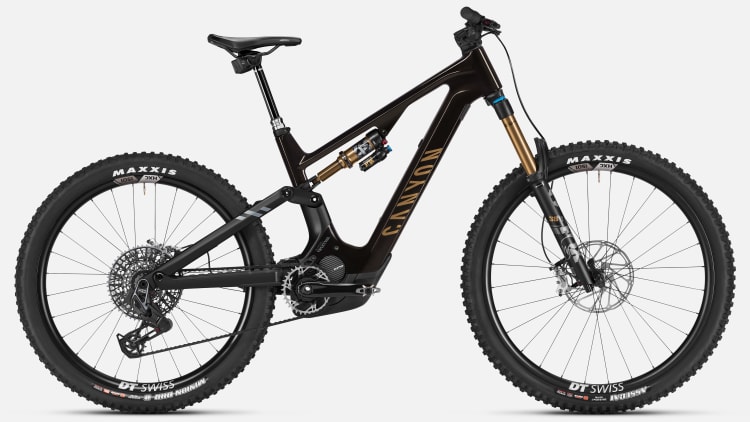

E-Bikes E-Mountain Spectral:ON CFR

Spectral:ON CFR

Name: Spectral:ON CFR
Brand: Canyon
Price: 6299.00 EUR
Availability: InStock
Rating: 5 (9 reviews)

151.699 Kč

Simply the best value in trail e-MTBs today. Full carbon frame, stellar components, and a price that just can’t be beat.

The best of the best—top-tier frame and parts
Proven power, courtesy of Shimano EP8 motor
Top-shelf FOX Factory suspension equals max control
Precise SRAM electronic X0 Eagle AXS Transmission
Rugged, removable 800 Wh aluminium battery
Up to 85 km range and 1,900 m of elevation gain

Front Fork Travel: 160 mm
Weight: 23.9 kg

Customer reviews (9)

Colour: Golden Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Component variation: some models may be delivered with upgraded SRAM Maven brakes instead of the listed SRAM Code brakes.

Members only product.

151.699 Kč

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Spectral:ON CFR

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you all-day power while perfectly complementing its confident, high-quality ride feel. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

The lightweight heavyweight

The Spectral:ON CFR features one of the lightest (and yet strongest) full-carbon frames to be found. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CFR shrugs off hard riding, season after season, and yet boasts a frame weight of just 2,800 grams (6.17 pounds).

A masterpiece in raw carbon

Experience the refined elegance of this bike’s premium stealth artwork, designed to showcase its advanced unidirectional carbon structure. By revealing the intricate carbon layup, we’ve reduced weight and created a distinctive, textured aesthetic.

Ride before you decide

Want to see and test ride a Canyon before you make your decision? Check out this and other Canyon models at our CLLCTV Sessions group rides, at Canyon stores, and at our growing number of global Canyon Experience Partners.

See locations

Let’s set-up your new bike

Wondering how to properly adjust your suspension or take full advantage of all the technology on your new bike? Our set-up guide in the Canyon App will help you quickly build and tune your new ride to your tastes. Stay composed and in control with the capable trail geometry.

See the set-up guide

Key features

Next-level e-MTB trail performance

Featuring a mountain conquering 160 mm fork and 155 mm rear travel, the Spectral:ON CFR rewrites the rules for high torque e-MTB trail bike performance. The tough (category 4E rated), premium CFR chassis is crafted from the finest carbon fibre and shaves 300g from the standard CF frame for an even more responsive ride feel.

Next-gen power. Smart, robust, and removable

This new 800 Wh aluminium battery raises the bar for e-MTB performance. Advanced cell technology unlocks faster charging, smarter energy management, and greater overall efficiency. For maximum convenience, the battery is fully removable, allowing you to charge it easily wherever you go.

With IP57-dust-protected and waterproofing and a double-sealed design to resist the elements, it’s been independently validated by Dekra and SGS.

Proven Shimano power

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP8 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will you have flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ.

GPS Enabled

Whether you’re logging miles ridden and vert crushed or just keeping tabs on your baby, the GPS function of the Spectral:ON has got you covered. The new Canyon app logs the location of your bike and can even send an alarm notification if your bike gets tampered with. The GPS locator stays enabled if the bike runs out of battery.

Perfectly Balanced Mullet Setup

A key part of the Spectral:ON’s outstanding handling and agility is the mullet wheelsize setup. The 27.5 rear wheel increases manoeuvrability on tight trails, while the larger 29er front wheel boosts grip and rollover creating a composed, yet nimble ride. The trail focussed geometry combines roomy reach numbers with a balanced 65.5 headtube angle for a do-it-all setup.

Trail tough hardware

Double-sealed bearings at the pivot points keep dirt and moisture out so you can keep riding through the crud. When it’s eventually time to service the bike, you can wrench with confidence thanks to the replaceable thread inserts which prevent stripped or crossed threads causing terminal damage to the frame.

Components

Content is loading

Frame

Frame
- CANYON Spectral:ON CFR
- Axle dimension 12x148 mm
- Material Carbon (CFR)
- Weight 1,200 g
Rear Shock
- Fox Float X Factory
Suspension Fork
- Fox 38 Factory
- Axle dimension 15x110 mm
- Stanchion Diameter 38 mm
- Travel 160 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- SRAM Powerpack
Battery
- Canyon BT010
Rear Derailleur
- SRAM X0 Eagle AXS Transmission
- Weight 445 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- SRAM AXS Pod Ultimate
- Weight 68 g
Shift Lever
- SRAM AXS POD Ultimate
- Weight 71 g
Cassette
- SRAM X0 Eagle XS 1295
- Number of sprockets 12
- Range 10-52
Crank
- Shimano Steps Hollowtech e-MTB crank arms
Chainring
- SRAM Eagle Transmission Direct Mount Steps
Chain
- SRAM XO T-Type

Brakes

Disc Brake
- SRAM Code Ultimate Stealth
Disc Brake
- SRAM Code Ultimate Stealth
Brake Rotor
- SRAM Centerline
- Size 203 mm
- Weight 190 g

Wheels

Front Wheel
- DT Swiss HXC 1501
- Rotor mount Center Lock
Rear Wheel
- DT Swiss HXC 1501
- Rotor mount Center Lock
Tyre
- Maxxis Assegai
- Width 2.5"
- Weight 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width 2.6"
- Weight 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Cockpit
- Canyon:ON CP12 carbon cockpit
- Your cockipit made streamlined and perfectly positioned. Our all-in-one carbon fiber bar and stem combo is durable, sleek, and truly sets the standard for clean aesthetics with internal routing for display wiring.
- Material Carbon (CF)
- Weight 10 g
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender Unisex
- Weight 272 g
Seatpost
- RockShox Reverb AXS
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 710 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox
Manuals and Accessories
- Quick Start Guide Spectral:ON

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	658 - 778	703 - 848	743 - 908	763 - 928
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	586	613	641	668
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	630	639	648	657
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	36	36	36	36

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Cockpit Dimensions in mm	50-760	50-780	50-780	50-780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	390	440	480	480
Maximum Seat Post Insertion Depth in mm	200	225	245	245
Minimum Seat Post Insertion Depth in mm	80	80	80	80
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 200	203 / 200	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CFR support

Canyon Bikestand

62,99 €

Canyon MTB Backpack 16L with D3O Protector

124,99 €

Canyon Deflectr Helmet

166,99 €

Canyon Scampr Trail Cycling Shoes

166,99 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

15,99 €

Canyon MTB Pants

104,99 €

-35%
Weather-ready

Canyon PocketLight Rain Jacket Loose Fit

135,99 €

Original price ~~208,99 €~~

You save 73 €

Sale

Canyon Mid Cycling Socks

From 10,95 €

Original price ~~10,99 €~~

Save up to 0,04 €

Weather-ready
New

Canyon Mid Season Gloves

46,99 €

CLLCTV T-Shirt

41,99 €

Bike classification

This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
