Outlet Mountain Outlet

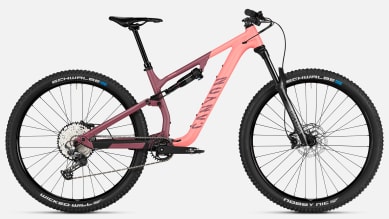

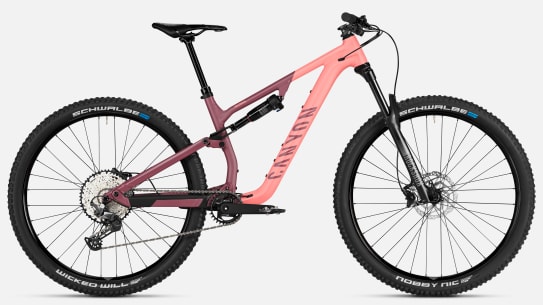

Neuron 5

Name: Neuron 5
Brand: Canyon
Price: 1369.00 EUR
Availability: OutOfStock
Rating: 4 (55 reviews)

-32%

1.369 €

Original price ~~1.999 €~~

You save 630 €

Adventure is calling. Now even more trail-capable than ever, the new Neuron 5 offers all-day comfort and trail riding prowess at an entry-level price.

Front Fork Travel: 140 mm
Weight: 15.1 kg

Customer reviews (55)

Press and awards (1)

Colour: Soil Red

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Wheel size scaling: XS and S bikes have smaller 27.5" wheels to create consistent riding dynamics across all sizes.

Members only product.

1.369 €

Original price ~~1.999 €~~

You save 630 €

Delivery: Select frame size

Select frame size

Additional information

Mounts and frame sizing: Sizes S to XL feature mounts to fit the framebag.

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Neuron 5

Key features

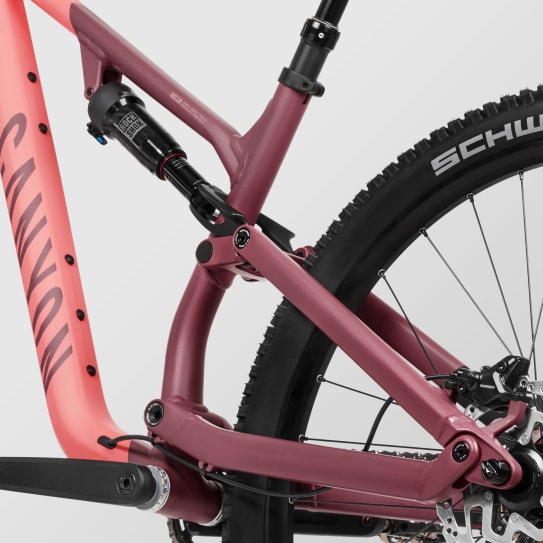

Triple Phase Suspension

Triple Phase Suspension delivers incredible control and feel on the trail. Small-bump sensitivity for huge traction. Mid-stroke stability for speed and momentum. And on big hits the suspension ramps up progressively to avoid bottoming out.

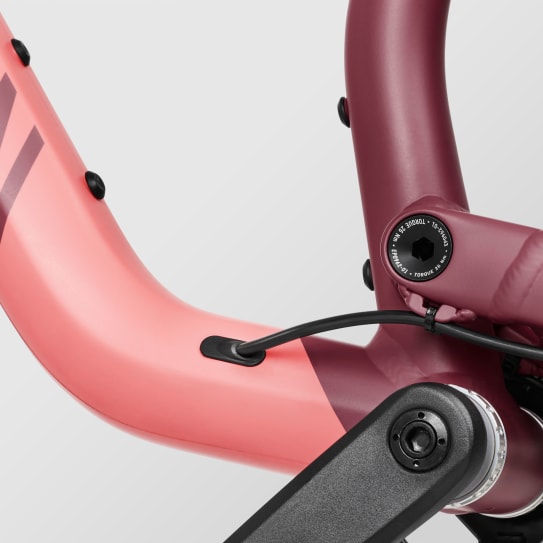

Improved cable routing

For hassle-free maintenance, we’ve updated the Neuron AL’s internal cable routing. Cables run straight from the rear to the front. Just insert the cable at the rear end and watch it pop out at the head tube. Simple. The new system prevents bending and it’s sealed against water and mud. Rattling? Not at all, as the cables run through foam tubes.

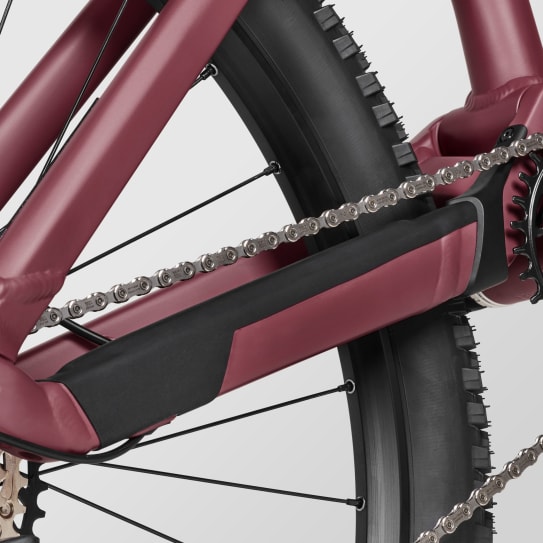

Integrated chainstay protection

The Neuron’s integrated chainstay protector keeps the frame safe and in pristine condition and also eliminates annoying chain slap noises. We also manufactured it with a specific type of rubber that reduces chain slap noises to an absolute minimum.

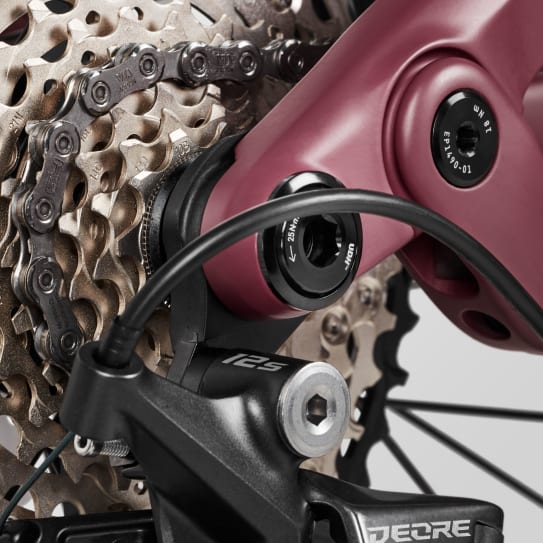

Universal derailleur hanger

Gone are the days of having to hoard multiple derailleur hangers when you buy your bike, or desperately searching for a knock-off replacement when your derailleur takes a ding and your hanger needs replacing. SRAM’s Universal Derailleur Hanger is available at canyon.com and is super easy to replace with a single screw.

Components

Content is loading

Frame

Frame
- Canyon Neuron
- Rugged full-suspension aluminium MTB frame with a perfectly balanced geometry for a confidence inspiring ride.
- Axle dimension 12x148 mm
- Material Aluminium (AL)
- Weight 3,100 g
Rear Shock
- Rock Shox Deluxe Select +
- Weight 375 g

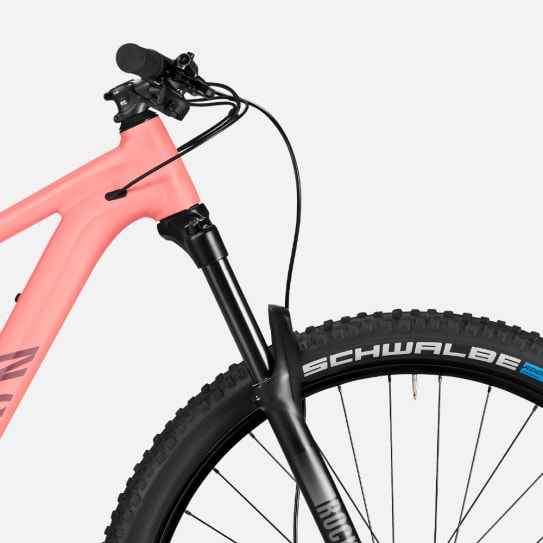

Suspension Fork
- Rock Shox Recon Silver RL
- Axle dimension 15x110 mm
- Stanchion Diameter 32 mm
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 2,500 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length long
- Weight 356 g
Shift Lever
- Shimano Deore M6100
- Weight 135 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets 12
- Range 10-51
Crank
- Miranda Delta
- Number of chainrings 1
Bottom bracket
- Race Face BSA
- Bottom bracket standard BSA 68/73
- Weight 101 g
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano MT410
Disc Brake
- Shimano MT410
Brake Rotor
- Shimano RT10
- Size 180 mm
- Weight 211 g

Wheels

Front Wheel
- Iridium 30
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
Rear Wheel
- Iridium 30
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
Tyre
- Schwalbe Nobby Nic
- Width 2.4"
- Weight 836 g
Tyre
- Schwalbe Wicked Will
- Width 2.4"
- Weight 890 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Iridium Stem
- Fork steer tube diameter 1 1/8"
Handlebar
- Iridium Flatbar
- Material Aluminium
- Rise 5 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Selle Italia X3
- Gender Unisex
- Weight 295 g
Seatpost
- Canyon SP0081
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 622 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	612 - 766	637 - 816	692 - 891	727 - 926	767 - 966
Seat Tube Length in mm (b)	390	390	425	460	500
Top Tube Length in mm (c)	556	579	611	639	674
Head Tube Length in mm (d)	90	100	110	125	143
Head Tube Angle (e)	66°	66°	66°	66°	66°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	430	430	440	440	440
Wheel Base in mm (h)	1.139	1.164	1.203	1.234	1.271
Stack in mm (i)	587	596	626	639	656
Reach in mm (j)	410	430	455	480	510
Stand-over Height in mm (k)	756	760	760	766	772
Bottom Bracket Offset in mm (l)	18	18	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	10,0	10,0	15,0	15,0	15,0
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	740	740	760	760	760
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170	170
Seat Post Length in mm	408	458	498	498	498
Maximum Seat Post Insertion Depth in mm	234	259	279	279	279
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	27.5"	27.5"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Fitting Length	190X45	190X45	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Content is loading

Neuron 5 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
