Grizl CF SL 8 Trail

Name: Grizl CF SL 8 Trail
Brand: Canyon
Price: 2549.00 USD
Availability: OutOfStock

2,549 US$

Original price ~~3,049 US$~~

You save 500 US$

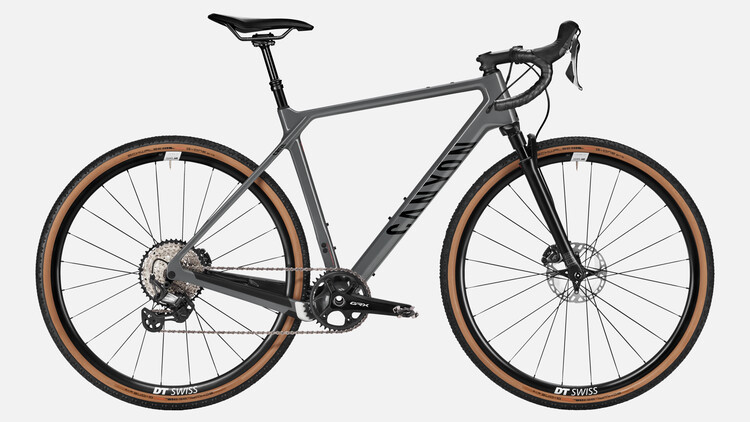

This progressive carbon gravel bike is capable and comfortable on rough terrain and ready for true adventure thanks to its RockShox suspension fork and Shimano GRX shifting.

Weight: 10.34 kg

Weight

Weight is based on a size medium frame.

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

2,549 US$

Original price ~~3,049 US$~~

You save 500 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Grizl CF SL 8 Trail

Key features

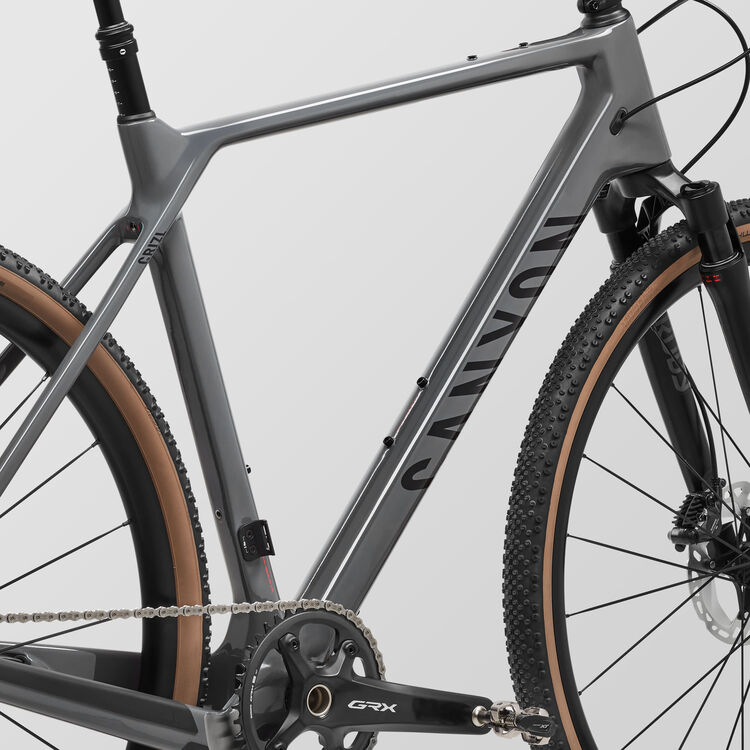

A lightweight robust carbon frame

Burly and fast. The Grizl CF SL uses advanced carbon materials and layup techniques for a complete frame weight of just 1 Kg. It's also hard as nails, super-stiff, and built to withstand years of rough-and-ready riding on the harshest gravel you can find. For extra no-wobble storage at your fingertips, the frame even has top tube rivets for screwing on a hardshell top tube box.

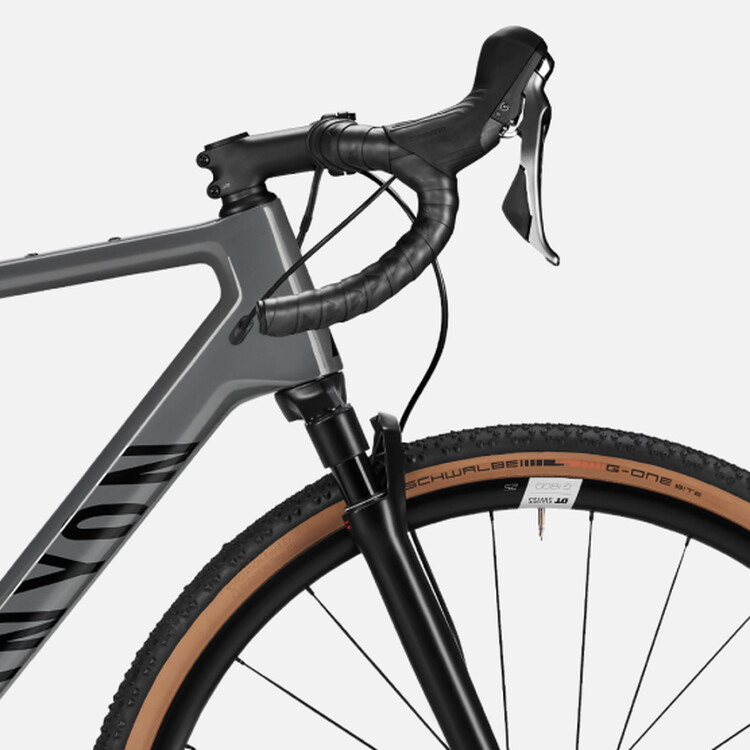

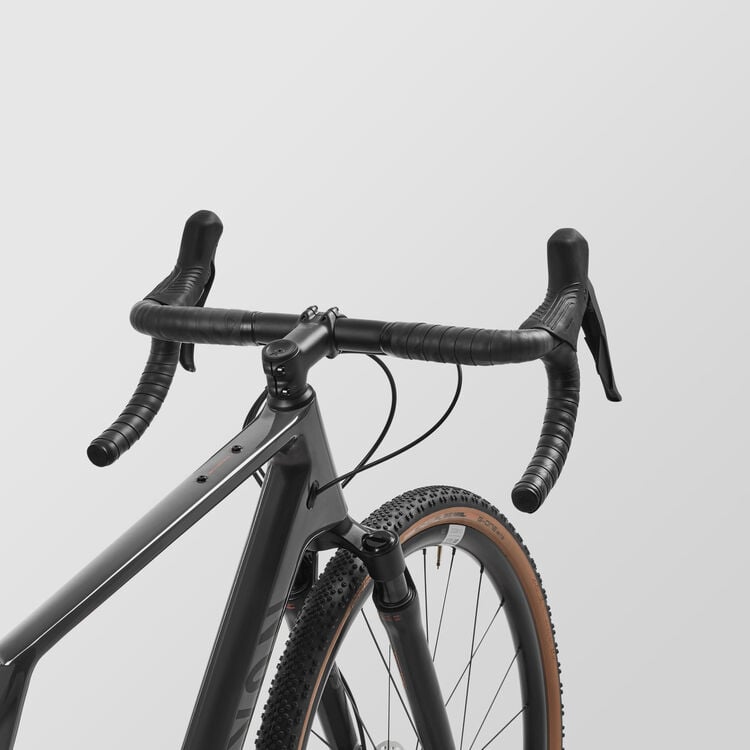

Functional handlebar

With the Grizl's standard cockpit, fit all the accessories you want quickly and easily. GPS mounts, lights, bar bags, bells, and much more besides.

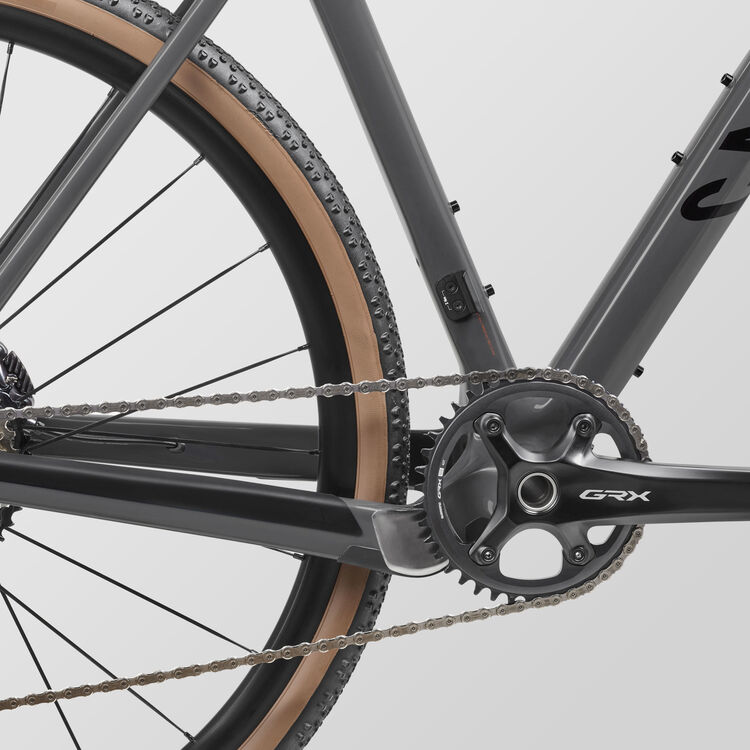

50 mm tyre clearance

Your tyres, your choice. The Grizl runs 45 mm tyres as standard, with extra clearance for 50 mm rubber for extreme rough gravel riding (max 45 mm with fenders).

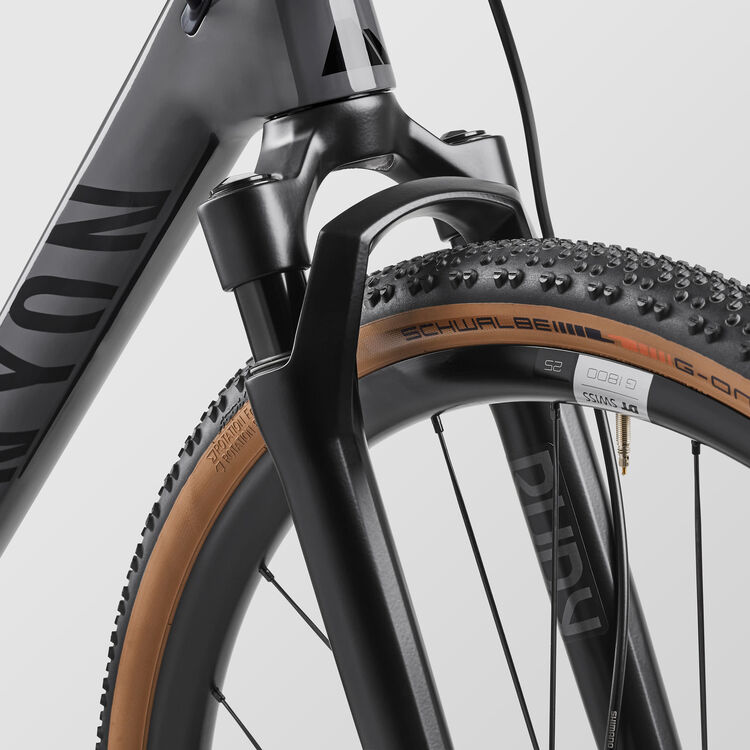

Suspension fork: more comfortable, more capable

On rough gravel, a little front suspension can bring you a lot more go. 30 mm of fork travel effectively boosts front-end grip and traction on loose surfaces and also absorbs the high-frequency hits that wear you down as the ride goes on, keeping you fresher for longer.

Components

Content is loading

Frame

Frame
- Canyon Grizl CF SL
- Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability.
- Axle dimension: 12x142 mm
- Tyre clearance: 50 mm
- Material: Carbon (CF)
- Weight: 1,030 g
Suspension Fork
- RockShox Rudy 30
- Axle dimension: 12x100 mm
- Stanchion Diameter: 30 mm
- Travel: 30 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 50 mm
- Weight: 2,300 g

Drivetrain

Rear Derailleur
- Shimano GRX RD-RX822 12s
- Cage length: medium
- Weight: 290 g
Cassette
- Shimano SLX CS-M7100
- Number of sprockets: 12
- Range: 10-45
Crank
- Shimano GRX FC-RX820
- Number of chainrings: 1
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
Chain
- Shimano Deore M6100

Brakes

Shift-/ Brake Lever
- Shimano GRX RX820 12s
- Number of pistons: 2
- Weight: 289 g
Shift-/ Brake Lever
- Shimano GRX RX820
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g

Wheels

Front Wheel
- DT Swiss G1800 Spline
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 25 mm
- Inner width: 24 mm
- Rim material: Aluminium
- Weight: 880 g
Rear Wheel
- DT Swiss G1800 Spline
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 25 mm
- Inner width: 24 mm
- Rim material: Aluminium
- Weight: 975 g
Tyre
- Schwalbe G-One Bite 45mm
- Width: 45 mm
- Weight: 540 g
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm

Cockpit

Stem
- Canyon ST0035
- A lightweight and durable aluminium stem for use on gravel and road bikes.
- Fork steer tube diameter: 1 1/4"
- Clamping diameter: 31,8 mm
Handlebar
- Canyon HB0063
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter: 31,8 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Fizik Argo Terra X5
- Gender: Unisex
- Weight: 271 g
Seatpost
- Iridium SP0058 Dropper Post
- Seatpost diameter: 27,2 mm
- Material: Aluminium (AL)
- Weight: 440 g
Seat Clamp
- SP IRID DROP Clamping Cylinder 6x9 bk

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Starter Box
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Endurace Quick Start Guide
Manuals and Accessories
- Canyon Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 178	178 - 184	184 - 189	189 - 194	≥ 194
Seat Height in mm (a)	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	492	522	552	582	612
Top Tube Length in mm (c)	552	564	578	602	617
Head Tube Length in mm (d)	118	138	164	185	204
Head Tube Angle (e)	71°	72,25°	72,5°	72,75°	72,75°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.036	1.037	1.050	1.072	1.086
Stack in mm (i)	556	579	605	626	644
Reach in mm (j)	397	402	409	427	436
Stand-over Height in mm (k)	789	816	845	870	892
Bottom Bracket Offset in mm (l)	75	75	75	75	75
Stack+ in mm	642	666	693	714	733
Reach+ in mm	444	461	478	497	515

Component geometry

Detailed geometry table

Spacer in mm	27,5	27,5	27,5	27,5	27,5
Stem Length in mm	70	80	90	90	100
Handlebar Width in mm	420	440	440	460	460
Crank Length in mm	172,5	172,5	175,0	175,0	175,0
Chainring Size	40	40	40	40	40
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2
Dropper post travel in mm	80	80	80	80	80
Seat Post Length in mm	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
Front Fork Travel in mm	30	30	30	30	30
