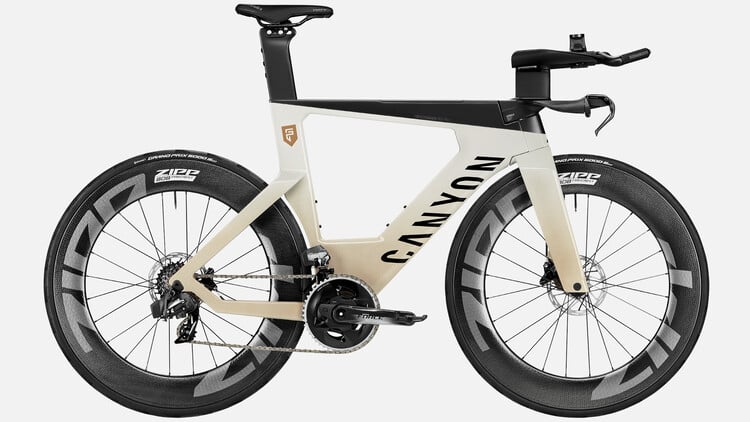

Speedmax CF SLX 8 Disc Frodissimo
-
-
Members only product. Log in here
Please refer to the component list for the individual configuration.
- Size XS - Aerobar: Canyon GP0226 Aerobar - SHORT
- Size S+M - Aerobar: Canyon GP0226 Aerobar - MEDIUM
- Size L+XL - Aerobar: Canyon GP0226 Aerobar - LARGE
Highlights Speedmax CF SLX 8 Disc Frodissimo

Classy, striking artwork

The Frodissimo lifestyle

Painting with coffee

All bases covered
Frame
-
Frame
- Canyon Speedmax CF SLX Disc
- Super-aero triathlon frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box.
- Axle dimension: 12x142 mm
- Tyre clearance: 30 mm
- Material: Carbon (CF)
-
Fork
- Canyon FK0080 CF Disc
- Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Tyre clearance: 30 mm
- Weight: 980 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Force eTap AXS
- Weight: 301 g
-
Front Derailleur
- SRAM Force eTap AXS
- Weight: 162 g
-
Shift Lever
- SRAM eTap Clics
- Weight: 33 g
-
Cassette
- SRAM Force XG-1270, 12-speed, 10-28T
- Number of sprockets: 12
-
Crank
- SRAM Force eTap AXS Powermeter
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM Force D1 12s
Brakes
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- Weight: 282 g
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- Weight: 272 g
-
Brake Rotor
- SRAM Paceline
- Size: 160 mm
- Weight: 159 g
Wheels
-
Front Wheel
- Zipp 808 Firecrest
- Rotor mount: Center Lock
- Rim height: 82 mm
- Weight: 770 g
-
Rear Wheel
- Zipp 808 Firecrest Db
- Rim height: 82 mm
- Weight: 1,917 g
-
Tyre
- Continental Grand Prix 5000 S TR, 25mm
- Width: 25 mm
- Weight: 246 g
-
Tyre
- Continental Grand Prix 5000 S TR, 28mm
- Width: 28 mm
- Weight: 294 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

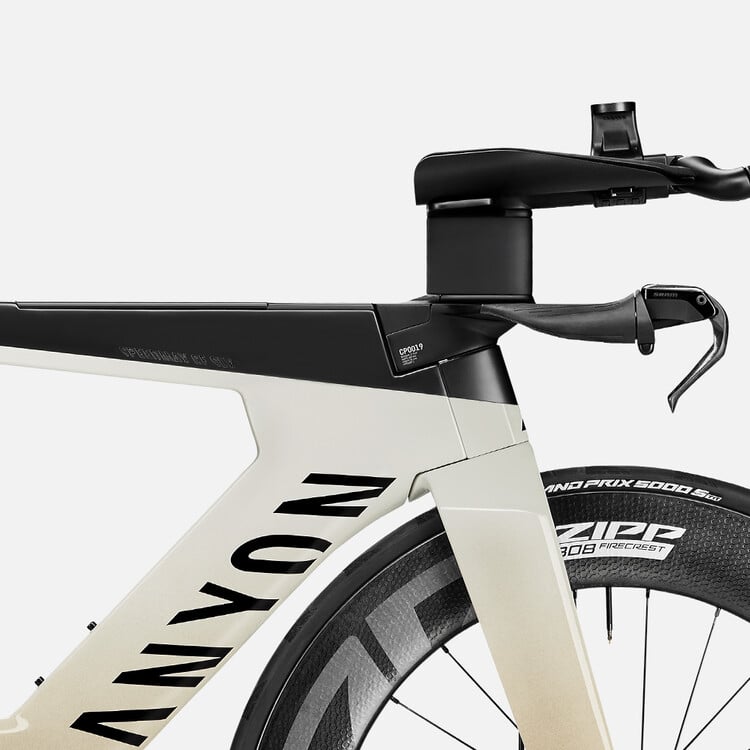

Cockpit
-
Cockpit
- Canyon CP0019 Triathlon Flatbar short
- New triathlon aero cockpit with egonomically optimised grips for maximum control at high speeds and a compact seating position.
- Cockpit type: Flat
- Stem Length: 65 mm
- Basebar Rise: 0 mm
-
Aero Bar
- Canyon GP0226 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
-
Aero Bar
- Canyon EP1412-01/EP1413-01 Armpad Kit
- Premium Ergon armrests providing superior comfort and support. Inspired by Jan Frodeno's custom 2019 cockpit setup.
-
Aero Bar
- Canyon EP1466-01/EP1467-01 Pro Velcro Kit
- Attachment kit for Ergon armpads.
-
Aero Bar
- Canyon GP0377 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
-
Aero Bar
- Canyon EP1418-01 Pad Support
- Sturdy high-grade support plate for Speedmax cockpit armpads.
Seat
-
Saddle
- Selle Italia Watt Superflow
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 248 g
-
Seatpost
- Canyon SP0049 Aero Seatpost
- Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile.
- Material: Carbon (CF)
- Weight: 154 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Hydration Packs
- Canyon X Hydrapak Speedmax H2O Reservoir
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Manual Speedmax CFR/CF SLX
-
Manuals and Accessories
- Manual 007-V01 Road 11/20
Body Height in cm
|
≤ 178 | 178 - 186 | 186 - 196 | ≥ 196 |
---|---|---|---|---|
Seat Height in mm
(a)
|
664 - 784 | 735 - 855 | 775 - 895 | 799 - 919 |
Seat Tube Length in mm
(b)
|
531 | 552 | 592 | 616 |
Top Tube Length in mm
(c)
|
494 | 519 | 548 | 576 |
Head Tube Length in mm
(d)
|
62 | 83 | 123 | 150 |
Head Tube Angle
(e)
|
73° | 73° | 73° | 73° |
Seat Tube Angle
(f)
|
80,5° | 80,5° | 80,5° | 80,5° |
Chainstay Length in mm
(g)
|
420 | 420 | 420 | 420 |
Wheel Base in mm
(h)
|
986 | 1.014 | 1.047 | 1.079 |
Stack in mm
(i)
|
469 | 489 | 527 | 553 |
Reach in mm
(j)
|
415 | 438 | 459 | 483 |
Stand-over Height in mm
(k)
|
797 | 817 | 857 | 881 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 72 | 72 |
Armpad Stack in mm
(m)
|
561 - 671 | 581 - 691 | 619 - 729 | 644 - 754 |
Armpad Reach in mm
(n)
|
386 - 440 | 408 - 463 | 439 - 484 | 454 - 508 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Cockpit Dimensions in mm
|
70-400 | 70-400 | 70-400 | 70-400 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 172,5 |
Chainring Size
|
48/35 | 48/35 | 48/35 | 48/35 |
Seat Post Length in mm
|
285 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
200 | 200 | 200 | 200 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Speedmax CF SLX 8 Disc Frodissimo support
Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
