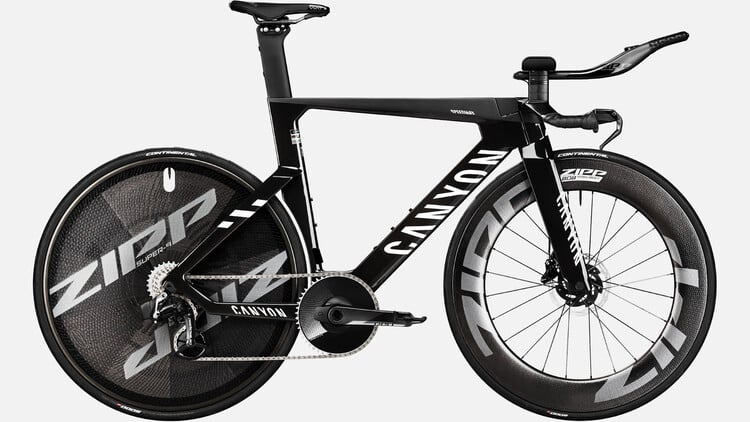

Speedmax CFR TT Disc
Highlights Speedmax CFR TT Disc
One-by chainring

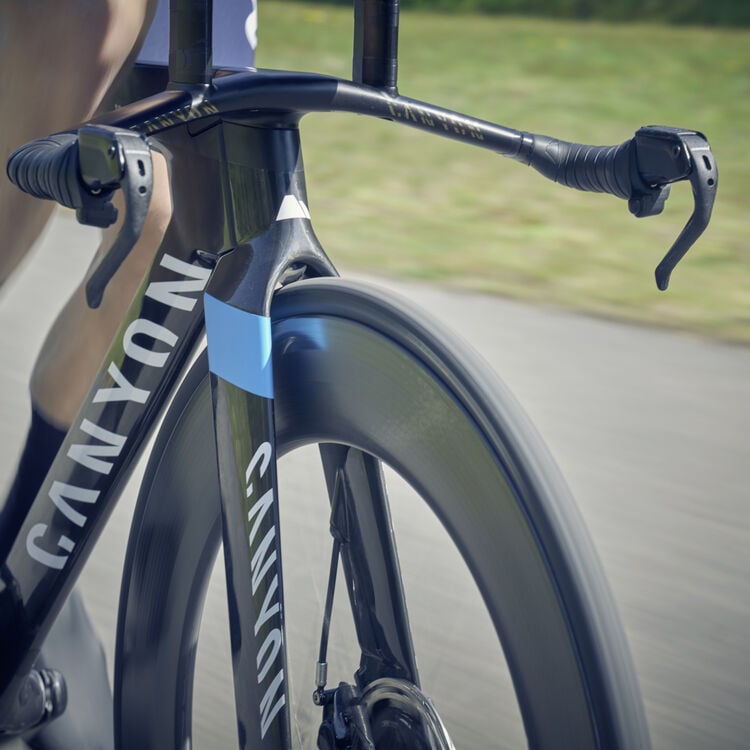

Cockpit with Vukashift extensions
Aerodynamic fork

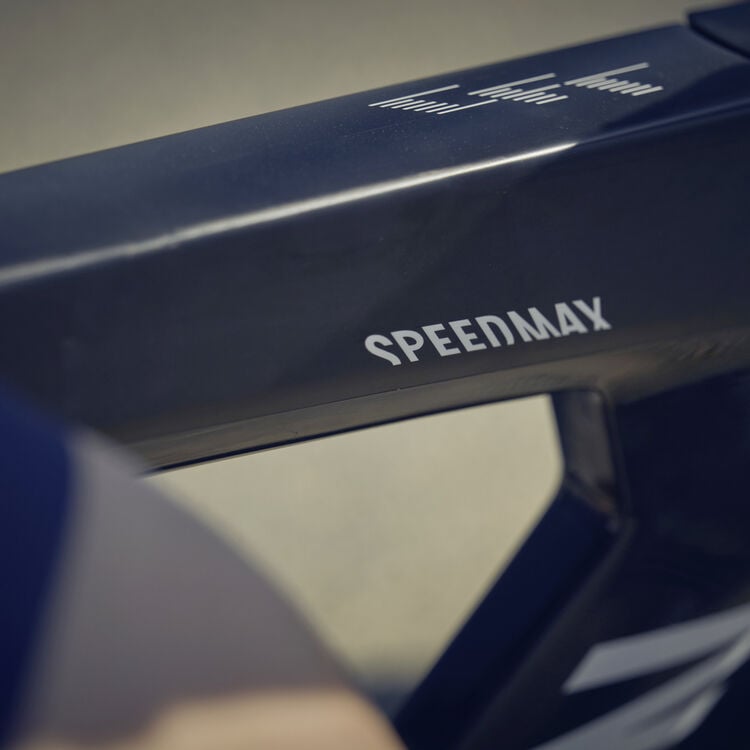

Frame
-
Frame
- Canyon Speedmax CFR TT Disc
- Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. UCI-legal design.
-
Weight 1030 g (size M)
-
Fork
- Canyon FK0079 CF Disc
- UCI-legal deep-profile fork. Shaped and tested by our partner Swiss Side with use of extensive computational fluid dynamics analysis.
-
Fork steer tube diameter 1 1/4"
-
Tyre clearance 30 mm
-
Material Carbon (CF)
-
Weight 370 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM RED eTap AXS 12s
-
Weight 280 g
-
Shift Lever
- SRAM Vukashift AXS
-
Weight 246 g
-
Shift Lever
- SRAM Vukashift AXS
-
Weight 280 g
-
Cassette
- SRAM RED XG-1290, 12-speed, 10-28
-
Number of sprockets 12
-
Crank
- Sram Red 1 50T, 12-speed
-
Number of chainrings 1
-
Bottom bracket
- BB CAYN Sleeve f FC ROT Axle
-
Weight 5 g
-
Bottom bracket
- Ceramicspeed Coated BB (SRAM)
-
Bottom bracket standard PF 86,5
-
Weight 77 g
-
Chain
- SRAM RED D1 12s
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
-
Weight 282 g
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
-
Weight 272 g
-
Brake Rotor
- SRAM Centerline X
-
Size 160 mm
-
Weight 130 g
Wheels
-
Front Wheel
- Zipp 808 Firecrest
-
Rotor mount Center Lock
-
Rim height 82 mm
-
Weight 770 g
-
Rear Wheel
- ZIPP Super9 Disc
-
Rotor mount Center Lock
-
Tyre
- Continental Grand Prix 5000, 25 mm
-
Width 25 mm
-
Weight 220 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
-
Width 28 mm
-
Weight 260 g
-
Thru Axle
- DT Swiss Through Axle
-
Axle dimension 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
-
Axle dimension 12x142 mm
Cockpit
-
Stem
- Canyon V19 Short
- Aluminium stem specially designed for use Canyon Speedmax bikes.
-
Length 65 mm
-
Weight 204 g
-
Handlebar
- Canyon HB0058 TT Basebar Drop
- Specially designed UCI-legal drop bar, shaped in collaboration with our partner Swiss Side using extensive computational fluid dynamics analysis. Featuring Canyon's trusted direct-mount spacer spacer system and ergonomically optimised Ergon armpads.
- Canyon HB0058 TT Basebar
-
Material carbon
-
Type drop bar
-
Basebar drop 40 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
-
Color black
Seat
-
Saddle
- Selle Italia Watt Kit Carbonio Superflow
-
Max. Rider Weight 100 kg
-
Weight 10 g
-
Seatpost
- Canyon SP0048 Aero Seatpost
- Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant.
-
Weight 300 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
|
Body Height in cm
|
≤ 175 | 175 - 185 | ≥ 185 |
|---|---|---|---|
|
Seat Height in mm
(a)
|
661 - 781 | 693 - 843 | 723 - 873 |
|
Seat Tube Length in mm
(b)
|
518 | 540 | 570 |
|
Top Tube Length in mm
(c)
|
473 | 495 | 523 |
|
Head Tube Length in mm
(d)
|
65 | 91 | 126 |
|
Head Tube Angle
(e)
|
73° | 73° | 73° |
|
Seat Tube Angle
(f)
|
85,9° | 85,7° | 85,5° |
|
Chainstay Length in mm
(g)
|
420 | 420 | 420 |
|
Wheel Base in mm
(h)
|
988 | 1.014 | 1.047 |
|
Stack in mm
(i)
|
472 | 496 | 530 |
|
Reach in mm
(j)
|
417 | 435 | 458 |
|
Stand-over Height in mm
(k)
|
791 | 815 | 849 |
|
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 |
|
Armpad Stack in mm
(m)
|
544 - 624 | 569 - 649 | 603 - 683 |
|
Armpad Reach in mm
(n)
|
431 - 458 | 449 - 476 | 472 - 499 |
|
Spacer in mm
|
55,0 | 55,0 | 55,0 |
|---|---|---|---|
|
Crank Length in mm
|
170,0 | 172,5 | 175,0 |
|
Chainring Size
|
50 | 50 | 50 |
|
Seat Post Length in mm
|
295 | 335 | 335 |
|
Maximum Seat Post Insertion Depth in mm
|
200 | 230 | 230 |
|
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
|
Wheel Size
|
28" | 28" | 28" |
|
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 |
Speedmax CFR TT Disc support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
-
