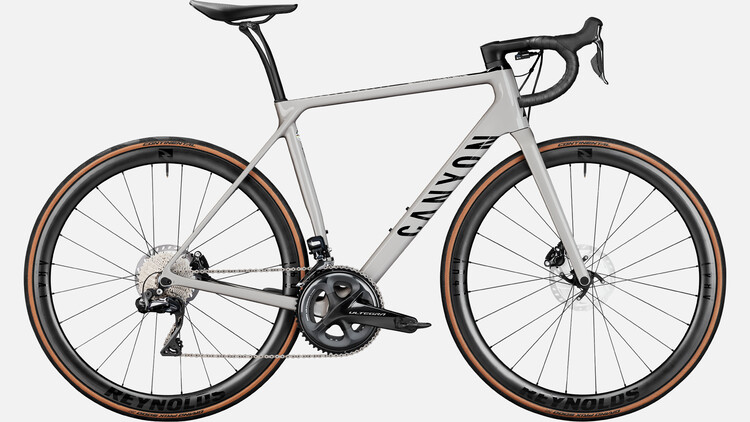

Endurace CF SL 8 Disc AERO
Topping out our Endurace CF SL range, the Endurace CF SL Disc 8 Aero features an integrated power meter and combines a smooth, comfortable ride with watt-saving parts so you can cover big distances even quicker.
- Material: Carbon (CF)
-
Weight:
7.7 kg
WeightWeight is based on a size medium frame.
-
- Colour: Off Green
-
Members only product. Log in here
Select frame size
Sold out
Members only product.
Log in here
Sold out
Highlights Endurace CF SL 8 Disc AERO

Comfort kink
The Endurace’s curved-back seatposts flex more, for more comfort. To maintain the optimal riding position, we added a kink in the seat tube. The result: huge comfort gains, no performance drawbacks.

Comfort-boosting seat clamp
The Endurace’s seat clamp is integrated into the frame. It increases comfort by gripping the seatpost lower. So it can flex more. And it’s lighter than a traditional design. And the moulded carbon junction looks super-clean.

Broad, flat top tube
The Endurace’s broad, flat top tube is specially reinforced to increase the frame’s stiffness. In turn, this additional stiffness lets us focus more on aero when designing areas most exposed to the wind, such as the down tube.
Content is loading
Frame
-
Frame
- Canyon Endurace CF SL
- Endurance road bike with proven comfortable-yet-agile Sport Geometry for long-distance riding.
- Endurance road bike with aero-optimised tube shapes, and proven comfortable-yet-agile Sport Geometry for long-distance riding.
- Material: Carbon
- Axle Dimension: 12 x 142 mm
- Brake mount: flat mount
-

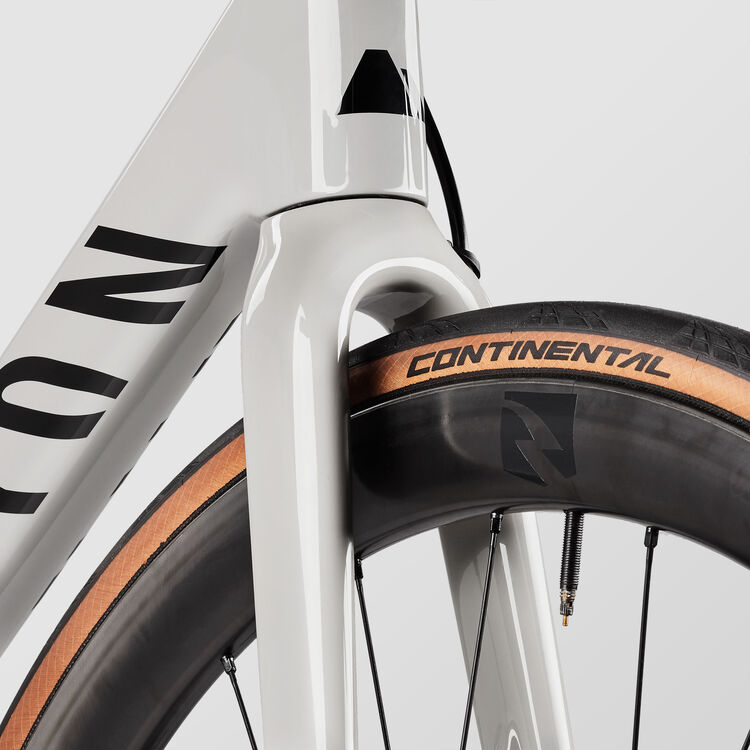

Fork
- Canyon FK0098 CF Disc
- A robust carbon fibre fork offering the optimal mix of robustness, stiffness, and lightness.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 395 g
Drivetrain
-
Battery
- Shimano BT-DN110 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2 R8050 GS
- Cage length: short
- Weight: 242 g
-
Front Derailleur
- Shimano Ultegra Di2 R8050
- Weight: 132 g
-
Cassette
- Shimano Ultegra HG800 11-34 11s
- Number of sprockets: 11
-
Crank
- Shimano Ultegra R8000 4iiii Precision Powermeter
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano CN-HG701 11s
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8070 2s
- Weight: 300 g
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8070 11s
- Weight: 364 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 170 g
Wheels
-
Front Wheel
- Reynolds AR41 DB
- Rotor mount: Center Lock
- Weight: 800 g
-
Rear Wheel
- Reynolds AR41 DB SH11
- Rotor mount: Center Lock
- Weight: 830 g
-
Tyre
- Continental Grand Prix 5000, 28 mm
- Width: 28 mm
- Weight: 245 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm

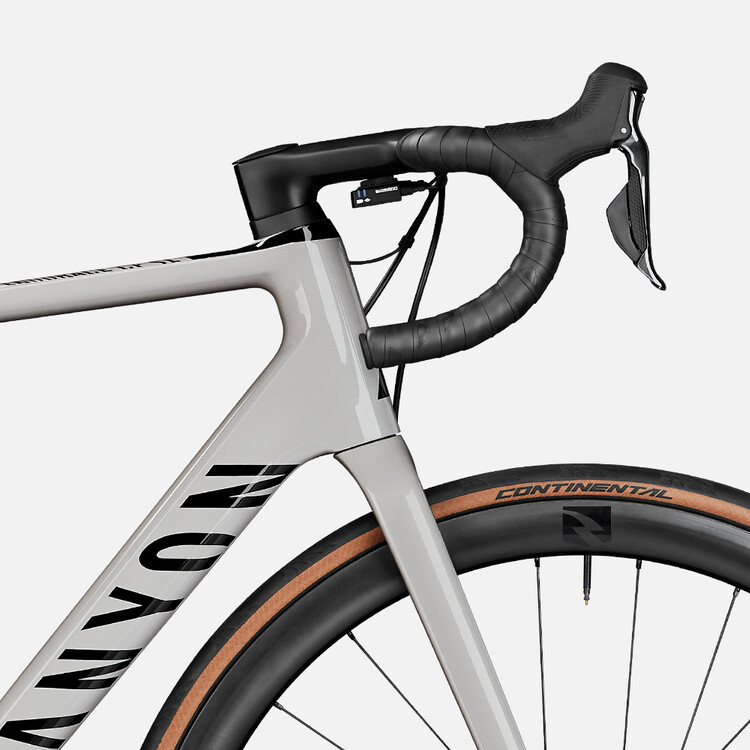

Cockpit
-
Cockpit
- Canyon H31 Ergocockpit CF
- Carbon one-piece stem-handlebar unit with shorter reach and the 3° flare angle for increased control when riding in the drops.
- Material: Carbon
- Shape: Ergo
- Reach: 70 mm
- Drop: 128 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Argo Tempo R5
- Gender: Unisex
- Weight: 248 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- BAG REY Acc Assault LE 21C C DB
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
511 | 527 | 541 | 553 | 568 | 592 | 607 |
Head Tube Length in mm
(d)
|
98 | 115 | 139 | 158 | 184 | 206 | 225 |
Head Tube Angle
(e)
|
69,2° | 71° | 72° | 73° | 73° | 73,25° | 73,25° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
980 | 982 | 988 | 990 | 1.006 | 1.028 | 1.043 |
Stack in mm
(i)
|
510 | 532 | 557 | 578 | 604 | 625 | 644 |
Reach in mm
(j)
|
360 | 370 | 376 | 382 | 389 | 407 | 417 |
Stand-over Height in mm
(k)
|
724 | 750 | 780 | 806 | 832 | 857 | 881 |
Bottom Bracket Offset in mm
(l)
|
75 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
612 | 632 | 658 | 680 | 708 | 729 | 749 |
Reach+ in mm
|
411 | 424 | 441 | 458 | 475 | 494 | 513 |
Spacer in mm
|
37,5 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 | 37,5 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-380 | 80-380 | 90-420 | 100-420 | 110-420 | 110-440 | 120-440 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
