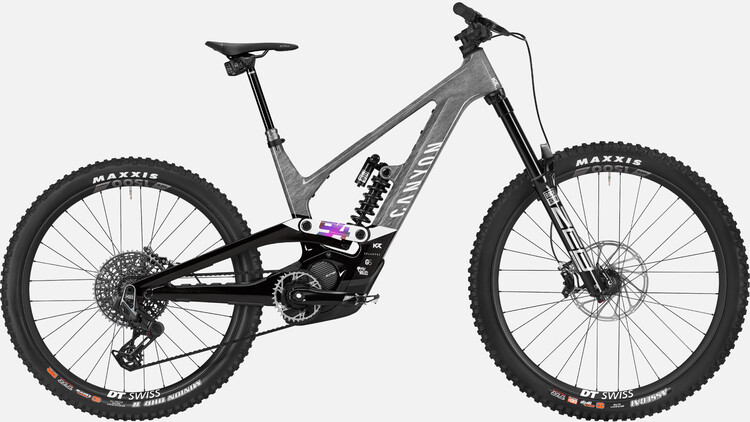

Torque:ON CF Roczen
- Front Fork Travel: 180 mm
-
Weight:
25 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Highlights Torque:ON CF Roczen

A true gravity frame

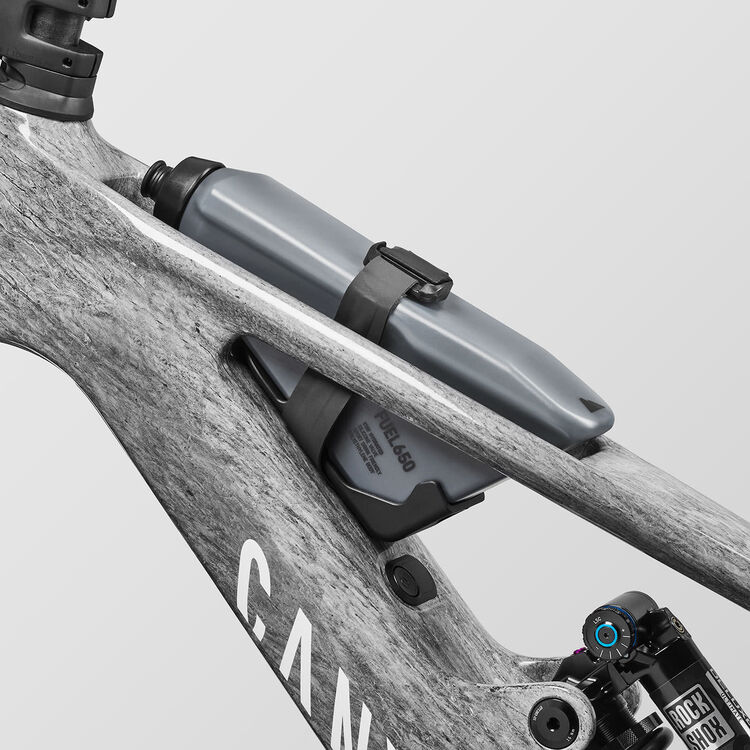

Innovative Hydration Solution

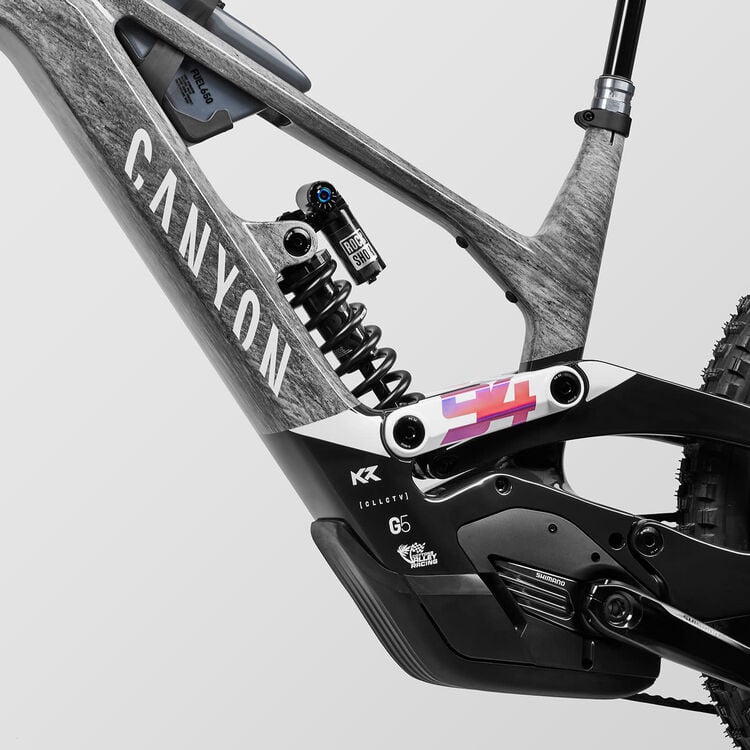

Ride in the colours of Ken Roczen

More Miles. More Stoke.

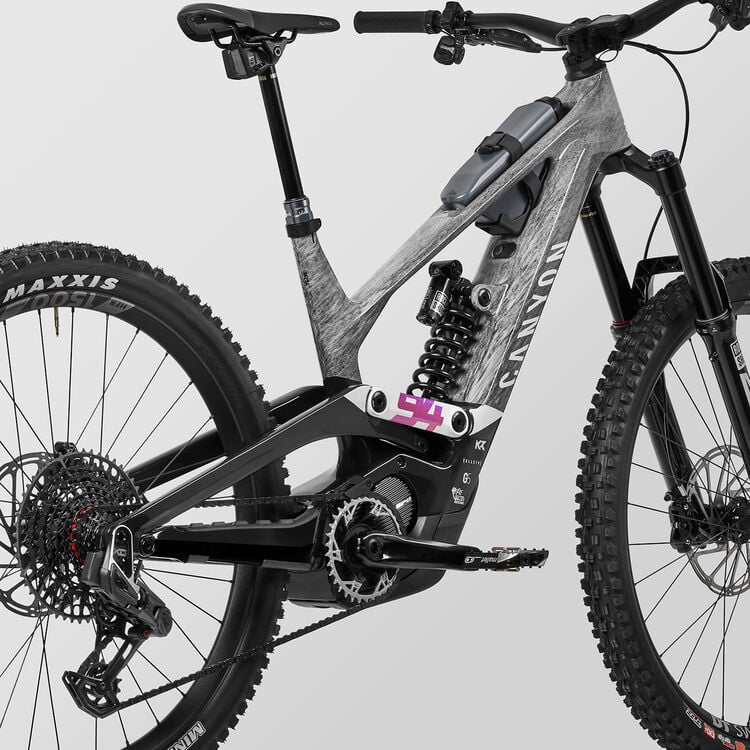

Frame
-
Frame
- Torque:ON CF M124 Frame
- A progressive, hugely capable carbon freeride e-MTB engineered to crush challenging trails with ease and power.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 1,085 g
-
Rear Shock
- RockShox Super Deluxe Coil Ultimate
- Tune: LINEAR REB-LOW COMP TUNE
- Weight: 294 g
-

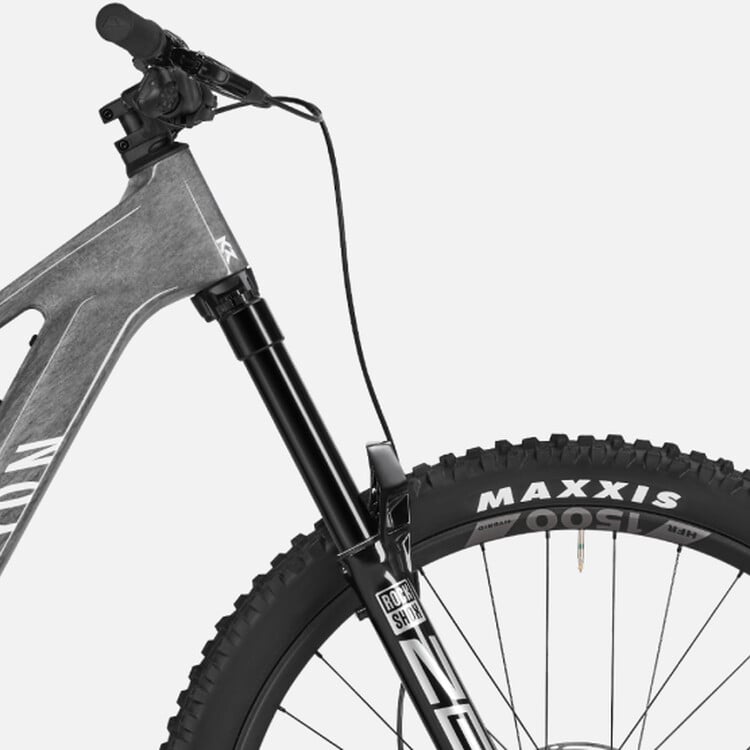

Suspension Fork
- RockShox ZEB Ultimate
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 180 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Weight: 2,400 g
Drivetrain
-
Motor
- Shimano EP801
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM X0 Eagle AXS Transmission
- Weight: 445 g
-
Chainguard
- Canyon EP1189-01 Chain Guide Nut
-
Chainguard
- Canyon GP0397-01 Chainguide
-
Chainguard
- Canyon EP1539-01 Chain Guide
-
Shift Lever
- SRAM AXS Pod Ultimate
- Weight: 68 g
-
Shift Lever
- SRAM AXS POD Ultimate
- Weight: 71 g
-
Cassette
- SRAM X0 Eagle XS 1295
- Number of sprockets: 12
- Range: 10-52
-
Crank
- Shimano Steps Hollowtech e-MTB crank arms
-
Chainring
- SRAM Eagle Transmission Direct Mount Steps
-
Chain
- SRAM XO T-Type
Brakes
-
Disc Brake
- SRAM Code RSC
-
Disc Brake
- SRAM Code RSC
-
Brake Rotor
- SRAM Centerline
- Size: 203 mm
- Weight: 190 g
-
Brake Rotor
- SRAM Centerline
- Size: 220 mm
- Weight: 223 g
Wheels
-
Front Wheel
- DT Swiss HFR1500
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Weight: 967 g
-
Rear Wheel
- DT Swiss HFR1500
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Weight: 820 g
-
Tyre
- Maxxis Minion DHR II 3C MaxxTerra
- Width: 2.4"
- Weight: 900 g
-
Tyre
- Maxxis Assegai 3C MaxxGrip
- Width: 2,5"
- Weight: 1,160 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Handlebar HB0057
- Clamping diameter: 35,0 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Fizik Gravita Alpaca X5
- Gender: Unisex
- Weight: 220 g
-
Seatpost
- RockShox Reverb AXS
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 710 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Battery Charger
- CANYON CHARGER
-
Battery Charger
- CANYON CHARGER
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- QSG 034-V04 M124 TRQ[ON]
Body Height in cm
|
≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
---|---|---|---|---|
Seat Height in mm
(a)
|
658 - 803 | 703 - 868 | 718 - 883 | 743 - 908 |
Seat Tube Length in mm
(b)
|
395 | 420 | 435 | 460 |
Top Tube Length in mm
(c)
|
592 | 619 | 646 | 673 |
Head Tube Length in mm
(d)
|
105 | 115 | 125 | 135 |
Head Tube Angle
(e)
|
63,5° | 63,5° | 63,5° | 63,5° |
Seat Tube Angle
(f)
|
77,5° | 77,5° | 77,5° | 77,5° |
Chainstay Length in mm
(g)
|
445 | 445 | 445 | 445 |
Wheel Base in mm
(h)
|
1.247 | 1.276 | 1.306 | 1.335 |
Stack in mm
(i)
|
639 | 648 | 657 | 666 |
Reach in mm
(j)
|
450 | 475 | 500 | 525 |
Stand-over Height in mm
(k)
|
738 | 745 | 765 | 777 |
Bottom Bracket Offset in mm
(l)
|
32 | 32 | 32 | 32 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
780 | 800 | 800 | 800 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 170 | 170 | 170 |
Seat Post Length in mm
|
440 | 480 | 480 | 480 |
Maximum Seat Post Insertion Depth in mm
|
225 | 245 | 245 | 245 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
220 / 203 | 220 / 203 | 220 / 203 | 220 / 203 |
Front Fork Travel in mm
|
180 | 180 | 180 | 180 |
Rear Suspension Travel in mm
|
175 | 175 | 175 | 175 |
Battery capacity
|
720 Wh | 720 Wh / 900 Wh | 720 Wh / 900 Wh | 720 Wh / 900 Wh |
Fitting Length
|
225X70 | 225X70 | 225X70 | 225X70 |
Torque:ON CF Roczen support
Other riders also bought
- Colour: Night Sky
- Colour: Thyme
- Colour: Tillandsia Purple
- Colour: Creole Pink
Bike classification
This type of use stands for very challenging, highly blocked and extremely steep terrains, which can only be mastered by well-trained riders with technical skills. Rather high jumps at very high speeds as well as the intensive use of specific, identified bike parks or downhill trails are typical for this category. In the case of these bicycles it must be considered that a thorough check for possible damage is carried out after every ride. Preliminary damage with clearly inferior further stress can result in failure. A regular replacement of safety-relevant components should also be taken into account. Wearing special protectors is strongly recommended. Full suspension bikes with long suspension travel as well as dirt bikes are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
