Speedmax CF SLX 8 Di2 ARC1600
- Material: Carbon (CF)
-
Weight:
9.5 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Please refer to the component list for the individual configuration.
- Size XS - Aerobar: Canyon GP0226 Aerobar - SHORT
- Size S+M - Aerobar: Canyon GP0226 Aerobar - MEDIUM
- Size L+XL - Aerobar: Canyon GP0226 Aerobar - LARGE
Highlights Speedmax CF SLX 8 Di2 ARC1600
The best. Better.

Canyon Engineered Perfection

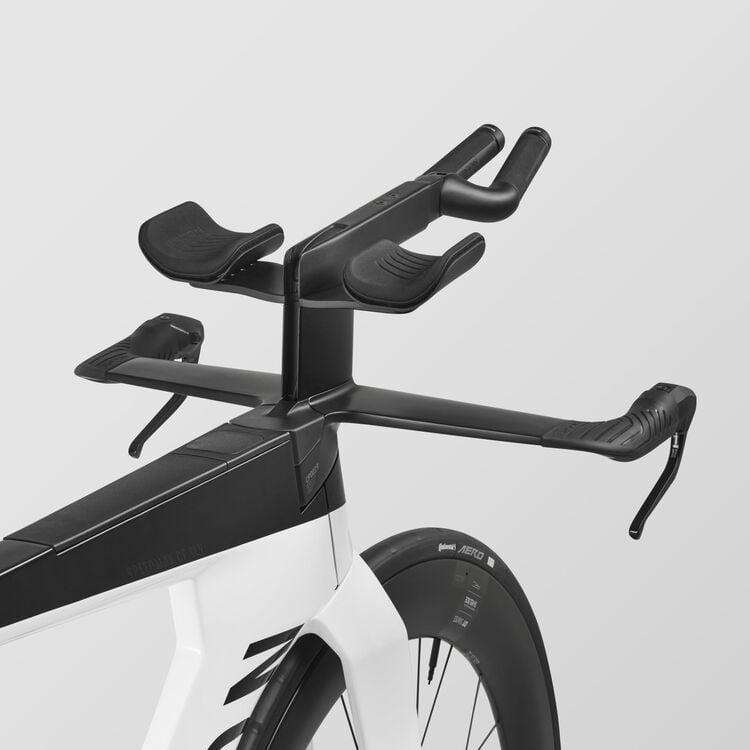

Adjustable cockpit

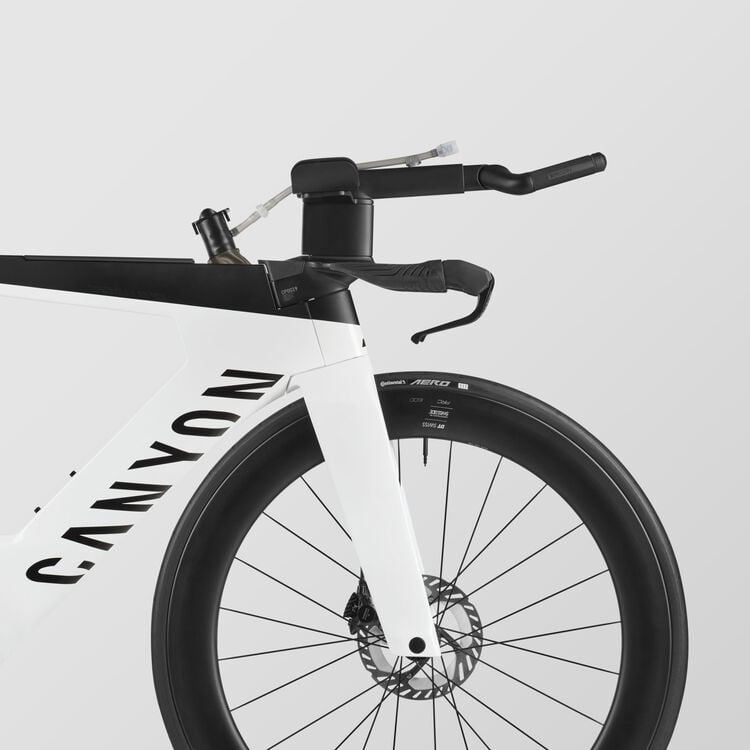

An aerodynamic integrated hydration system

Bento Box

Simple tool storage: bottom bracket box
Frame
-
Frame
- Canyon Speedmax CF SLX Disc
- All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard.
- Axle dimension: 12x142 mm
- Tyre clearance: 30 mm
- Material: Carbon (CF)
- Weight: 1,700 g
-
Fork
- Canyon FK0080 CF Disc
- Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 30 mm
- Material: Carbon (CF)
- Weight: 671 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2
- Weight: 260 g
-
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight: 111 g
-
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 19 g
-
Cassette
- Shimano Ultegra CS-R8101 12s
- Number of sprockets: 12
- Range: 11-30
-
Crank
- Shimano Ultegra FC-R8100 4iiii Precision Powermeter
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano XT
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 ST-R9180
- Number of pistons: 2
- Weight: 263 g
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 ST-R9180
- Number of pistons: 2
- Weight: 264 g
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 112 g
Wheels
-
Front Wheel
- DT Swiss ARC 1600
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 62 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 864 g
-
Rear Wheel
- DT Swiss ARC 1600
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 80 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 1,050 g
-
Tyre
- Continental Grand Prix 5000 S TR, 28mm
- Width: 28 mm
- Weight: 294 g
-
Tyre
- Continental Aero 111
- Width: 26 mm
- Weight: 246 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0019 Triathlon Flatbar short
- Aerodynamically optimised triathlon cockpit with adjustable height, width, reach, and grip. Ergonomically optimised for maximum control at high speeds in a compact riding position.
- Material: Carbon (CF)
- Weight: 525 g
-
Aero Bar
- Canyon GP0226 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
-
Saddle
- Selle Italia Watt Superflow
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 248 g
-
Seatpost
- Canyon SP0049 Aero Seatpost
- Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile.
- Material: Carbon (CF)
- Weight: 154 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Hydration Packs
- Canyon X Hydrapak Speedmax H2O Reservoir
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Manual Speedmax CFR/CF SLX
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 178 | 178 - 186 | 186 - 196 | ≥ 196 |
---|---|---|---|---|
Seat Height in mm
(a)
|
664 - 784 | 735 - 855 | 775 - 895 | 799 - 919 |
Seat Tube Length in mm
(b)
|
531 | 552 | 592 | 616 |
Top Tube Length in mm
(c)
|
494 | 519 | 548 | 576 |
Head Tube Length in mm
(d)
|
62 | 83 | 123 | 150 |
Head Tube Angle
(e)
|
73° | 73° | 73° | 73° |
Seat Tube Angle
(f)
|
80,5° | 80,5° | 80,5° | 80,5° |
Chainstay Length in mm
(g)
|
420 | 420 | 420 | 420 |
Wheel Base in mm
(h)
|
986 | 1.014 | 1.047 | 1.079 |
Stack in mm
(i)
|
469 | 489 | 527 | 553 |
Reach in mm
(j)
|
415 | 438 | 459 | 483 |
Stand-over Height in mm
(k)
|
797 | 817 | 857 | 881 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 72 | 72 |
Armpad Stack in mm
(m)
|
561 - 671 | 581 - 691 | 619 - 729 | 644 - 754 |
Armpad Reach in mm
(n)
|
386 - 440 | 408 - 463 | 430 - 484 | 454 - 508 |
Spacer in mm
|
110 | 110 | 110 | 110 |
---|---|---|---|---|
Cockpit Dimensions in mm
|
70-400 | 70-400 | 70-400 | 70-400 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 172,5 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
285 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
200 | 200 | 200 | 200 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Speedmax CF SLX 8 Di2 ARC1600 support
Other riders also bought
- Colour: Vermillion Orange
- Colour: Lilac
- Colour: Blue
- Colour: Marine
- Colour: Arabic Spice
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
