Aeroad CF SL 8.0 Di2
Get pro-level performance for less. Electronic shifting from a full Shimano Ultegra Di2 groupset and DT Swiss full carbon wheels for aero gains partner with the Aeroad CF SL frame to make a bike that’s race-ready.
-
- Colour: blue fade
-
Members only product. Log in here
Select frame size
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Members only product.
Log in here
Sold out
Highlights Aeroad CF SL 8.0 Di2
Content is loading
Frame
-
Frame
- Canyon Aeroad CF SL
- Material: Carbon
- Axle Dimension: 9 x 130 mm
- Brake Mount: Direct Mount
-
Fork
- Canyon FK0068 CF
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 340 g
Drivetrain
-
Battery
- Shimano BT-DN110 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2 R8050 SS
- Cage length: short
- Weight: 10 g
-
Front Derailleur
- Shimano Ultegra Di2 R8050
- Weight: 132 g
-
Cassette
- Shimano Ultegra R8000, 11-speed, 11-28T
- Number of sprockets: 11
-
Crank
- Shimano Ultegra R8000
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Brake
- Shimano Ultegra R8010
-
Brake
- Shimano Ultegra R8010
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8050 2s
- Weight: 154 g
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8050 11s
- Weight: 140 g
Wheels
-
Front Wheel
- DT Swiss ARC 1400 Dicut
- Rotor mount: Center Lock
-
Rear Wheel
- DT Swiss ARC 1400 Dicut SH11
- Wheelsize: 28"
-
Tyre
- Continental Grand Prix 5000 / Attack 23 mm
- Width: 23 mm
- Weight: 210 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
Cockpit
-
Cockpit

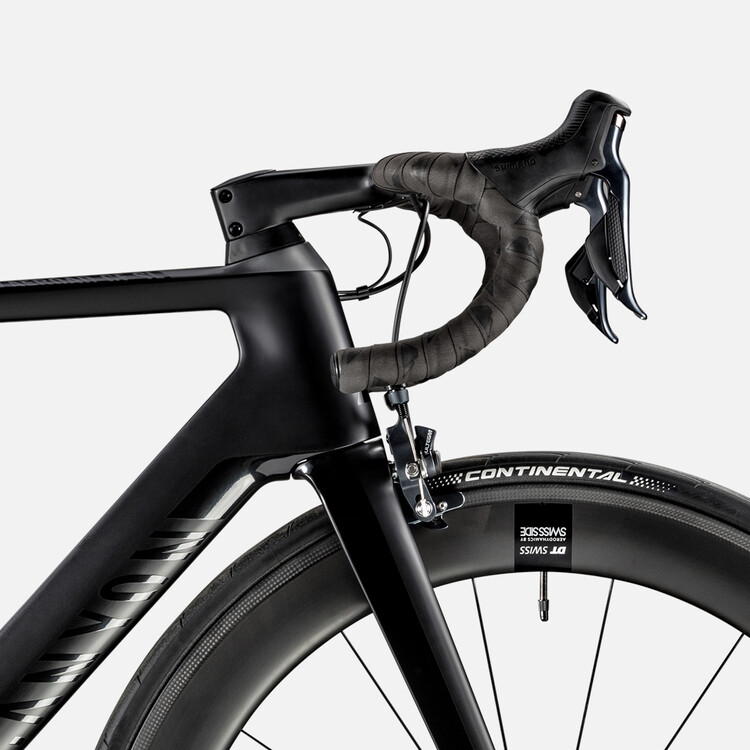

- Canyon H36 Aerocockpit CF
- A one-piece cockpit with top-end aerodynamics, semi-integrated cable routing, and premium ergonomics for comfort and precise handling.
- Material: Carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Arione R5
- Weight: 10 g
-
Seatpost
- Canyon S27 Aero VCLS Seatpost
- Material: Carbon
- Setback: -1 mm / 15 mm
- Technology: VCLS | Fliphead
-
Seat Clamp
- Canyon S27 Aero VCLS CF
-
Seat Clamp
- Canyon E230 Adapter for S27/S28 Seatpost
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- DT Swiss warranty & intended use manual
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
663 - 763 | 682 - 782 | 701 - 801 | 724 - 824 | 744 - 844 | 761 - 861 | 780 - 880 |
Seat Tube Length in mm
(b)
|
470 | 489 | 508 | 531 | 551 | 568 | 587 |
Top Tube Length in mm
(c)
|
509 | 527 | 549 | 560 | 572 | 592 | 604 |
Head Tube Length in mm
(d)
|
100 | 110 | 130 | 146 | 167 | 190 | 210 |
Head Tube Angle
(e)
|
69,5° | 71,2° | 72,8° | 73,3° | 73,3° | 73,3° | 73,3° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
969 | 973 | 982 | 989 | 1.001 | 1.021 | 1.033 |
Stack in mm
(i)
|
494 | 509 | 533 | 550 | 570 | 592 | 612 |
Reach in mm
(j)
|
363 | 376 | 391 | 397 | 403 | 417 | 423 |
Stand-over Height in mm
(k)
|
740 | 758 | 781 | 798 | 818 | 840 | 861 |
Bottom Bracket Offset in mm
(l)
|
70 | 70 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
589 | 602 | 625 | 643 | 665 | 687 | 708 |
Reach+ in mm
|
428 | 443 | 460 | 477 | 493 | 506 | 522 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-430 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
325 | 325 | 325 | 325 | 325 | 325 | 325 |
Maximum Seat Post Insertion Depth in mm
|
180 | 180 | 180 | 180 | 180 | 180 | 180 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Download PDF
Content is loading
Aeroad CF SL 8.0 Di2 support
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
