E-Bikes E-Mountain Spectral:ON CF

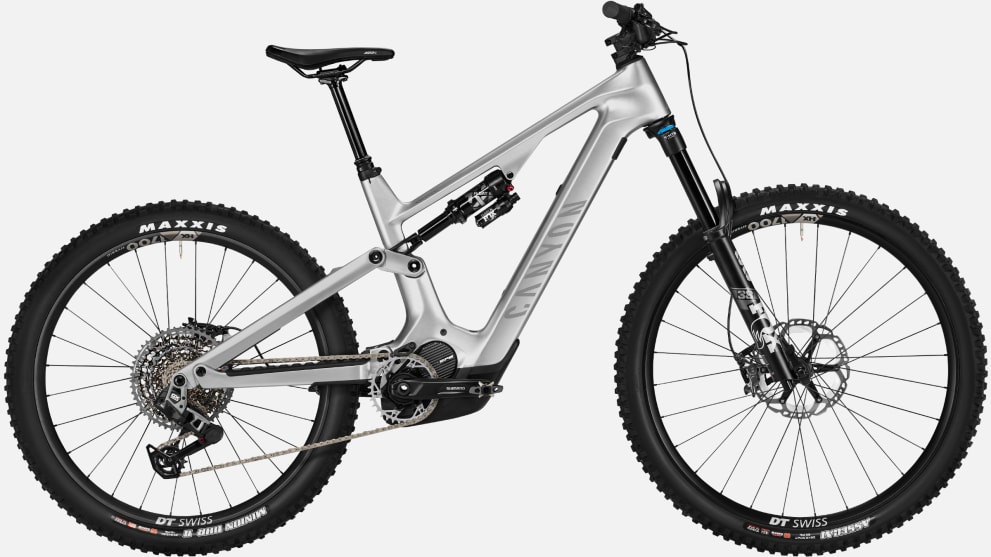

Spectral:ON CF 9

Name: Spectral:ON CF 9
Brand: Canyon
Price: 4999.00 EUR
Availability: InStock
Rating: 4 (25 reviews)

4.999 €

Bomber-yet-lightweight, full-carbon frame
Proven power, courtesy of Shimano EP8 motor
FOX 38 Performance Elite fork and Float X shock
Precise SRAM electronic GX Eagle AXS Transmission
Mullet wheelsizing maximises playful handling

Front Fork Travel: 160 mm
Weight: 24.4 kg

Reviews (25)

Colour: Unlimited Silver

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

4.999 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

The JobRad® price is generally calculated on the maximum possible income tax benefit. Calculate your personal savings with JobRad® now!
Go to the JobRad® calculator

* The shown, estimated total costs (including insurance) are generally calculated based on the maximum possible income tax and social security savings. The actual total costs for you depend on your income and the selected parameters (lease term, insurance, employer contribution). You can calculate your personal total cost using the calculator of your leasing provider.

** The rate is calculated using the original cost of the bike.
Klarna offers direct payments, pay later options, or installment plans
Calculate amount
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Spectral:ON CF 9

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like the Spectral:ON. The bike’s big battery gives you the power to ride all-day while also improving the Spectral:ON’s handling. The battery’s unique, horizontal fuel-cell architecture helps lower the bike’s centre of gravity and creates an absolute ground-hugging, corner-slaying marvel.

Tough yet lightweight

The heart and soul of the Spectral:ON CF is its light-yet-durable, full-carbon frame. Built to withstand rigorous Category 4e strength and impact testing, the Spectral:ON CF easily shrugs off hard riding, season after season, while boasting a truly impressive frame weight of 3,180 grams (7.01 pounds).

Key features

Full carbon electric trail bike

By making the full Spectral:ON line up carbon fibre we were able to optimise the frame architecture and improve strength at critical points while shaving overall weight. The added frame strength combines with huge 15 mm thru axles at the main and seatstay pivots to boost overall stiffness and noticeably improve handling precision and suspension performance.

Next-gen power. Smart and robust.

The new 800 Wh aluminium battery redefines e-MTB performance. Built with next-generation cells, it boasts faster charging, smarter energy management, and improved efficiency. With IP57 dust protection and waterproofing, double-sealed protection, and the seal of approval from independent testing authority SGS, it’s as durable as it is advanced.

Proven Shimano power

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP8 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will you have flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ

GPS Enabled

Whether you’re logging miles ridden and vert crushed or just keeping tabs on your baby, the GPS function of the Spectral:ON has got you covered. The new Canyon app logs the location of your bike and can even send an alarm notification if your bike gets tampered with. The GPS locator stays enabled if the bike runs out of battery.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Material: Carbon (CF)
- Weight: 1,280 g
Rear Shock
- Fox Float X Performance Evolution
- Tune: CL, RM, Rezi LM
- Weight: 280 g
Suspension Fork
- FOX 38 Performance Elite Grip2
- Stanchion Diameter: 38 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Seatpost Clamp
- Canyon GP0279-01 Seatclamp

Drivetrain

Motor
- Shimano EP801
Battery
- SRAM Powerpack
Battery
- Canyon BT010
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- SRAM AXS POD Infinity
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets: 12
- Range: 10-52
Crank
- Shimano Steps
Chainring
- SRAM Eagle Transmission Direct Mount Steps
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- Shimano DEORE XT M8120
- Number of pistons: 4
Disc Brake
- Shimano DEORE XT M8120
- Number of pistons: 4
Brake Rotor
- Shimano XT STEPS rear rotor, 203mm
- Size: 203 mm
- Weight: 179 g
Brake Rotor
- Shimano DEORE XT MT800
- Size: 203 mm
- Weight: 100 g

Wheels

Front Wheel
- DT Swiss HX1700
- Rotor mount: Center Lock
- Weight: 997 g
Rear Wheel
- DT Swiss H1700
- Rotor mount: Center Lock
- Weight: 1,148 g
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g

Light

Lights
- Reflector Set

Accessories

Battery Charger
- Canyon Charger
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox
Manuals and Accessories
- QSG 027-V04 M091/M129 SPT[ON]

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	647 - 756	693 - 823	733 - 853	753 - 873
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	589	613	637	663
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	634	643	652	661
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	36	36	36	36

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	378	425	465	465
Maximum Seat Post Insertion Depth in mm	199	220	240	240
Minimum Seat Post Insertion Depth in mm	90	90	120	120
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CF 9 support

Coming soon

Canyon Bikestand

59,95 €

Canyon Deflectr Helmet

159,95 €

Canyon MTB Backpack 16L with D3O Protector

119,95 €

Canyon Scampr Trail Cycling Shoes

159,95 €

Limited edition

Canyon MTB Performance Pedals LTD

109,95 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

14,95 €

Canyon MTB Pants

139,95 €

Weather-ready

Canyon PocketLight Rain Jacket Loose Fit

199,95 €

Canyon Mid Cycling Socks

14,95 €

Weather-ready
New

Canyon Mid Season Gloves

44,95 €

CLLCTV T-Shirt

39,95 €

-57%

View

CLLCTV Core Snap Back

12,95 €

Original price ~~29,95 €~~

You save 17 €

Bike classification

This category also covers the requirements of categories 1e-3e. In addition, bicycles of this category are suitable for very rough and partly blocked terrain with steep slopes and higher speeds as a result thereof. Regular, moderate jumps by experienced riders are no problem for these bicycles. The regular and durable use of the bicycles on North Shore trails and in bike parks should, however, be excluded. Due to the higher stresses, these bicycles should be checked for possible damage after every ride. Full suspension bikes with medium suspension travel are typical for this category. The E-Bike specific information is mentioned on the CE marking on your bike.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
