Mountain Bikes Cross-Country Lux Trail CFR

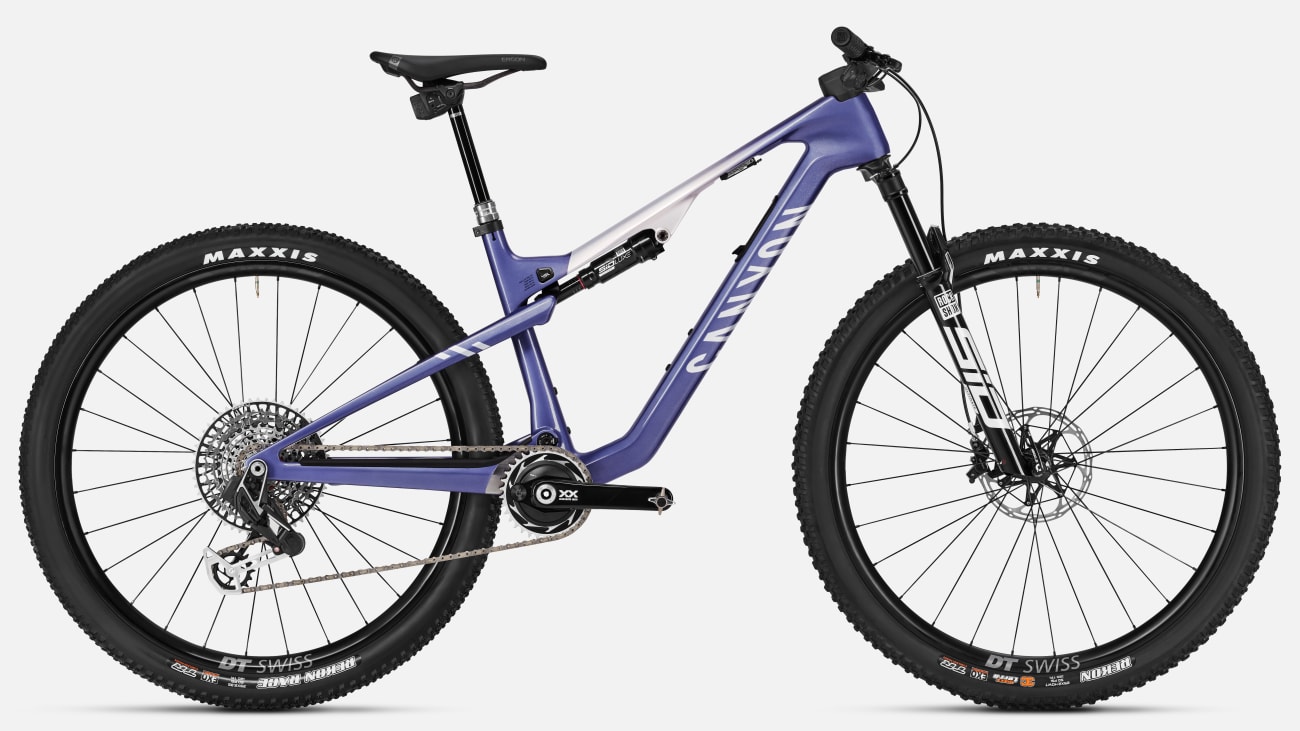

Lux Trail CFR LTD

Name: Lux Trail CFR LTD
Brand: Canyon
Price: 8149.00 EUR
Availability: InStock
Rating: 5 (6 reviews)

8.149 €

The Lux Trail CFR LTD just might be the finest down-country bike on the planet today, pairing a superlight CFR frame with pro-level wireless SRAM shifting and RockShox Ultimate suspension.

Front Fork Travel: 120 mm
Weight: 11,66 kg

Weight

Weight is based on a size medium frame.

Reviews (6)

Press and awards (1)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

8.149 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Leasing with o2o *

o2o is the perfect way to build your dream Canyon bike package and save money. Check with your employer if they are already in cooperation with o2o. Learn more

Leasing with Cyclis *

Cyclis is a bike leasing service that allows you to save up to 40% on the cost of a new bike or e-bike. Easy monthly payments mean you can spread the cost of your dream Canyon. In case of discounts, prices may differ after order processing. Cyclis is calculated using the original cost of the bike.

* The rate is calculated using the original cost of the bike.
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Stress free New Bike Day

Our most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.

How to choose New Bike Day

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Lux Trail CFR LTD

Life on the Lux Trail

Pushing what's possible

Sometimes the greatest athletes race well beyond the tape. Adventure racers are a rare breed that live for the gruelling, the punishing, and the almost impossible. The Lux Trail was chosen by Neil Phillips on his attempt to claim the Lakeland 200 FKT, for its all day comfort, efficiency on the climbs and stability in the rough stuff.

Made for doing it all day long

Ride further into the unknown than ever before with a bike that's focused on all day performance. The brand new Lux Trail lets you create your own story with its incredibly efficient geometry that inspires fast lines and smashing climbs. Conquer demanding marathon rides and beat long-standing Strava records on the most capable 120 mm bike out there.

Key features

A game changing build

The Lux Trail CFR LTD is a stunningly gorgeous bike, but it's also got the brawn to match its beauty. The wireless RockShox Reverb AXS dropper post, innovative XX SL Eagle AXS Transmission Power Meter Crankset, and extraordinary RockShox SID Ultimate are just some of the many highlights.

Formidable CFR frame

This is carbon without compromise. The super lightweight and relentlessly tough CFR frame is the epitome of industry-leading carbon engineering. Feature-packed medium frames weigh only 1,999.6 g, making the Lux Trail one of the lightest on the market – it's a work of art.

Total control linkage

Get brilliant traction and control with the Lux Trail's reactive suspension. 115 mm of rear travel is just a number, when you point it downhill it rides like a whole lot more.

The right angles

We've found the sweetspot for trail riding geometry. Steep enough seat tubes that keep you riding efficiently and comfortably all day long. And a slack enough head angle that puts you in the driving seat on long and challenging descents.

Remote lockout suspension

Quickly react to changes on the trail with the remote suspension lock-out control. The 3-position-adjustment lets you easily switch between Open, Pedal, and Locked.

Proper frame protection

Our Impact Protection Unit (IPU) helps protect your frame when you crash by preventing the bars from rotating into the top tube. A lightweight chain guide prevents chain drops on rough trails.

Clever storage

The fix is always within reach on the Lux Trail. Store a mini-tool* in the top tube and Canyon Sahmurai Sword Plug Set in the bar ends* for fast fixes. *Sold separately

Drink more water

Staying hydrated on epic marathon routes is absolutely essential. Some bikes in this category might have room for one bottle but the Lux Trail has been designed to hold two within the frame, even on XS frames. Leave your hydration pack at home and fill your bottles instead.

Components

Content is loading

Frame

Frame
- Canyon Lux CFR Trail
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
- Weight: 1,620 g
Rear Shock
- Rock Shox SIDLuxe Ultimate Remote
Suspension Fork
- Rock Shox SID Ultimate 3-Position Remote
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,480 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM XX Eagle AXS Transmission
- Weight: 450 g
Shift Lever
- SRAM AXS Pod Ultimate
- Weight: 68 g
Shift Lever
- SRAM AXS POD Ultimate
- Weight: 71 g
Cassette
- SRAM XX Eagle Transmission 10-52
- Number of sprockets: 12
Crank
- SRAM XX SL Eagle DUB
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Chain
- SRAM PowerLock

Brakes

Disc Brake
- SRAM Level Ultimate Stealth
- Number of pistons: 2
Disc Brake
- SRAM Level Ultimate Stealth 4-Piston
- Number of pistons: 4
Brake Rotor
- SRAM Centerline, 160mm
- Size: 160 mm
- Weight: 117 g
Brake Rotor
- SRAM Centerline X Rounded Edges
- Size: 180 mm
- Weight: 147 g

Wheels

Front Wheel
- DT Swiss XRC1200
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 684 g
Rear Wheel
- DT Swiss XRC1200
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Carbon
- Weight: 791 g
Tyre
- Maxxis Rekon 3C Exo 2.4
- Width: 2.4"
- Weight: 500 g
Tyre
- Maxxis Rekon Race Dual Exo 2.35
- Width: 2.35"
- Weight: 1,028 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Cockpit
- Canyon CP0037
- Material: Carbon (CF)
- Weight: 268 g

Seat

Saddle
- Ergon SM10 Pro
- Gender: Male
- Weight: 235 g
Seatpost
- Rock Shox Reverb AXS
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 710 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	628 - 723	658 - 778	683 - 828	713 - 858	743 - 888
Seat Tube Length in mm (b)	415	420	420	450	480
Top Tube Length in mm (c)	559	585	609	633	656
Head Tube Length in mm (d)	90	90	100	115	130
Head Tube Angle (e)	67°	67°	67°	67°	67°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	435	435	435	435	435
Wheel Base in mm (h)	1.129	1.155	1.180	1.206	1.232
Stack in mm (i)	589	589	598	612	626
Reach in mm (j)	412	438	460	480	500
Stand-over Height in mm (k)	768	768	772	777	783
Bottom Bracket Offset in mm (l)	38	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	50-740	50-760	50-760	50-760	50-760
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34	34
Seat Post Diameter in mm	31,6	31,6	31,6	31,6	31,6
Dropper post travel in mm	100	125	150	150	150
Seat Post Length in mm	340	390	440	440	440
Maximum Seat Post Insertion Depth in mm	175	200	225	225	225
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	120	120	120	120	120
Rear Suspension Travel in mm	115	115	115	115	115
Fitting Length	210X50	210X50	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Bike Of The Year

No other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.

Content is loading

Lux Trail CFR LTD support

-49%

Canyon Men's MTB Jersey

From 30,95 €

Original price ~~60,95 €~~

Save up to 30 €

Canyon MTB Shorts

101,95 €

Canyon Men's Longsleeve MTB Jersey

71,95 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

15,95 €

Canyon Cycling Undershort

50,95 €

Canyon MTB Pants

142,95 €

Shimano SPD PD-M8100 Deore XT Pedals

101,95 €

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
