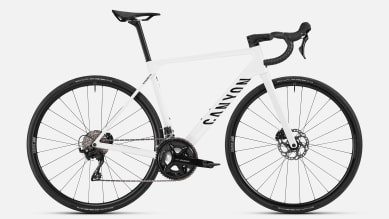

Outlet Road Outlet

Ultimate CF 7

Name: Ultimate CF 7
Brand: Canyon
Price: 2299.00 EUR
Availability: PreOrder
Rating: 5 (49 reviews)

2.299 €

Original price ~~2.499 €~~

You save 200 €

With World Championship and Grand Tour-winning design DNA, and reliable components from Shimano and DT Swiss, the Ultimate CF 7 is a classic carbon road race bike available at an unbeatable price.

Material: Carbon (CF)
Weight: 8,68 kg

Customer reviews (49)

Colour: White

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Design upgrade: some bikes ship with newer saddles featuring black rails (not pictured).

Members only product.

2.299 €

Original price ~~2.499 €~~

You save 200 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Leasing with o2o *

o2o is the perfect way to build your dream Canyon bike package and save money. Check with your employer if they are already in cooperation with o2o. Learn more

Leasing with Cyclis *

Cyclis is a bike leasing service that allows you to save up to 40% on the cost of a new bike or e-bike. Easy monthly payments mean you can spread the cost of your dream Canyon. In case of discounts, prices may differ after order processing. Cyclis is calculated using the original cost of the bike.

* The rate is calculated using the original cost of the bike.
Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount

Financing with Cetelem

Cetelem offers flexible monthly payments with a fixed interest rate.
Calculate amount
Stress free New Bike Day

Our most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.
How to choose New Bike Day

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more

Delivery: Select frame size

Highlights Ultimate CF 7

Key features

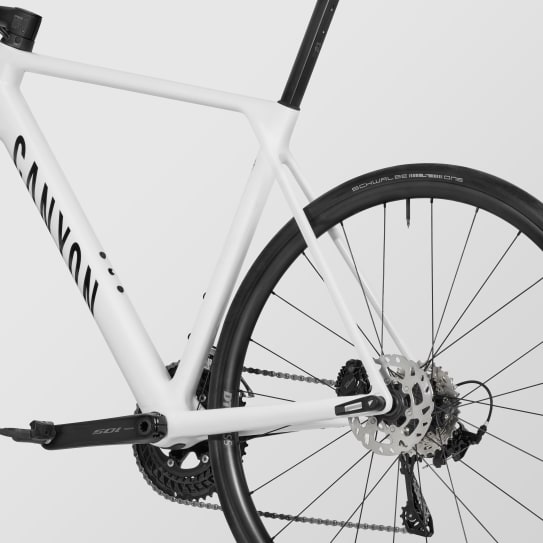

Perfect Balance

When developing the Ultimate, our goal was to strike the perfect balance between lightness, stiffness, comfort, robustness, and aerodynamics. The result? The most balanced, best-value road bike on the scene.

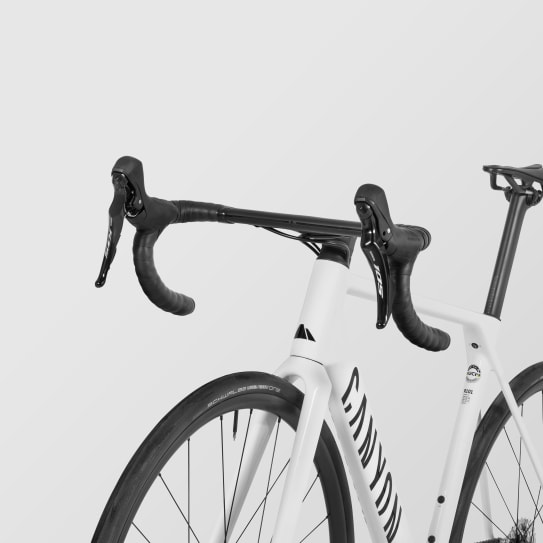

An ergonomic carbon cockpit

Developed in-house at the Canyon HQ, this lightweight, stiff aero one-piece carbon cockpit features a race-inspired design for optimal control and precision. A smooth, straight transition from the bartape edge to the top bar guarantees super-clean aesthetics. And ergonomically optimised drops make room for a tight, locked in thumb position for extra comfort and grip. Stay comfortable, stay aero, stay fast for the long haul.

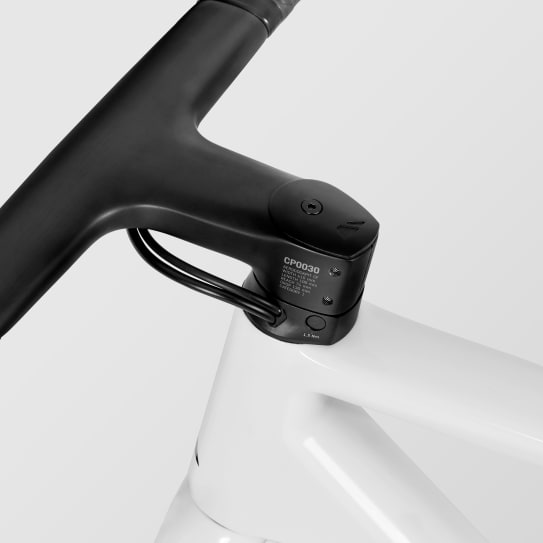

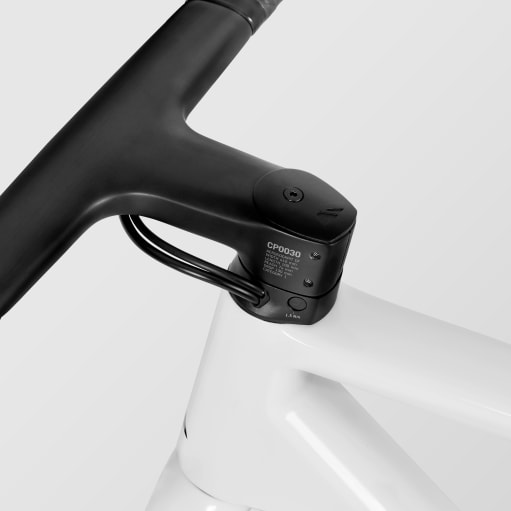

Clean cockpit: semi-integrated cables made simple

Neat, tidy, simple to maintain – with the Ultimate’s cockpit-mounted Cable Integration Unit, enjoy all of the benefits of integrated cables with none of the drawbacks. The unit discreetly routes all your cables and lines under the stem area, before leading them directly into the frame through the head tube. And the semi-integrated design means cable swaps are quick and hassle-free.

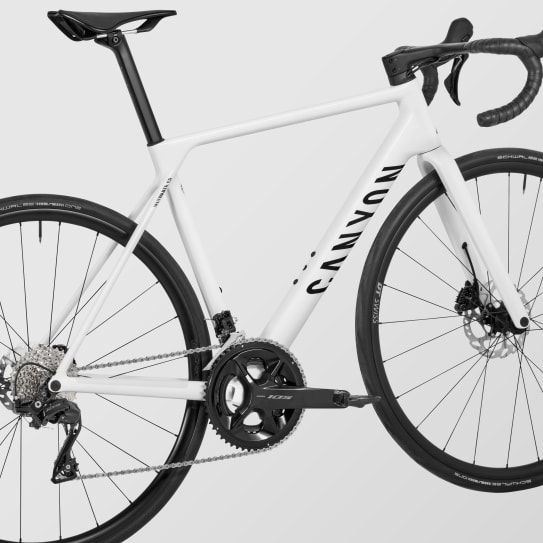

High-grade carbon layup

The CF combines the cutting-edge innovations of the SLX and CFR platforms with a carbon layup that strikes the ideal balance between durability and value. By using specially selected fibres, the carbon layup sets the benchmark in terms of toughness.

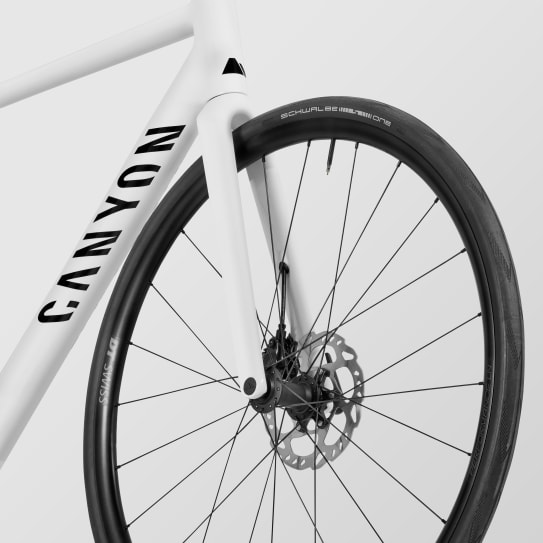

Aerodynamically optimised

On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.

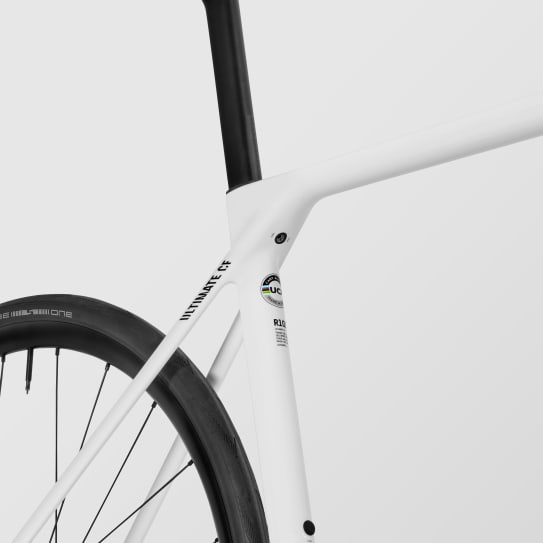

A watt-saving, comfortable carbon aero seatpost

The Ultimate looks even cleaner and sleeker with this clamp design. The clamp is hidden away in the seat tube, so there’s no extra drag. We combine it with a D-shaped seatpost to reduce air resistance in the seat tube area to an absolute minimum. Plus, it’s also simple to adjust so you can easily find your perfect riding position thanks to independent setback and tilt adjustment.

Components

Content is loading

Frame

Frame
- Canyon Ultimate CF
- Our latest 5th-generation Ultimate frame.
- Axle dimension 12x142 mm
- Tyre clearance 33 mm
- Material Carbon (CF)
- Weight 1,104 g
Frame
- Canyon Ultimate CF
- Axle dimension 12x142 mm
- Tyre clearance 33 mm
- Material Carbon (CF)
- Weight 1,104 g
Fork
- Canyon FK0141 CF Disc
- Lightweight, stiff, wind tunnel-optimised full-carbon fork.
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/4"
- Tyre clearance 33 mm
- Material Carbon (CF)
- Weight 410 g
Fork
- Canyon FK0141 CF Disc
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/4"
- Tyre clearance 33 mm
- Material Carbon (CF)
- Weight 410 g
Seatpost Clamp
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails
Seatpost Clamp
- Spring

Drivetrain

Rear Derailleur
- Shimano 105 RD-R7100 12s
- Weight 247 g
Front Derailleur
- Shimano 105 FD-R7100
- Weight 95 g
Cassette
- Shimano 105 R7101 11-34 12s
- Number of sprockets 12
- Range 11-34
Crank
- Shimano 105 Crankset
- Number of chainrings 2
Bottom bracket
- Shimano Pressfit BB-RS500
- Bottom bracket standard PF 86
- Weight 81 g
Chain
- Shimano CN-M7100 12s

Brakes

Shift-/ Brake Lever
- Shimano 105 R7120 2s
- Number of pistons 2
- Weight 306 g
Shift-/ Brake Lever
- Shimano 105 R7120 12s
- Number of pistons 2
- Weight 332 g
Brake Rotor
- Shimano Bremsscheibe
- Size 140 mm
- Weight 134 g
Brake Rotor
- Shimano SM-RT70
- Size 160 mm
- Weight 147 g

Wheels

Front Wheel
- DT Swiss Performance LN
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 20 mm
- Inner width 20 mm
- Rim material Aluminium
- Weight 837 g
Rear Wheel
- DT Swiss Performance LN HG
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim height 20 mm
- Inner width 20 mm
- Rim material Aluminium
- Weight 984 g
Tyre
- Schwalbe One Tire 28mm
- Width 28 mm
- Weight 360 g
Thru Axle
- Canyon Thru Axle
- Axle dimension 12x100 mm
Thru Axle
- Canyon Thru Axle
- Axle dimension 12x142 mm

Cockpit

Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
- Material carbon
- Shape Ergo
- Reach 74 mm
- Drop 130 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color Black

Seat

Saddle
- Selle Italia Model X
- Width 145 mm
- Gender Unisex
- Weight 310 g
Seatpost
- Canyon SP0094 CF
- Comfortable, compliant, lightweight carbon seatpost.
- Setback 10 mm
- Material Carbon (CF)
- Weight 118 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Seat Height in mm (a)	622 - 722	652 - 752	682 - 782	712 - 812	742 - 842	772 - 872	802 - 902
Seat Tube Length in mm (b)	420	450	480	510	540	570	600
Top Tube Length in mm (c)	513	529	546	555	569	594	610
Head Tube Length in mm (d)	88	107	121	142	162	188	206
Head Tube Angle (e)	71,5°	71,2°	72,8°	73,25°	73,3°	73,5°	73,8°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	405	410	410	410	413	415	415
Wheel Base in mm (h)	964	979	983	987	1.004	1.029	1.042
Stack in mm (i)	490	520	539	560	580	606	624
Reach in mm (j)	372	378	390	393	401	419	429
Stand-over Height in mm (k)	720	748	775	801	828	851	874
Bottom Bracket Offset in mm (l)	60	73	73	73	73	73	73
Stack+ in mm	572	596	613	635	656	681	701
Reach+ in mm	430	445	459	473	491	509	530
Effective stack in mm (O): Vertical distance between the bottom bracket and the hand position Learn more	576	608	622	643	664	689	707
Effective reach in mm (P): Horizontal distance between the bottom bracket and the hand position Learn more	527	543	557	571	589	607	627

Component geometry

Detailed geometry table

Spacer in mm	18	18	18	18	18	18	18
Cockpit Dimensions in mm	80-370	90-390	90-390	100-410	110-410	110-410	120-430
Crank Length in mm	165,0	170,0	170,0	172,5	172,5	175,0	175,0
Chainring Size	52/36	52/36	52/36	52/36	52/36	52/36	52/36
Seat Post Length in mm	349	349	349	349	349	349	349
Maximum Seat Post Insertion Depth in mm	195	195	195	195	195	195	195
Minimum Seat Post Insertion Depth in mm	95	95	95	95	95	95	95
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	140 / 140	160 / 140	160 / 140	160 / 140	160 / 160	160 / 160
Rim height in mm	20	20	20	20	20	20	20

Download PDF

Content is loading

Ultimate CF 7 support

Canyon Bikestand

59,99 €

Canyon Tempr CFR Road Cycling Shoes

299,99 €

-35%
Weather-ready

Canyon Men's PocketLight Rain Jacket Race Fit

129,99 €

Original price ~~199,99 €~~

You save 70 €

Canyon Disruptr CFR Helmet

199,99 €

Canyon Men's Baselayer Light

39,99 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

14,99 €

Canyon CORE Men's Cycling Jersey

89,99 €

Canyon CORE Men's Bibshorts

109,99 €

Canyon CFR Women's Bibshorts

199,99 €

Canyon FIX Minitool 6+1

16,99 €

Canyon CFR Women's Longsleeve Cycling Jersey

159,99 €

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
