Mountain Bikes Trail Neuron CF

Neuron CF 9

4,899 US$

Neuron CF 9 is our ultimate all round MTB
Lightweight yet tough carbon fibre frame
Comfort and control optimised 130mm suspension
Lightweight, ultra controlled Fox 36 SL Factory 140mm fork
SRAM X0 Eagle AXS Transmission for perfect wireless shifting

Front Fork Travel: 140 mm
Weight: 13.46 kg

Customer reviews (3)

Press and awards (1)

Colour: Slate Silver

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

4,899 US$

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.

Delivery: Select frame size

Highlights Neuron CF 9

Adventure awaits

Everyday escapes

Define your own adventure with an all-rounder that was built to escape. Choose balanced geometry, efficient performance, and a durable frame.

A Welsh epic

See how Vedangi Kulkarni plotted her adventure across North Wales on singletrack trails and gravel paths with her Neuron. Learn more

Key features

Intuitive handling

The Neuron impresses with its intuitive handling and inspires you to confidently set off for new horizons. It sits quietly on the trail and smoothly insulates you from impacts so you can go with the flow.

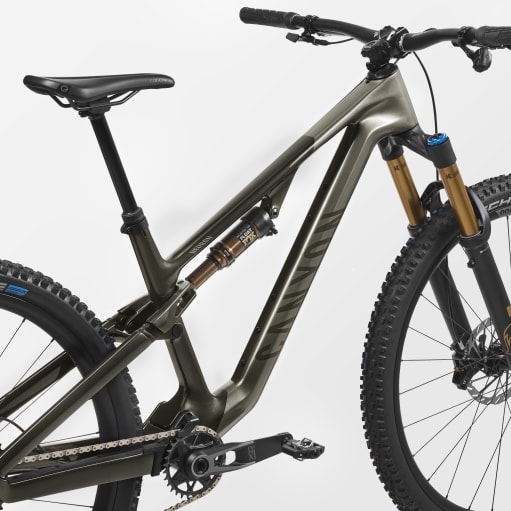

Geometry & wheels

Stability and control in technical terrain and on trails, a capable and confidence inspiring geometry for the Neuron on 29er Wheels (M- XL) and smaller wheels for smaller riders (650B on XS and S):66° Head Tube angle, 76° Seat Tube Angle, 455mm Reach (Size M). For more details check out the geometry table.

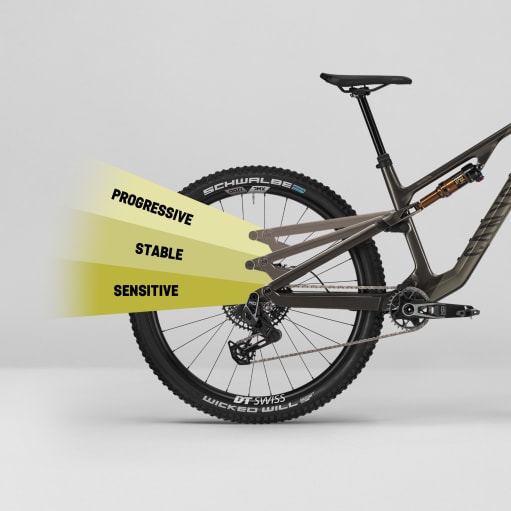

Triple Phase Suspension

The Neuron CF is equipped with Triple Phase Suspension that ensures optimal control during your ride. The leverage curve features small bump sensitivity at the start for incredible traction. Mid-stroke stability delivers speed and momentum to push through compressions and jump over features. On bigger hits, the suspension ramps up progressively to avoid bottoming out making for an overall smoother and more comfortable ride.

Integrated chainstay protection and chain guide

Thanks to the integrated chain guide, your chain will stay secure while riding tough trails, giving you peace of mind while you focus on the ride. The bike also boasts a chainstay protector that eliminates annoying chain slap noises while protecting the rear triangle. The noise-dampening rubber compound of the chainstay protector reduces unnecessary noise while riding. Both the guide and protectors are adjustable to suit various chainring sizes ranging from 28-34T for greater flexibility depending on your ride style.

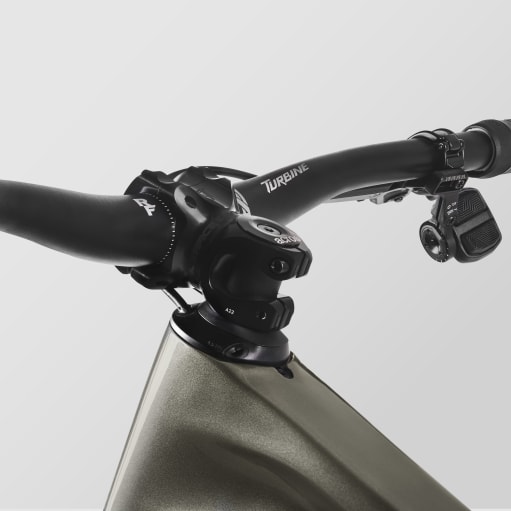

Clean and simple internal cable routing

The Neuron CF has been designed with clean and simple internal cable routing, providing a sleek and tidy look. However, it isn't just about aesthetics as pre-installed internal guides make cable installation a breeze. Pushing the cable through the guides makes installation quick and straightforward. The design minimizes any internal bending and protects the cables from debris and mud. Additionally, all entry points have been expertly sealed, providing extra protection from dirt and grime during rides.

Ready to drop

All Neuron bikes come with a dropper seat post as standard. This lets you choose your perfect saddle position for both efficient pedalling or easy body weight movement for poise and balance on technical trails. Short seat tubes allow you to run longer-travel dropper posts to maximise this control and also make stopping and starting on steep slopes easier.

Components

Content is loading

Frame

Frame
- Canyon Neuron
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 2,460 g
Rear Shock
- FOX Float Factory
Suspension Fork
- FOX 36 SL Factory
- Axle dimension 15x110 mm
- Stanchion Diameter 36 mm
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
- Weight 1,988 g
Seatpost Clamp
- Canyon SC0001

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM X0 Eagle AXS Transmission
- Weight 445 g
Chainguard
- Canyon EP1538-01 Chain Guide
Shift Lever
- SRAM AXS Pod
- Weight 67 g
Cassette
- SRAM XS-1275
- Number of sprockets 12
- Range 10-52
Crank
- SRAM X0 crank
- Number of chainrings 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard BSA 73
- Weight 78 g
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Motive Silver
Disc Brake
- SRAM Motive Silver
Brake Rotor
- SRAM HS2 Rounded
- Size 180 mm
- Weight 212 g

Wheels

Front Wheel
- DT Swiss XMC1700
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Weight 843 g
Rear Wheel
- DT Swiss XMC 1700 Spline
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Inner width 30 mm
- Weight 989 g
Tyre
- Schwalbe Nobby Nic
- Width 2.4"
- Weight 836 g
Tyre
- Schwalbe Wicked Will
- Width 2.4"
- Weight 890 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Race Face Turbine R
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
Handlebar
- Race Face Turbine
- Clamping diameter 35,0 mm
- Rise 20 mm
Grips
- Ergon GE10 Evo Slim

Seat

Saddle
- Ergon SM10 Enduro
- Gender Unisex
- Weight 314 g
Seatpost
- Canyon G5
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 534 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quickstart Guide Neuron CF
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 168	163 - 177	172 - 185	180 - 194	≥ 189
Seat Height in mm (a)	630 - 765	650 - 775	685 - 810	750 - 875	790 - 915
Seat Tube Length in mm (b)	390	390	425	460	500
Top Tube Length in mm (c)	556	579	611	639	674
Head Tube Length in mm (d)	90	100	110	125	143
Head Tube Angle (e)	66°	66°	66°	66°	66°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	430	430	440	440	440
Wheel Base in mm (h)	1.139	1.164	1.203	1.234	1.271
Stack in mm (i)	587	596	626	639	656
Reach in mm (j)	410	430	455	480	510
Stand-over Height in mm (k)	756	759	777	783	790
Bottom Bracket Offset in mm (l)	18	18	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15	15
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	150	170	170	200	200
Seat Post Length in mm	417	457	457	517	517
Maximum Seat Post Insertion Depth in mm	225	245	245	275	275
Minimum Seat Post Insertion Depth in mm	90	120	120	150	150
Wheel Size	27.5"	27.5"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Rear Suspension Travel in mm	130	130	130	130	130
Fitting Length	190X45	190X45	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Content is loading

Neuron CF 9 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
