Aeroad CF SLX Frame-Brake-Kit AXS
- High-end Aeroad CF SLX carbon frame
- Identical aerodynamics to the pro-level CFR
- The optimum basis for your next world-class aero bike build
- A serious starting point for riders chasing a fast, race-ready build
- Pre-fitted SRAM Rival shifters and brakes for clean, reliable wireless shifting
- Pro-inspired aerodynamics
- Slammed, adjustable CP0015 carbon cockpit
- Watt-saving, lightweight carbon seatpost
-
Weight:
3.03 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
- Colour: Pro White
-
- Colour: Fast Fruit
-
Members only product. Log in here
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Highlights Aeroad CF SLX Frame-Brake-Kit AXS

Aero for everyone

Balanced geometry

A pro-level cockpit
Frame
-
Frame
- Canyon Aeroad CF SLX Disc
- Lightweight carbon aero road racing frame with the same design and innovations as the flagship Aeroad CFR. Shaped by extensive supercomputer analysis, validated in the wind tunnel.
- Axle dimension: 12x142 mm
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 1,080 g
-
Fork
- Canyon FK0060 CF Disc
- Aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 330 g
Brakes
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS HRD 2s
- Number of pistons: 2
- Weight: 283 g
-
Shift-/ Brake Lever
- SRAM Rival eTap AXS 12s
- Number of pistons: 2
- Weight: 468 g
Wheels
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

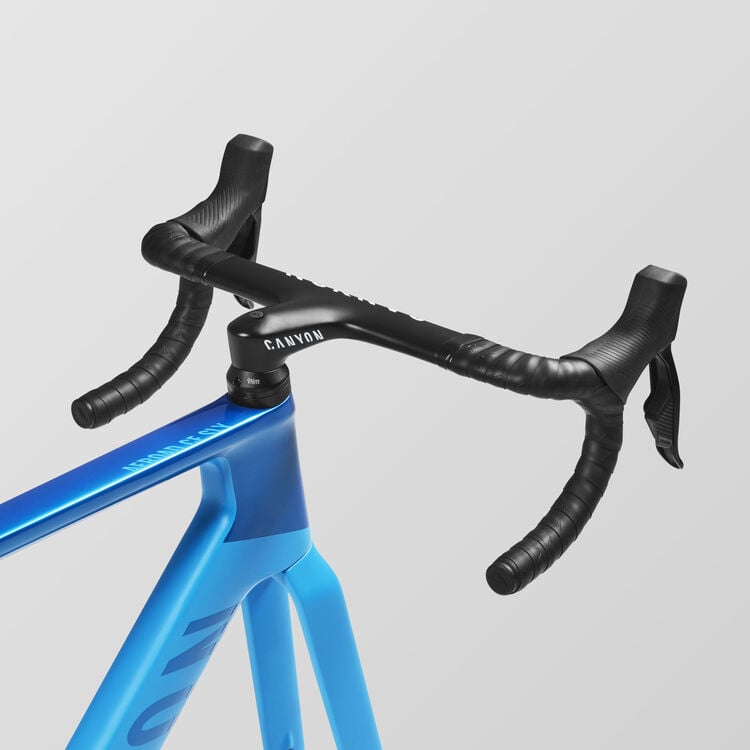

Cockpit
-
Cockpit
- Canyon CP0015 Aerocockpit
- Material: Carbon (CF)
- Weight: 220 g
-
Handlebar Tape
- Handlebartape 270cm without plug
- Color: black
Seat
-
Seatpost
- Canyon SP0046 Aero Seatpost
- Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 10 g
-
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7
Accessories
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick start guide V07 Aeroad
-
Manuals and Accessories
- Canyon starter box
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
624 - 704 | 654 - 734 | 684 - 764 | 714 - 794 | 744 - 824 | 774 - 854 | 804 - 884 |
Seat Tube Length in mm
(b)
|
443 | 473 | 503 | 533 | 563 | 593 | 623 |
Top Tube Length in mm
(c)
|
520 | 533 | 549 | 559 | 572 | 598 | 613 |
Head Tube Length in mm
(d)
|
86 | 109 | 126 | 147 | 167 | 193 | 211 |
Head Tube Angle
(e)
|
70,5° | 71,5° | 72,75° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
410 | 410 | 410 | 410 | 410 | 410 | 410 |
Wheel Base in mm
(h)
|
971 | 976 | 983 | 988 | 1.001 | 1.024 | 1.037 |
Stack in mm
(i)
|
498 | 521 | 539 | 560 | 580 | 606 | 624 |
Reach in mm
(j)
|
372 | 378 | 390 | 393 | 401 | 419 | 429 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
582 | 604 | 619 | 640 | 661 | 686 | 704 |
Reach+ in mm
|
520 | 538 | 551 | 562 | 580 | 598 | 618 |
Spacer in mm
|
30 | 30 | 30 | 30 | 30 | 30 | 30 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
202 | 202 | 202 | 202 | 202 | 202 | 202 |
Minimum Seat Post Insertion Depth in mm
|
122 | 122 | 122 | 122 | 122 | 122 | 122 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Aeroad CF SLX Frame-Brake-Kit AXS support
Other riders also bought
- Colour: black/white
- Colour: white/black
- Colour: black/grey
- Colour: white/grey
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
