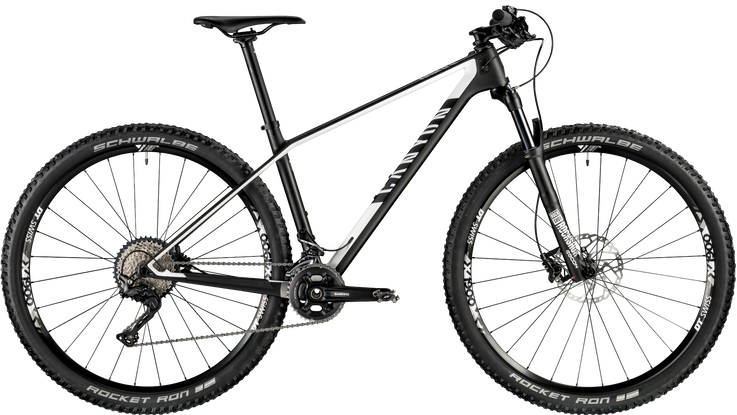

Exceed CF SL 6.0

This bike epitomizes the next level of XC and marathon riding, at a price that makes it attainable. The nimble handling is advantageous on technical trails and the durable, lightweight carbon frame makes those steep climbs a little bit easier. Equipped with race-ready components, the Exceed CF SL 6.0 is ready to ride.

Front Fork Travel: 100 mm
Weight: 11.4 kg

All components

Product Configuration

Colour:

team black

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Buying reasons

Sold out

Highlights Exceed CF SL 6.0

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Exceed CF SL
- null
- null
- null
Suspension Fork
- RockShox Recon RL
- null
- null

Drivetrain

Rear Derailleur
- Shimano Deore XT, 11-fach
- null
- null
Front Derailleur
- Shimano SLX M7020
- null
Shift Lever
- Shimano SLX M7000 2/3s
- null
Shift Lever
- Shimano SLX M7000 11s
- null
Cassette
- Shimano SLX M7000 11-42 11s
- null
Crank
- Shimano MT600 36/26
- null
Bottom bracket
- Shimano Pressfit BB71
- null
- null
Chain
- Shimano HG601 11-speed
- null

Brakes

Disc Brake
- Shimano MT500
Disc Brake
- Shimano MT500
Brake Rotor
- Shimano RT66
- null
- null
Brake Rotor
- Shimano RT66
- null
- null

Wheels

Front Wheel
- DT Swiss X 1900
- null
Rear Wheel
- DT Swiss X 1900 SH11
- null
Tyre
- Schwalbe Rocket Ron 2.25''
- null
- null
Thru Axle
- Canyon Quixle

Cockpit

Stem
- Iridium
- null
- null
Handlebar
- Iridium Flatbar
- null
- null
- null
Grips
- Canyon push-on Grips

Seat

Saddle
- Selle Italia X1
- null
- null
Seatpost
- SP HL C255 400 30,9
- null
- null
- null
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 172	172 - 182	182 - 192	≥ 192
a Seat Height in mm	473 - 753	518 - 798	563 - 843	623 - 903
b Seat Tube Length in mm	395	440	485	545
c Top Tube Length in mm	568	600	620	650
d Head Tube Length in mm	87	97	112	142
e Head Tube Angle	69,5°	69,5°	69,5°	69,5°
f Seat Tube Angle	72,7°	72,8°	72,9°	72,9°
g Chainstay Length in mm	432	427	432	442
h Wheel Base in mm	1.078	1.111	1.138	1.175
i Stack in mm	604	611	625	653
j Reach in mm	395	425	441	463
k Stand-over Height in mm	763	791	822	866
l Bottom Bracket Offset in mm	65	63	63	63

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15,0	15,0	15,0	15,0
Stem Length in mm	70	80	90	100
Handlebar Width in mm	720	720	720	720
Crank Length in mm	170,0	175,0	175,0	175,0
Chainring Size	36/26	36/26	36/26	36/26
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Seat Post Length in mm	400	400	400	400
Maximum Seat Post Insertion Depth in mm	370	370	370	370
Minimum Seat Post Insertion Depth in mm	90	90	90	90
Wheel Size	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100

Download PDF

Exceed CF SL 6.0 support

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
