Endurace 6

This build pairs disc brake control with our latest high-performance Endurace aluminium frame. Featuring our class-leading comfortable-yet-quick geometry as well as rock-solid components, get everything you need for your most ambitious road tours.

Reviews (100)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Crank information: Learn more

Members only product.

Sold out

Highlights Endurace 6

Key features

Top tube rivets

For extra storage, securely screw on a top tube box. The universal mount size fits all standard top tube boxes.

Alloy frame, carbon aesthetics

This frame combines the practical benefits of aluminium with a look that’s almost as good as carbon. We do it by expertly filing down and sanding the welding seams, so they’re almost invisible to the casual observer.

35 mm tyre clearance

The Endurace comes with wide road tyres, for more grip and comfort on the asphalt. Want even more comfort and off-road grip? With 35 mm of clearance, ride chunkier all-road rubber and you’re good to go.

Components

Content is loading

Frame

Frame
- Canyon Endurace AL Disc
- Aluminiumendurance road bike with proven comfortable-yet-agile Sport Geometry for long-distance riding.
- Axle dimension: 12x142 mm
- Tyre clearance: 36 mm
- Material: Aluminium (AL)
- Weight: 1,250 g

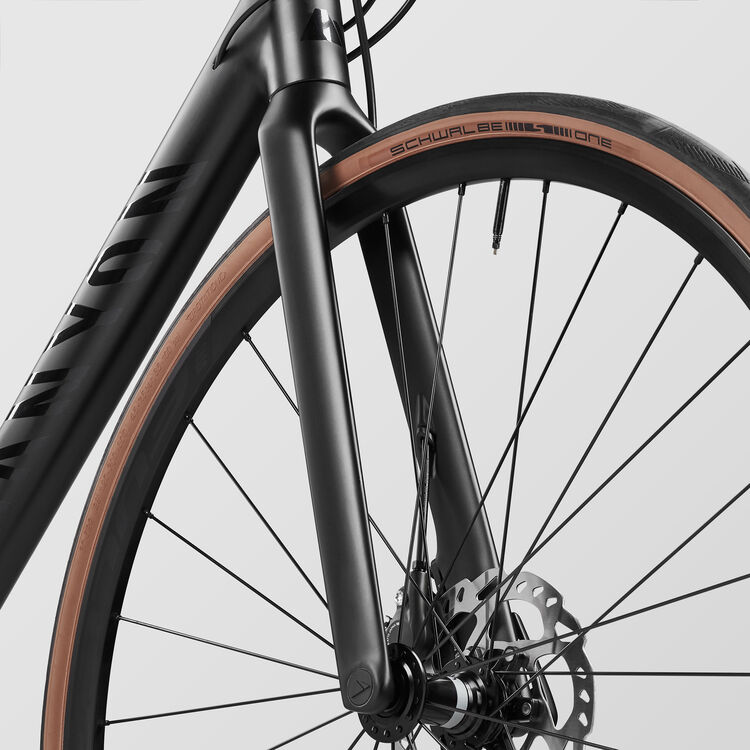

Fork
- Canyon FK0089 CF Disc
- Lightweight carbon fork with comfortable, vibration-damping design.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 36 mm
- Material: Carbon (CF)
- Weight: 390 g

Drivetrain

Rear Derailleur
- Shimano Tiagra R4720
- Cage length: medium
- Weight: 275 g
Front Derailleur
- Shimano Tiagra 4700
- Weight: 107 g
Cassette
- Shimano HG500 11-34 10s
- Number of sprockets: 10
- Range: 11-34
Crank
- Rotor Canyon LTD, 50/34
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
Chain
- KMC Connection Link 10s
Chain
- KMC X10-93 10s

Brakes

Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano R4720 2s
- Weight: 621 g
Shift-/ Brake Lever
- Shimano Tiagra R4720 10s
- Weight: 621 g
Brake Rotor
- Shimano SM-RT70
- Size: 160 mm
- Weight: 147 g

Wheels

Front Wheel
- Fulcrum Racing 900 DB
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 24 mm
- Weight: 891 g
Rear Wheel
- Fulcrum Racing 900 DB SH11
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 24 mm
- Weight: 1,096 g
Tyre
- Schwalbe One, 30mm
- Width: 30 mm
- Weight: 325 g
Tyre
- Schwalbe One, 32mm
- Width: 32 mm
- Weight: 292 g
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x100 mm
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x142 mm

Cockpit

Stem
- Canyon V13
- High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness.
- Clamp diameter: 31.8 mm
- Head tube diameter: 1 1/4”
Handlebar
- Canyon H17 Ergobar AL
- Ergonomic aluminium handlebar with curved design for optimal pressure distribution.
- Material: Aluminium
- Shape: Ergo
- Reach: 70 mm
- Drop: 130 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
Seatpost
- Iridium Seatpost
- Seatpost diameter: 27,2 mm
- Material: Aluminium (AL)
- Weight: 287 g
Seat Clamp
- Canyon Clamp SL

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 158	158 - 164	164 - 170	170 - 177	177 - 184	184 - 191	191 - 197	≥ 197
Seat Height in mm (a)	590 - 690	620 - 720	650 - 750	680 - 780	710 - 810	740 - 840	770 - 870	800 - 900
Seat Tube Length in mm (b)	402	432	462	492	522	552	582	612
Top Tube Length in mm (c)	501	511	532	543	553	568	594	609
Head Tube Length in mm (d)	122	139	128	145	164	186	213	232
Head Tube Angle (e)	70,5°	71,5°	71°	72°	73°	73°	73,25°	73,25°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	405	405	415	415	415	415	415	415
Wheel Base in mm (h)	957	958	989	991	990	1.006	1.029	1.044
Stack in mm (i)	510	529	548	568	590	611	637	656
Reach in mm (j)	350	354	370	375	378	387	405	414
Stand-over Height in mm (k)	681	691	744	774	800	827	852	878
Bottom Bracket Offset in mm (l)	60	60	73	73	73	73	73	73
Stack+ in mm	607	627	646	668	690	713	739	760
Reach+ in mm	394	409	425	441	455	474	493	512

Component geometry

Detailed geometry table

Spacer in mm	27,5	27,5	27,5	27,5	27,5	27,5	27,5	27,5
Stem Length in mm	80	80	80	90	100	110	110	120
Handlebar Width in mm	380	380	400	420	420	440	440	440
Crank Length in mm	165,0	165,0	170,0	172,5	172,5	175,0	175,0	175,0
Chainring Size	50/34	50/34	50/34	50/34	50/34	50/34	50/34	50/34
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	330	330	330	330	330	330	330	330
Maximum Seat Post Insertion Depth in mm	190	190	190	190	190	190	190	190
Minimum Seat Post Insertion Depth in mm	90	90	90	90	90	90	90	90
Wheel Size	27.5"	27.5"	28"	28"	28"	28"	28"	28"
Disc Size in mm	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160

Download PDF

Content is loading

Endurace 6 support

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
