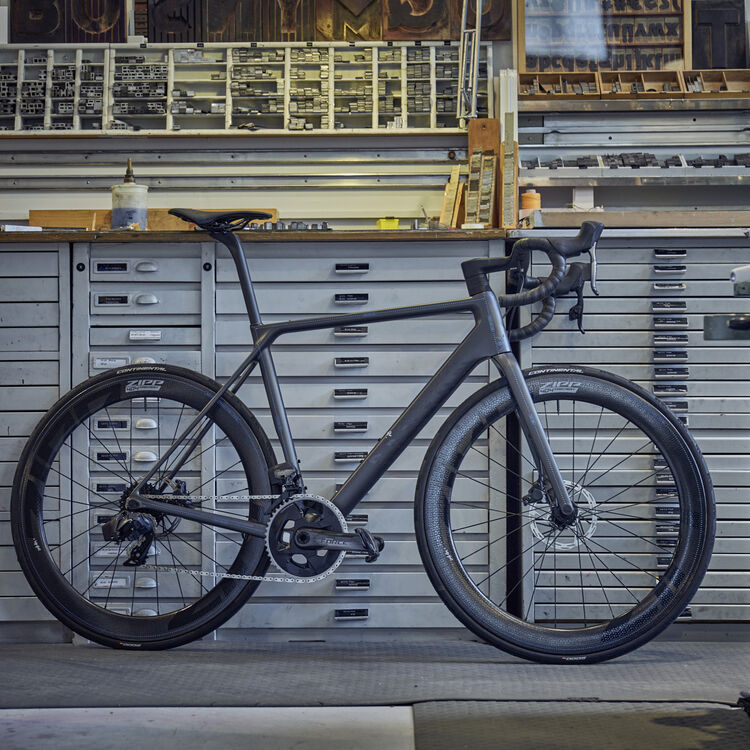

Ultimate CF SLX 8 Disc LTD III
- Material: Carbon (CF)
-
Weight:
7.59 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Highlights Ultimate CF SLX 8 Disc LTD III

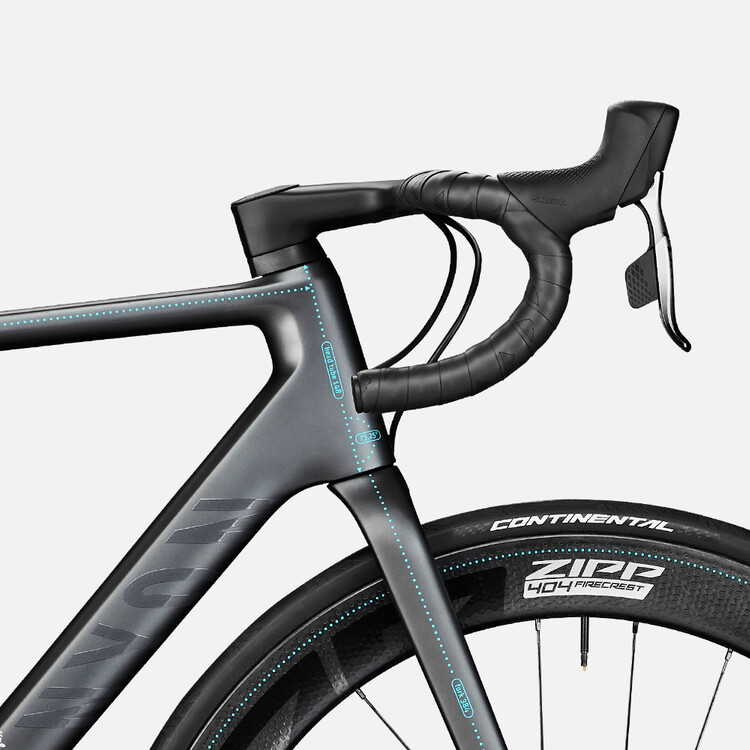

Top Tube Tech Box

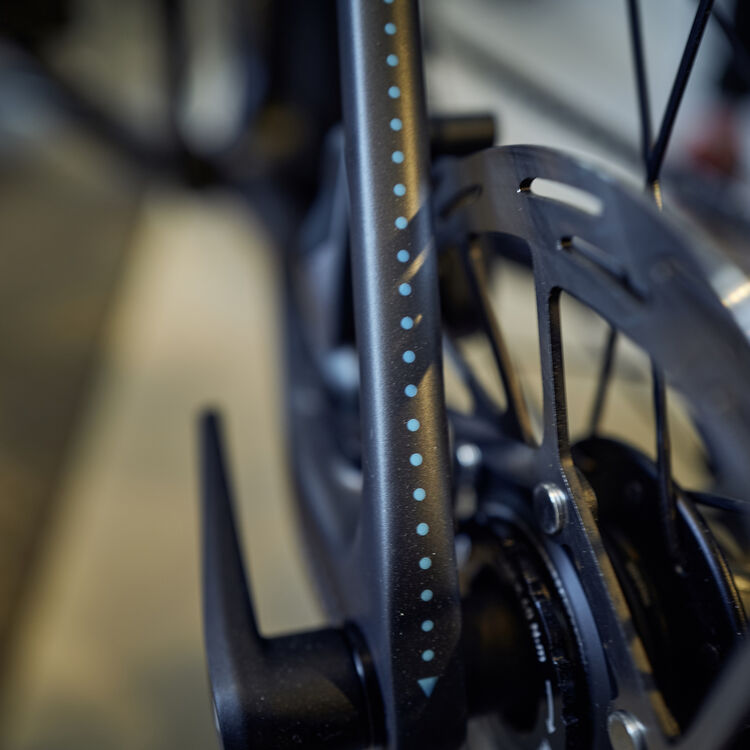

Lacquered front wheel

Signed by hand
Frame
-
Frame
- Canyon Ultimate CF SLX Disc
- Superlight carbon road racing frame, engineered to deliver the perfect balance of lightness, stiffness, aerodynamics, comfort, and toughness.
- Pro-level road race bike frame proven at the highest levels of racing.
- Material: carbon
- Axle dimensions: 12 x 142 mm
- Brake mount: flat mount
- Weight: 850 g
-
Fork
- Canyon F38 CF Disc
- High-end carbon road bike fork designed to deliver optimal strength and stiffness-to-weight.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"
- Tyre clearance: 31 mm
- Material: Carbon (CF)
- Weight: 362 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM Force eTap AXS
- Weight: 301 g
-
Front Derailleur
- SRAM Force eTap AXS
- Weight: 162 g
-
Cassette
- SRAM Force XG-1270, 12-speed, 10-28T
- Number of sprockets: 12
-
Crank
- SRAM Force D1
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM FORCE D1 12-speed
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM Force eTap AXS HRD 2s
- Weight: 605 g
-
Shift-/ Brake Lever
- SRAM Force eTap AXS HRD 12s
- Weight: 610 g
-
Brake Rotor
- SRAM Paceline
- Size: 160 mm
- Weight: 159 g
Wheels
-
Front Wheel
- ZIPP 404 Firecrest
- Rotor mount: Center Lock
- Rim height: 58 mm
-
Rear Wheel
- ZIPP 404 Firecrest
- Rotor mount: Center Lock
- Rim height: 58 mm
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0030 Aerocockpit
- One-piece carbon cockpit integrating bar and stem into a single sleek unit.
- Material: carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 181 g
-
Seatpost
- Canyon S13 VCLS CF
- Material: Carbon
- Setback: 15 - 35 mm
- Technology: VCLS
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Note about Cockpit Clamp H31
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- CAYN ULT BRANDBOOKLET SPIEKERMANN
-
Manuals and Accessories
- Endurace Quick Start Guide
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
620 - 720 | 653 - 753 | 680 - 780 | 708 - 808 | 740 - 840 | 770 - 870 | 800 - 900 |
Seat Tube Length in mm
(b)
|
434 | 467 | 494 | 522 | 554 | 584 | 614 |
Top Tube Length in mm
(c)
|
513 | 529 | 543 | 556 | 571 | 596 | 612 |
Head Tube Length in mm
(d)
|
89 | 107 | 130 | 148 | 174 | 195 | 213 |
Head Tube Angle
(e)
|
69,6° | 71° | 72,25° | 73,25° | 73,25° | 73,5° | 73,75° |
Seat Tube Angle
(f)
|
73,9° | 73,8° | 73,8° | 73,8° | 73,8° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
983 | 988 | 993 | 996 | 1.011 | 1.034 | 1.046 |
Stack in mm
(i)
|
500 | 522 | 546 | 567 | 592 | 613 | 631 |
Reach in mm
(j)
|
368 | 378 | 385 | 391 | 399 | 418 | 428 |
Stand-over Height in mm
(k)
|
720 | 748 | 775 | 801 | 828 | 851 | 874 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
567 | 587 | 612 | 633 | 660 | 681 | 700 |
Reach+ in mm
|
433 | 444 | 462 | 479 | 497 | 516 | 536 |
Spacer in mm
|
18 | 18 | 18 | 18 | 18 | 18 | 18 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
80-370 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-430 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
48/35 | 48/35 | 48/35 | 48/35 | 48/35 | 48/35 | 48/35 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
345 | 345 | 345 | 345 | 345 | 345 | 345 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Ultimate CF SLX 8 Disc LTD III support
Other riders also bought
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
