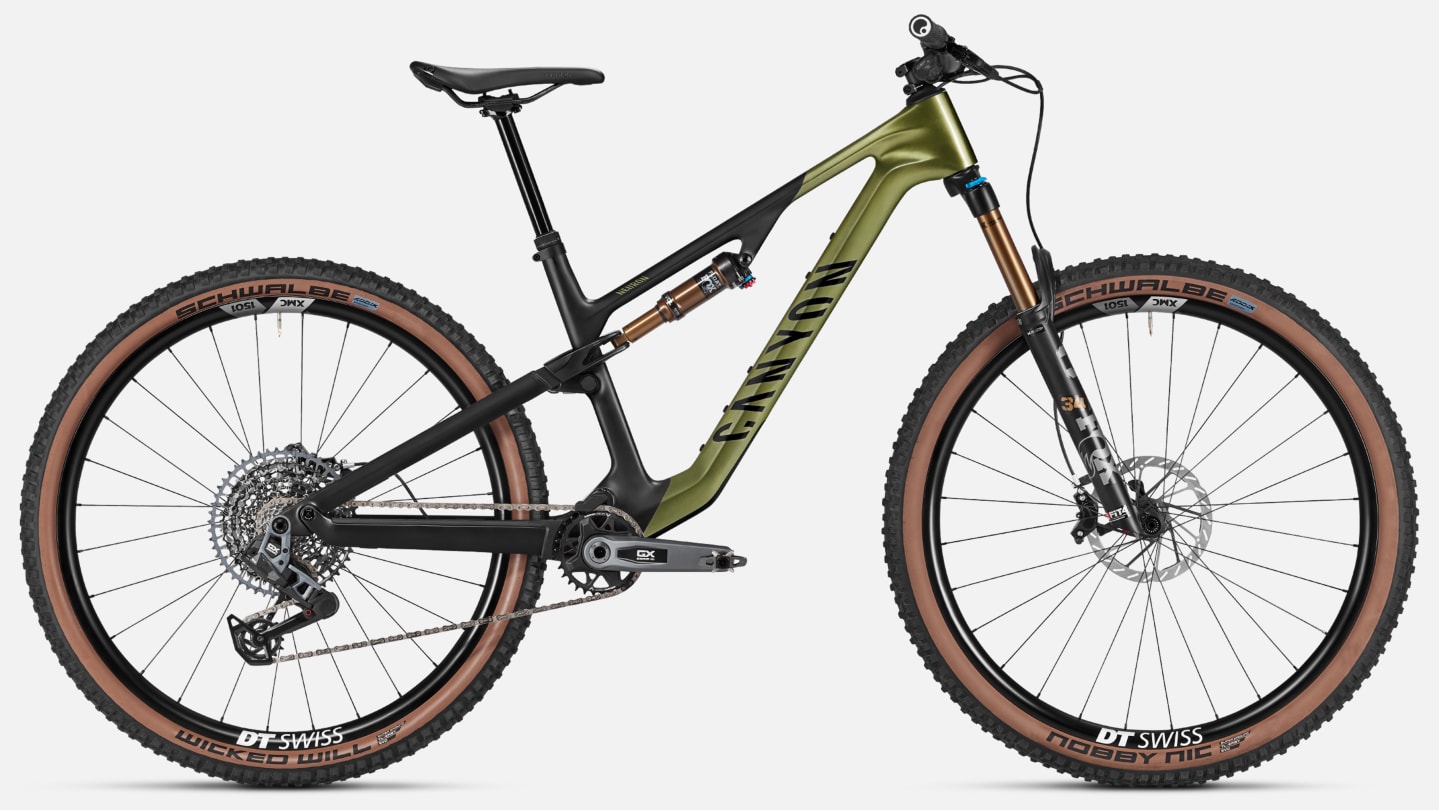

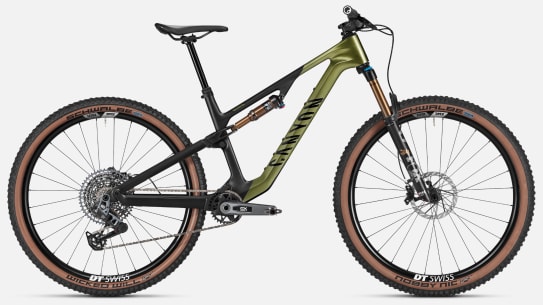

Neuron CF 9 SL

Out of stock

3.639 €

Original price ~~4.549 €~~

You save 910 € (-20%)

Conquer trails like never before and experience the ultimate ride with the Neuron CF 9 SL. This exceptional trail bike delivers high-level performance on any terrain with its lightweight carbon frame and revolutionary new SRAM GX Eagle AXS Transmission.

Front Fork Travel: 140 mm
Weight: 13.1 kg

Customer reviews (11)

Press and awards (1)

Members only product.

3.639 €

Original price ~~4.549 €~~

You save 910 € (-20%)

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

Delivery: Select frame size

Highlights Neuron CF 9 SL

Key features

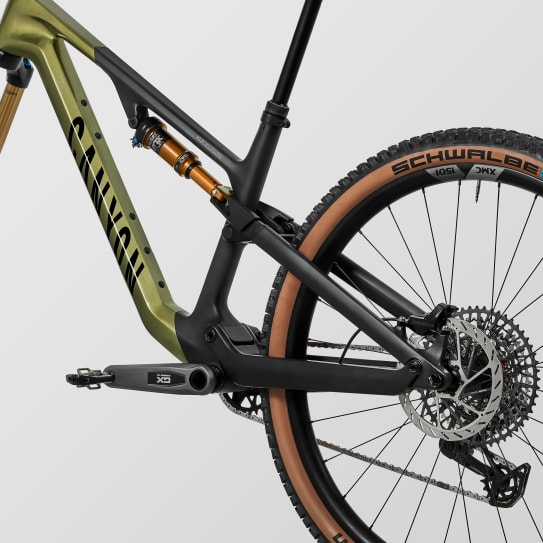

Triple Phase Suspension

The first stage of the suspension absorbs small bumps on the trail for improved grip and control, while the second phase provides mid-stroke stability to maintain momentum at high speeds. Finally, the third phase ramps up progressively to prevent bottoming out on big hits. The result is a smooth and predictable ride that gives you the confidence to tackle even the most challenging terrain.

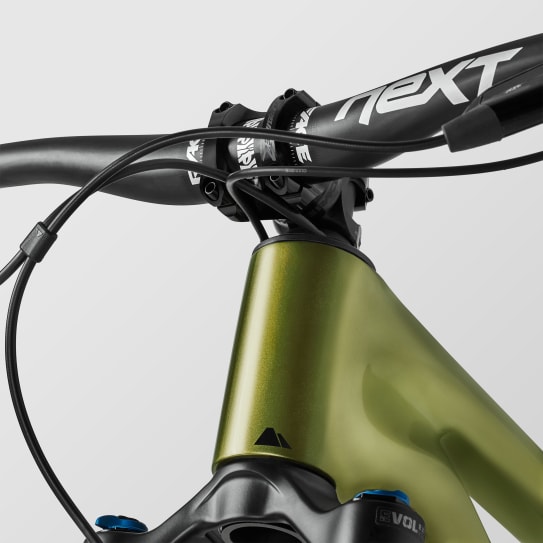

Clean and Simple Internal Cable Routing

With pre-installed internal guides that make installation a breeze, this minimalist design reduces bending and ensures that cables are protected from mud and dirt. The result is a bike that looks great and performs even better, making it an excellent choice for serious riders who demand the best.

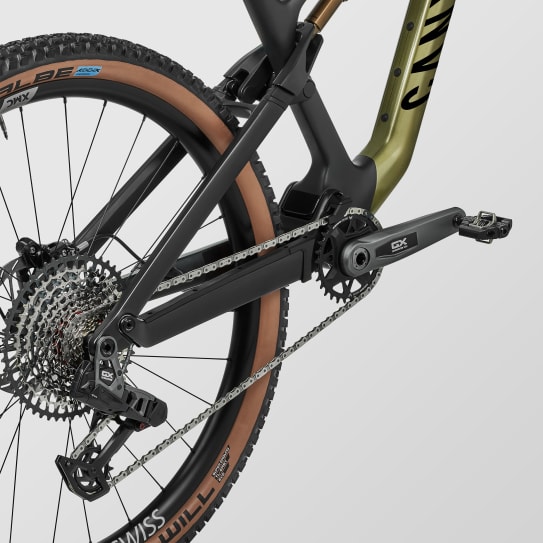

Integrated Chainstay Protection and Chain Guide

Built based on feedback from our pro mechanics, the innovative chainstay guard protects the rear triangle from damage while dampening chain slap through a special rubber compound. The chain guide keeps your chain locked in over tough terrain while both the guide and protector can be adjusted to work with 28-34T chainrings, so you can customize the bike to suit your riding style.

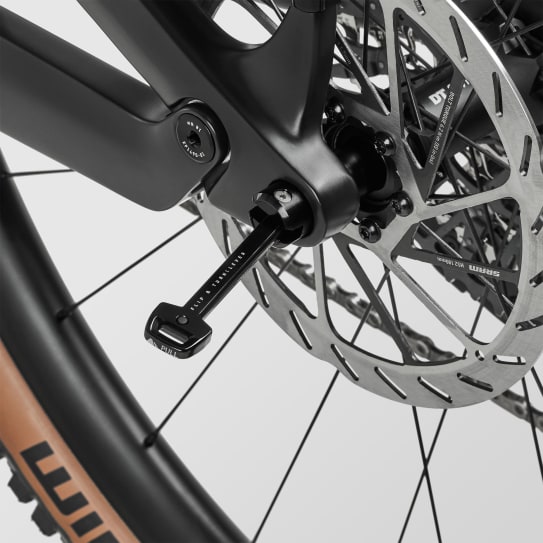

Quick-Release Through Axle

Unlike traditional through-axles, the Quixle through-axle used on the Neuron CF can be quickly and easily removed without tools, thanks to its clever quick-release design. The handle tucks away neatly for tool-free removal, making maintenance easy and hassle-free. Whether you're exploring new trails or pushing your limits on your favourite routes, the Neuron CF's quick-release through-axle gives you the confidence to take on any challenge.

Components

Content is loading

Frame

Frame
- Canyon Neuron
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 2,460 g
Rear Shock
- FOX Float DPS Factory

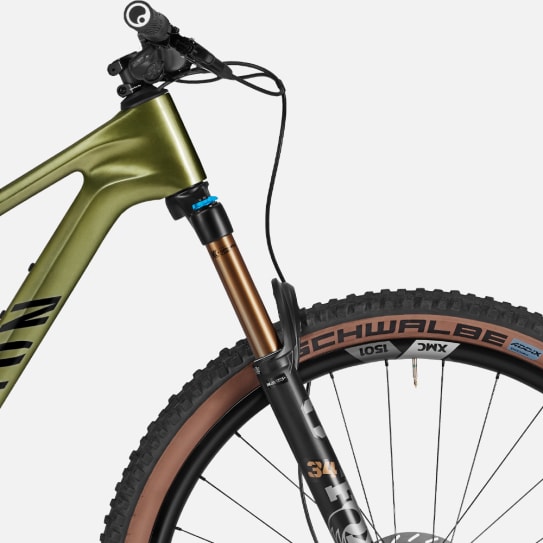

Suspension Fork
- FOX 34 Float Factory FIT4
- Axle dimension 15x110 mm
- Stanchion Diameter 34 mm
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Offset 44 mm
Seatpost Clamp
- Canyon SC0001

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight 462 g
Chainguard
- Canyon EP1538-01 Chain Guide
Shift Lever
- SRAM AXS Pod
- Weight 67 g
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets 12
- Range 10-52
Crank
- SRAM GX Eagle
- Number of chainrings 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard BSA 73
- Weight 78 g
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Code RSC
Disc Brake
- SRAM Code RSC
Brake Rotor
- SRAM HS2
- Size 180 mm
- Weight 171 g

Wheels

Front Wheel
- DT Swiss XMC 1501
- Axle dimension 15x110 mm
- Rotor mount IS 6-bolt
- Rim height 25 mm
- Inner width 30 mm
- Weight 864 g
Rear Wheel
- DT Swiss XMC 1501
- Axle dimension 12x148 mm
- Rotor mount IS 6-bolt
- Rim height 25 mm
- Inner width 30 mm
- Weight 940 g
Tyre
- Schwalbe Nobby Nic 29x2.4" bronze skin
- Width 2.4"
- Weight 876 g
Tyre
- Schwalbe Wicked Will 29x2.4" bronze skin
- Width 2.4"
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension 12x148 mm

Cockpit

Stem
- Race Face Turbine R
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
Handlebar
- Race Face Next 35
- Clamping diameter 35,0 mm
- Rise 20 mm
Grips
- Ergon GA20

Seat

Saddle
- Ergon SM10 Sport Men
- Gender Male
- Weight 316 g
Seatpost
- Canyon G5
- Seatpost diameter 30,9 mm
- Material Aluminium (AL)
- Weight 534 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	630 - 765	650 - 775	685 - 810	750 - 875	790 - 915
b Seat Tube Length in mm	390	390	425	460	500
c Top Tube Length in mm	556	579	611	639	674
d Head Tube Length in mm	90	100	110	125	143
e Head Tube Angle	66°	66°	66°	66°	66°
f Seat Tube Angle	76°	76°	76°	76°	76°
g Chainstay Length in mm	430	430	440	440	440
h Wheel Base in mm	1.139	1.164	1.203	1.234	1.271
i Stack in mm	587	596	626	639	656
j Reach in mm	410	430	455	480	510
k Stand-over Height in mm	756	759	777	783	790
l Bottom Bracket Offset in mm	18	18	38	38	38

Component geometry

Detailed geometry table
Frame size
Spacer in mm	15	15	15	15	15
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	150	170	170	200	200
Seat Post Length in mm	417	457	457	517	517
Maximum Seat Post Insertion Depth in mm	225	245	245	275	275
Minimum Seat Post Insertion Depth in mm	90	120	120	150	150
Wheel Size	27.5"	27.5"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Rear Suspension Travel in mm	130	130	130	130	130
Fitting Length	190X45	190X45	210X50	210X50	210X50
Rim height in mm	25	25	25	25	25

Download PDF

Press and awards

2024

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Content is loading

Neuron CF 9 SL support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
