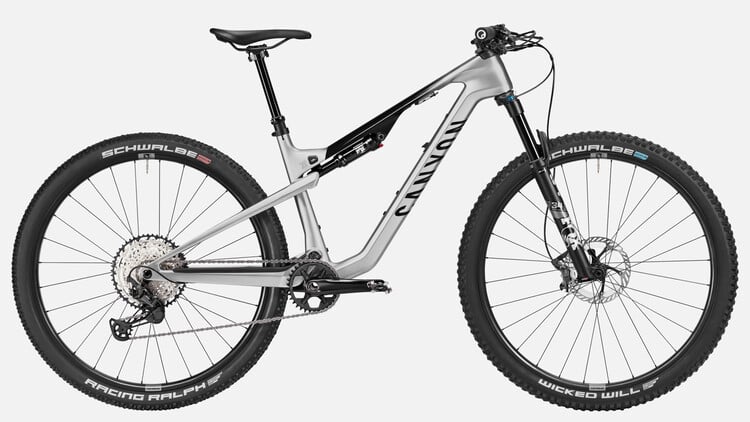

Lux Trail CF 8
-
New
With its long reach, flat steering angle, wide-rim wheels, and 120 mm of travel, this is an outstanding down-country bike that climbs quick and delivers plenty descending capability too.
-
Weight:
12.54 kg
WeightWeight is based on a size M frame.
- Material: Carbon (CF)
-
Colour: Chrome Level 1
-
Members only product. Log in here
Members only product.
Log in here
Sold out
Highlights Lux Trail CF 8
Pushing what's possible
Sometimes the greatest athletes race well beyond the tape. Adventure racers are a rare breed that live for the gruelling, the punishing, and the almost impossible. The Lux Trail was chosen by Neil Phillips on his attempt to claim the Lakeland 200 FKT, for its all day comfort, efficiency on the climbs and stability in the rough stuff.
Made for doing it all day long
Ride further into the unknown than ever before with a bike that's focused on all day performance. The brand new Lux Trail lets you create your own story with its incredibly efficient geometry that inspires fast lines and smashing climbs. Conquer demanding marathon rides and beat long-standing Strava records on the most capable 120 mm bike out there.
Frame
-
Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,060 g
-
Rear Shock
- FOX Float SL Performance Elite Remote
- Weight: 280 g
-

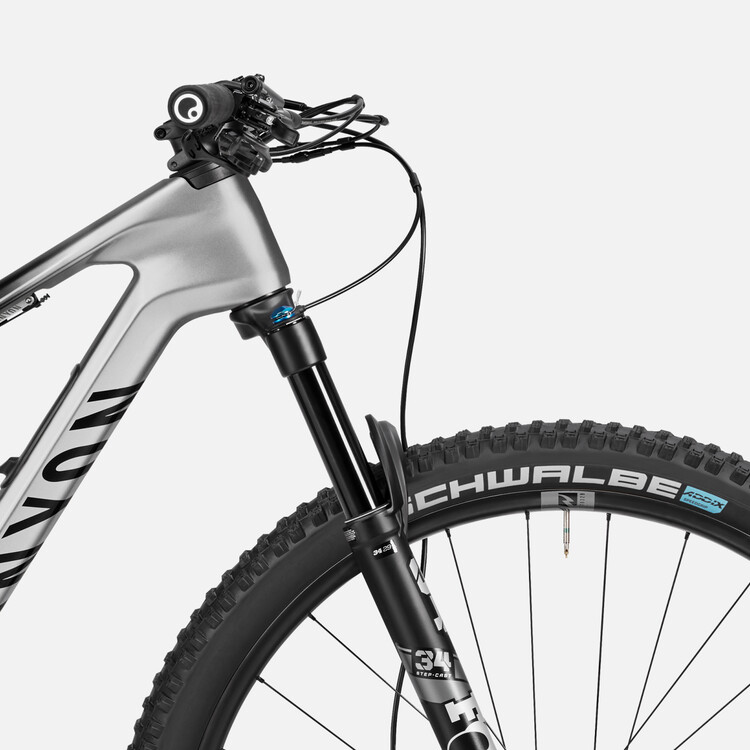

Suspension Fork
- FOX 34 Stepcast Performance Elite
- Axle dimension: 15x110 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 282 g
-
Shift Lever
- Shimano Deore XT SL-M8100
- Weight: 130 g
-
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano Deore XT FC-M8120
- Number of chainrings: 1
-
Bottom bracket
- Shimano MT800
- Bottom bracket standard: BSA 68/73
- Weight: 100 g
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano M8110
- Number of pistons: 2
-
Disc Brake
- Shimano Deore XT M8120
- Number of pistons: 2
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 180 mm
- Weight: 121 g
Wheels
-
Front Wheel
- Reynolds TR329c
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Rim material: Carbon
- Weight: 835 g
-
Rear Wheel
- Reynolds TR329c
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim material: Carbon
- Weight: 1,000 g
-
Tyre
- Schwalbe Racing Ralph SG TLE EVO 2.35"
- Width: 2.35"
- Weight: 750 g
-
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
- Weight: 818 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
-
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Rise: 10 mm
-
Grips
- Ergon GXR
Seat
-
Saddle
- Ergon SM10 Sport
- Gender: Male
- Weight: 305 g
-
Seatpost
- FOX Transfer SL Performance Elite
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 437 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- Smallbox
Content is loading
|
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
618 - 763 | 648 - 843 | 673 - 868 | 703 - 898 | 733 - 928 |
|
Seat Tube Length in mm
(b)
|
415 | 420 | 420 | 450 | 480 |
|
Top Tube Length in mm
(c)
|
559 | 585 | 609 | 633 | 656 |
|
Head Tube Length in mm
(d)
|
90 | 90 | 100 | 115 | 130 |
|
Head Tube Angle
(e)
|
67° | 67° | 67° | 67° | 67° |
|
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
|
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 | 435 |
|
Wheel Base in mm
(h)
|
1.129 | 1.155 | 1.180 | 1.206 | 1.232 |
|
Stack in mm
(i)
|
589 | 589 | 598 | 612 | 626 |
|
Reach in mm
(j)
|
412 | 438 | 460 | 480 | 500 |
|
Stand-over Height in mm
(k)
|
768 | 768 | 772 | 777 | 783 |
|
Bottom Bracket Offset in mm
(l)
|
38 | 38 | 38 | 38 | 38 |
|
Spacer in mm
|
10 | 10 | 10 | 10 | 10 |
|---|---|---|---|---|---|
|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
|
Handlebar Width in mm
|
760 | 760 | 760 | 760 | 760 |
|
Crank Length in mm
|
170,0 | 170,0 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
34 | 34 | 34 | 34 | 34 |
|
Seat Post Diameter in mm
|
31,6 | 31,6 | 31,6 | 31,6 | 31,6 |
|
Dropper post travel in mm
|
100 | 125 | 150 | 150 | 150 |
|
Seat Post Length in mm
|
380 | 455 | 480 | 480 | 480 |
|
Maximum Seat Post Insertion Depth in mm
|
225 | 275 | 275 | 275 | 275 |
|
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 |
|
Wheel Size
|
29" | 29" | 29" | 29" | 29" |
|
Disc Size in mm
|
180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 |
|
Front Fork Travel in mm
|
120 | 120 | 120 | 120 | 120 |
|
Rear Suspension Travel in mm
|
100 | 100 | 100 | 100 | 100 |
|
Fitting Length
|
210X50 | 210X50 | 210X50 | 210X50 | 210X50 |
Download PDF
Content is loading
Lux Trail CF 8 support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
