Lux CF 8
Smashing your top times, snatching KOMs, winning marathon races – with a modern full-carbon frame and fast, efficient acceleration, the Lux CF 8 can do it all.
- Colour: Race Black
-
Colour: Rapid Red
-
Members only product. Log in here
Select frame size
Sold out
Members only product.
Log in here
Sold out
Highlights Lux CF 8
No Dropped Chains
A dropped chain can mean a lost race, which is why we equip the Lux with the lightest chain guide available. Our minimalist guide helps keep your chain in place no matter how rough the course.
It Protects What Matters Most

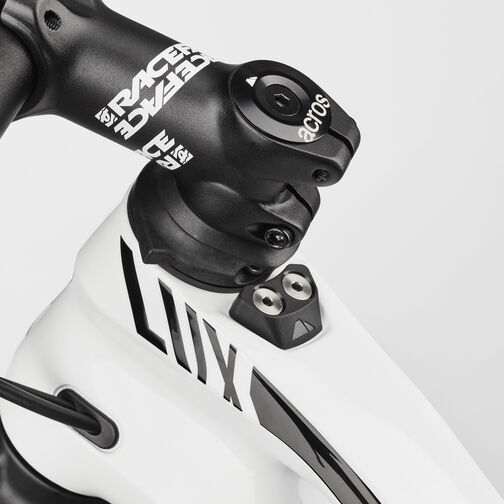

Think of it as frame insurance. Should you crash, the Lux’s integrated Impact Protection Unit prevents your handlebars from over rotating and striking your top tube.
Content is loading
Frame
-
Frame
- Canyon Lux CF SL
- For riders and racers alike the full suspension Lux is a light, strong and effortlessly fast XC bike. Whether you're riding between the tapes or on the trails, this is hard to beat.
- Material: Carbon
- Travel: 100 mm
- Axle Dimension: 12 x 148 mm
- Brake Mount: Flat Mount
-
Rear Shock
- RockShox SIDLuxe Select+ Remote
- Weight: 294 g
-
Suspension Fork
- RockShox SID Select+ Remote
- Travel: 110 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"
- Weight: 1,600 g
Drivetrain
-
Rear Derailleur
- SRAM X01 Eagle
- Cage length: long
- Weight: 289 g
-
Shift Lever
- SRAM X01 Eagle, 12-speed
- Weight: 129 g
-
Cassette
- SRAM XG-1295
- Number of sprockets: 12
- Range: 10-52 12S
-
Crank
- Truvativ Stylo Carbon DUB 34T
- Number of chainrings: 1
-
Bottom bracket
- SRAM Pressfit DUB
- Bottom bracket standard: PF 92
- Weight: 79 g
-
Chain
- SRAM GX Eagle 12s
Brakes
-
Disc Brake
- SRAM Level TLM
-
Disc Brake
- SRAM Level TLM
-
Brake Rotor
- SRAM Centerline Rounded
- Size: 160 mm
- Weight: 154 g
-
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 193 g
Wheels
-
Front Wheel
- Reynolds TR 309 C XC
- Rotor mount: Center Lock
- Weight: 1,300 g
-
Rear Wheel
- Reynolds TR 289 C XC
- Rotor mount: Center Lock
- Weight: 1,500 g
-
Tyre
- MAXXIS Aspen 2.25"
- Width: 2.25"
- Weight: 660 g
-
Thru Axle
- Canyon GP0415-04 Thru Axle 148X12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Race Face Ride
- Size XS and S bikes are specced with Iridium stems.
- Fork steer tube diameter: 1 1/8"
-
Handlebar
- Race Face Ride Rise
- Clamping diameter: 31,8 mm
- Width: 740 mm
-
Grips
- Ergon GA20
Seat
-
Saddle
- Selle Italia SLR Boost
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 195 g
-
Seatpost
- DT Swiss D 232
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 10 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Content is loading
Content is loading
|
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
|---|---|---|---|---|
|
Seat Height in mm
(a)
|
683 - 783 | 723 - 823 | 763 - 863 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
425 | 465 | 505 | 545 |
|
Top Tube Length in mm
(c)
|
574 | 600 | 624 | 651 |
|
Head Tube Length in mm
(d)
|
90 | 100 | 115 | 140 |
|
Head Tube Angle
(e)
|
69,5° | 69,5° | 69,5° | 69,5° |
|
Seat Tube Angle
(f)
|
74° | 74° | 74° | 74° |
|
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 |
|
Wheel Base in mm
(h)
|
1.107 | 1.129 | 1.154 | 1.183 |
|
Stack in mm
(i)
|
585 | 595 | 609 | 632 |
|
Reach in mm
(j)
|
410 | 430 | 450 | 470 |
|
Stand-over Height in mm
(k)
|
791 | 794 | 801 | 816 |
|
Bottom Bracket Offset in mm
(l)
|
34 | 34 | 34 | 35 |
|
Spacer in mm
|
5,0 | 10,0 | 15,0 | 20,0 |
|---|---|---|---|---|
|
Stem Length in mm
|
80 | 80 | 80 | 80 |
|
Handlebar Width in mm
|
740 | 740 | 740 | 740 |
|
Crank Length in mm
|
170,0 | 175,0 | 175,0 | 175,0 |
|
Chainring Size
|
34 | 34 | 34 | 34 |
|
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
|
Dropper post travel in mm
|
60 | 60 | 60 | 60 |
|
Seat Post Length in mm
|
400 | 400 | 400 | 400 |
|
Maximum Seat Post Insertion Depth in mm
|
190 | 190 | 190 | 190 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 90 |
|
Wheel Size
|
29" | 29" | 29" | 29" |
|
Disc Size in mm
|
180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 |
|
Front Fork Travel in mm
|
110 | 110 | 110 | 110 |
|
Rear Suspension Travel in mm
|
100 | 100 | 100 | 100 |
|
Fitting Length
|
210X50 | 210X50 | 210X50 | 210X50 |
Download PDF
Content is loading
Lux CF 8 support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
