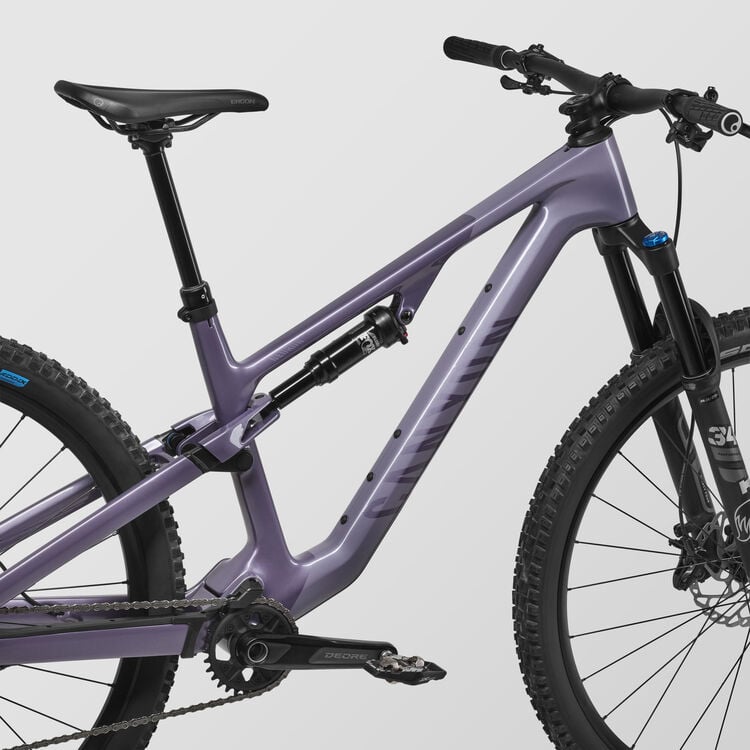

Neuron CF 7
Adventure lightly with the sleek carbon frame of the Neuron CF 7. The all-day geometry makes it feel at home on long, off-road climbs and sweeping descents.
-
Weight:
14.04 kg
WeightWeight is based on a size M frame.
- Material: Carbon (CF)
-
Colour: Pale Lavender
-
Members only product. Log in here
Members only product.
Log in here
Sold out
Highlights Neuron CF 7
Everyday escapes
Define your own adventure with an all-rounder that was built to escape. Choose balanced geometry, efficient performance, and a durable frame.
A Welsh epic
See how Vedangi Kulkarni plotted her adventure across North Wales on singletrack trails and gravel paths with her Neuron. Learn more
Frame
-
Frame
- Canyon Neuron
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,460 g
-
Rear Shock
- FOX Float Rhythm
-
Suspension Fork
- Fox 34 Performance
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Weight: 1,680 g
Drivetrain
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Chainguard
- Canyon EP1538-01 Chain Guide
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano Deore FC-M6120
- Number of chainrings: 1
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano Deore BR-M6120
-
Disc Brake
- Shimano Deore BR-M6120
-
Brake Rotor
- Shimano RT66 180
- Size: 180 mm
- Weight: 140 g
Wheels
-
Front Wheel
- DT Swiss M1900
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 960 g
-
Rear Wheel
- DT Swiss M1900
- Rotor mount: IS 6-bolt
- Rim material: Aluminium
- Weight: 1,120 g
-
Tyre
- Schwalbe Nobby Nic
- Width: 2.4"
- Weight: 836 g
-
Tyre
- Schwalbe Wicked Will
- Width: 2.4"
- Weight: 890 g
-

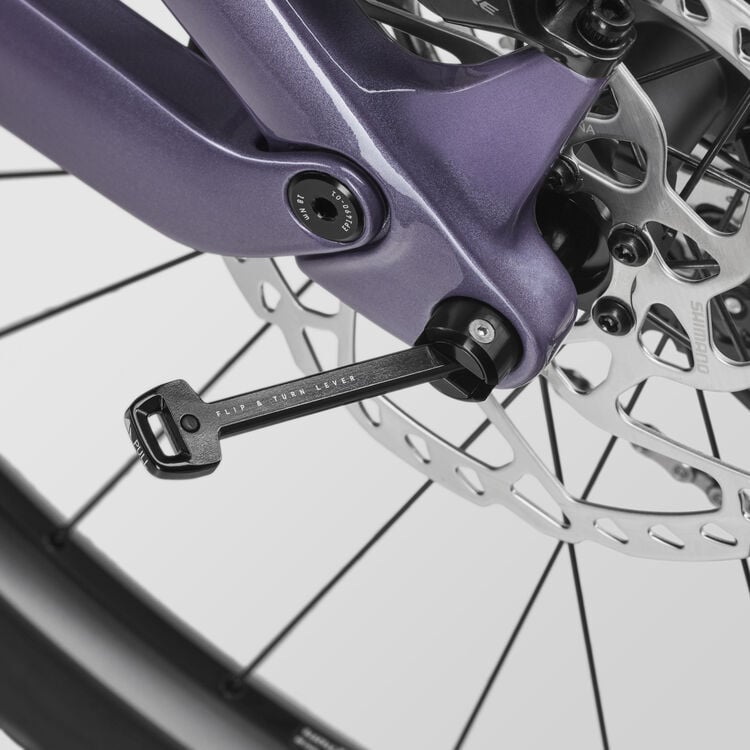

Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

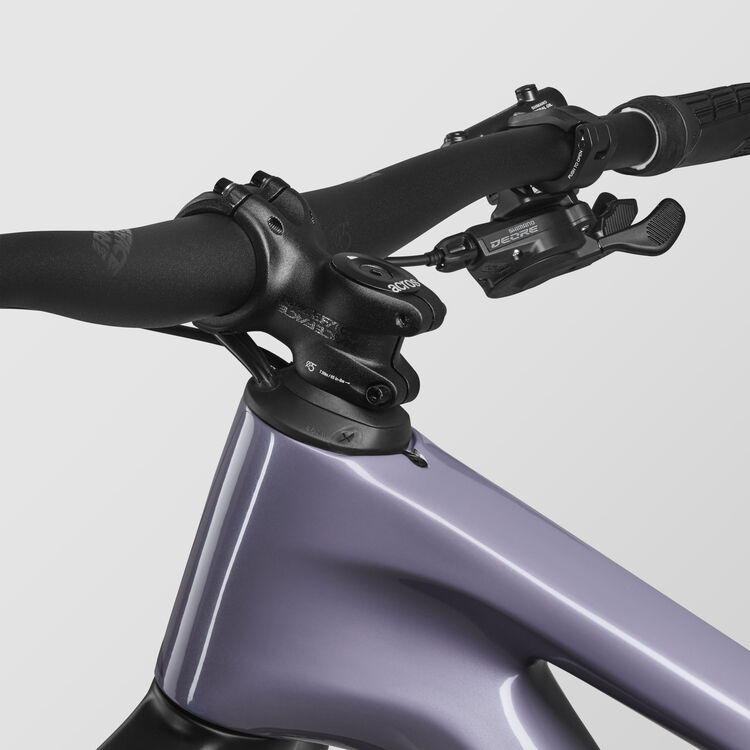

Cockpit
-
Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
-
Handlebar
- RaceFace Ride 35
- Clamping diameter: 35,0 mm
- Rise: 20 mm
-
Grips
- Ergon GE10 Evo Slim
Seat
-
Saddle
- Ergon SM10 Enduro
- Gender: Unisex
- Weight: 314 g
-
Seatpost
- Canyon SP0081
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 622 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- QSG 001-V02 MTB generic
-
Manuals and Accessories
- Quickstart Guide Neuron CF
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- Smallbox
Content is loading
|
Body Height in cm
|
≤ 168 | 163 - 177 | 172 - 185 | 180 - 194 | ≥ 189 |
|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
612 - 766 | 637 - 816 | 692 - 891 | 727 - 926 | 767 - 966 |
|
Seat Tube Length in mm
(b)
|
390 | 390 | 425 | 460 | 500 |
|
Top Tube Length in mm
(c)
|
556 | 579 | 611 | 639 | 674 |
|
Head Tube Length in mm
(d)
|
90 | 100 | 110 | 125 | 143 |
|
Head Tube Angle
(e)
|
66° | 66° | 66° | 66° | 66° |
|
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
|
Chainstay Length in mm
(g)
|
430 | 430 | 440 | 440 | 440 |
|
Wheel Base in mm
(h)
|
1.139 | 1.164 | 1.203 | 1.234 | 1.271 |
|
Stack in mm
(i)
|
587 | 596 | 626 | 639 | 656 |
|
Reach in mm
(j)
|
410 | 430 | 455 | 480 | 510 |
|
Stand-over Height in mm
(k)
|
756 | 759 | 777 | 783 | 790 |
|
Bottom Bracket Offset in mm
(l)
|
18 | 18 | 38 | 38 | 38 |
|
Spacer in mm
|
15 | 15 | 15 | 15 | 15 |
|---|---|---|---|---|---|
|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
|
Handlebar Width in mm
|
740 | 740 | 760 | 760 | 760 |
|
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 170,0 | 170,0 |
|
Chainring Size
|
30 | 30 | 30 | 30 | 30 |
|
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 | 30,9 |
|
Dropper post travel in mm
|
125 | 150 | 170 | 170 | 170 |
|
Seat Post Length in mm
|
408 | 458 | 498 | 498 | 498 |
|
Maximum Seat Post Insertion Depth in mm
|
234 | 259 | 279 | 279 | 279 |
|
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 |
|
Wheel Size
|
27.5" | 27.5" | 29" | 29" | 29" |
|
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
|
Front Fork Travel in mm
|
140 | 140 | 140 | 140 | 140 |
|
Rear Suspension Travel in mm
|
130 | 130 | 130 | 130 | 130 |
|
Fitting Length
|
190X45 | 190X45 | 210X50 | 210X50 | 210X50 |
Download PDF
-
2024Bike Of The YearThe Neuron is rightly a real all-time favorite.Bike Of The YearThe Neuron is rightly a real all-time favorite.
Content is loading
Neuron CF 7 support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
