Spectral 5
Fun doesn’t need to be complicated. Spectral AL is our ultimate trail bike made metal. Award winning handling and grin inducing capability. Equipped and engineered to deliver high fives and hollas everywhere. Tough enough for big days and hard landings. No faff, no distraction, just everything you need and nothing you don’t.
-
Weight:
15.8 kg
WeightWeight is based on a size medium frame.
- Material: Aluminium (AL)
-
-
Members only product. Log in here
Select your model
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).
Members only product.
Log in here
Sold out
Wear level
Visual imperfections
Bikes and framesets in this category are unridden new bikes that may have minimal colour deviations, scratches or damage to paintwork.
These images show model #0001108764
Highlights Spectral 5
Do-it-all DNA
The Spectral family of bikes are designed to get the most out of every trail, and bring the best out of every rider. Super versatile, sweet handling, surefooted and efficient, this next-gen trail bike stacks new features on top of tried and true technology to deliver boundary breaking performance. The new Spectral AL carries all these legendary, award-winning hallmarks over into a tough, dependable, value packed aluminium grin machine.
Shaped to shred
All the bells and none of the whistles, or creaks, or rattles. The Spectral AL is built to deliver all the Spectral trademark trail ripping awesomeness in a no-nonsense, no-frills, abuse tolerant package. Riders who live for the ride and live by the phrase “rode it hard and put it away wet” are going to love this bike.
Frame
-
Frame
- Canyon Spectral
- Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4.
- Material: Aluminium (AL)
- Weight: 3,147 g
-
Rear Shock
- RockShox Deluxe Select+
- Weight: 384 g
-

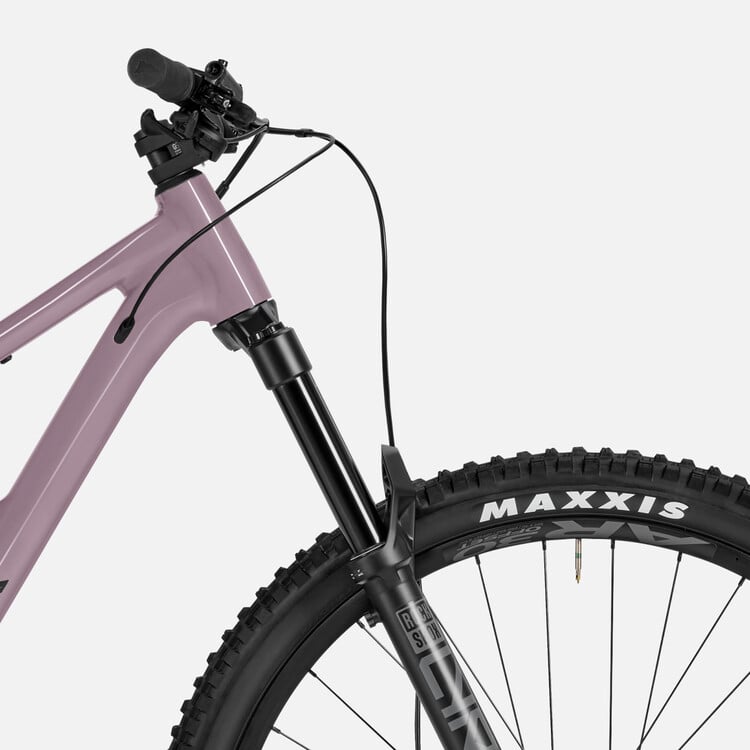

Suspension Fork
- RockShox Lyrik
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Weight: 2,051 g
Drivetrain
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano MT512
- Number of chainrings: 1
-
Bottom bracket
- Token TK878EX
- Bottom bracket standard: BSA 68/73
- Weight: 98 g
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- Shimano Deore M6120
- Number of pistons: 4
-
Disc Brake
- Shimano Deore M6120
-
Brake Rotor
- Hayes D-Series
- Size: 180 mm
- Weight: 149 g
-
Brake Rotor
- Hayes D-Series
- Size: 203 mm
- Weight: 188 g
Wheels
-
Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,200 g
-
Rear Wheel
- RaceFace AR30 | Shimano MT410
- Rotor mount: Center Lock
- Weight: 993 g
-
Tyre
- Maxxis Minion DHR II Exo
- Width: 2,4"
- Weight: 1,035 g
-
Tyre
- Maxxis Minion DHR II Exo+
- Width: 2.4"
- Weight: 1,000 g
-
Thru Axle
- Canyon GP0255-01
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Rise: 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- Ergon SM10 Enduro
- Gender: Unisex
- Weight: 314 g
-
Seatpost
- Canyon SP0081
- Seatpost diameter: 34,9 mm
- Material: Aluminium (AL)
- Weight: 700 g
-
Seat Clamp
- Canyon GP0446-01
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- BAND 004-V01 BIKE CATEGORY 4
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Content is loading
Body Height in cm
|
≤ 168 | 163 - 177 | 172 - 185 | 180 - 194 | ≥ 189 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
622 - 801 | 641 - 840 | 686 - 895 | 716 - 925 | 756 - 945 |
Seat Tube Length in mm
(b)
|
375 | 400 | 415 | 445 | 455 |
Top Tube Length in mm
(c)
|
572 | 599 | 626 | 653 | 680 |
Head Tube Length in mm
(d)
|
100 | 110 | 120 | 130 | 140 |
Head Tube Angle
(e)
|
64° | 64° | 64° | 64° | 64° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
437 | 437 | 437 | 437 | 437 |
Wheel Base in mm
(h)
|
1.192 | 1.221 | 1.251 | 1.280 | 1.309 |
Stack in mm
(i)
|
612 | 621 | 630 | 639 | 648 |
Reach in mm
(j)
|
425 | 450 | 475 | 500 | 525 |
Stand-over Height in mm
(k)
|
744 | 749 | 757 | 761 | 762 |
Bottom Bracket Offset in mm
(l)
|
36 | 36 | 36 | 36 | 36 |
Spacer in mm
|
30 | 30 | 30 | 30 | 30 |
---|---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 760 | 780 | 780 | 780 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
34,9 | 34,9 | 34,9 | 34,9 | 34,9 |
Dropper post travel in mm
|
150 | 170 | 200 | 200 | 230 |
Seat Post Length in mm
|
458 | 472 | 532 | 532 | 592 |
Maximum Seat Post Insertion Depth in mm
|
259 | 279 | 309 | 309 | 339 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 100 | 100 | 150 |
Wheel Size
| Mullet
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Wheel Size
| 29"
|
29" | 29" | 29" | 29" | |
Disc Size in mm
|
203 / 180 | 203 / 180 | 203 / 180 | 203 / 180 | 203 / 180 |
Front Fork Travel in mm
|
150 | 150 | 150 | 150 | 150 |
Rear Suspension Travel in mm
|
140 | 140 | 140 | 140 | 140 |
Fitting Length
|
230X57.5 | 230X57.5 | 230X57.5 | 230X57.5 | 230X57.5 |
Download PDF
Content is loading
Spectral 5 support
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
