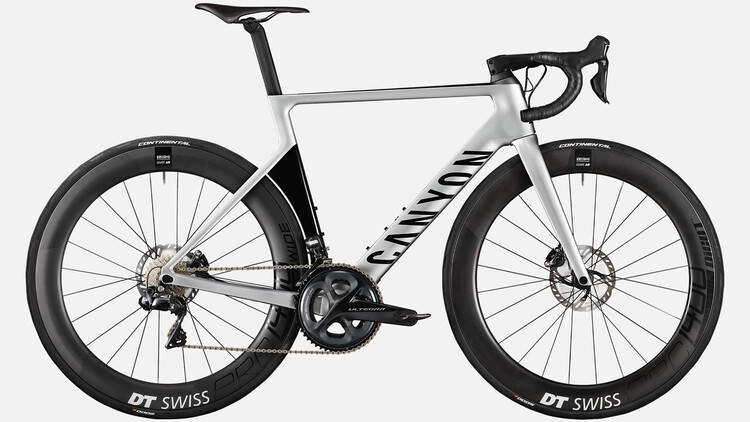

Aeroad CF SL Disc 8.0 Di2
Leading the line in our Aeroad CF SL Disc range, this model comes complete with a full Shimano Ultegra Di2 disc groupset with a sleek hood design disguising next-level control and electronic shift performance.
- Colour: Stealth
-
- Colour: blue fade
-
Members only product. Log in here
Select frame size
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Members only product.
Log in here
Sold out
Highlights Aeroad CF SL Disc 8.0 Di2
Content is loading
Frame
-
Frame
- Canyon Aeroad CF SL Disc
- Material: Carbon
- Axle Dimension: 12 x 142 mm
- Brake Mount: Flat Mount
-
Fork
- Canyon FK0041 CF SLX Disc
- Fork steer tube diameter: 1 1/4"
- Material: Carbon (CF)
- Weight: 362 g
Drivetrain
-
Battery
- Shimano BT-DN110 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2 R8050 SS
- Cage length: short
- Weight: 10 g
-
Front Derailleur
- Shimano Ultegra Di2 R8050
- Weight: 132 g
-
Cassette
- Shimano Ultegra R8000, 11-speed, 11-28T
- Number of sprockets: 11
-
Crank
- Shimano Ultegra R8000
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano HG701 11-speed
- High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8070, 11-speed
- Weight: 10 g
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8070, 11-speed
- Weight: 10 g
-
Brake Rotor
- Shimano RT800
- Size: 160 mm
- Weight: 120 g
Wheels
-
Front Wheel
- DT Swiss ARC 1400 Dicut
- Rotor mount: Center Lock
-
Rear Wheel
- DT Swiss ARC 1400 Dicut
- Rotor mount: Center Lock
- Rim height: 62 mm
- Weight: 750 g
-
Tyre
- Continental Grand Prix 5000 / Attack 23 mm
- Width: 23 mm
- Weight: 210 g
-
Tyre
- Continental Grand Prix 5000, 25 mm
- Width: 25 mm
- Weight: 220 g
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon Thru Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit

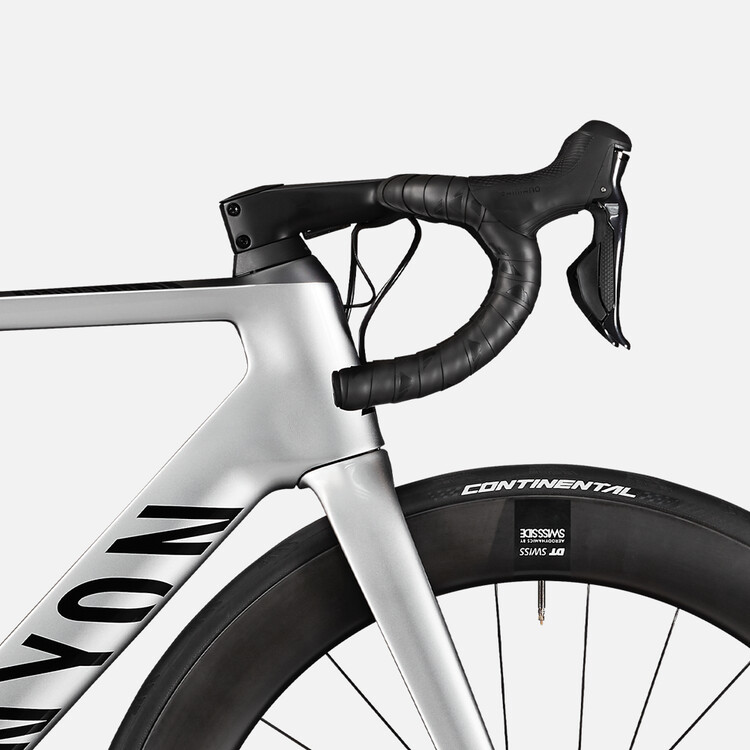

- Canyon H36 Aerocockpit CF
- A one-piece cockpit with top-end aerodynamics, semi-integrated cable routing, and premium ergonomics for comfort and precise handling.
- Material: Carbon
- Shape: Ergo
- Reach: 74 mm
- Drop: 130 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia SLR Kit Carbonio Boost Superflow
-
Seatpost
- Canyon S27 Aero VCLS Seatpost
- Material: Carbon
- Setback: -1 mm / 15 mm
- Technology: VCLS | Fliphead
-
Seat Clamp
- Canyon S27 Aero VCLS CF
-
Seat Clamp
- Canyon E230 Adapter for S27/S28 Seatpost
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- DT Swiss warranty & intended use manual
-
Manuals and Accessories
- Canyon Starter Box
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Endurace Quick Start Guide
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
663 - 763 | 682 - 782 | 701 - 801 | 724 - 824 | 744 - 844 | 761 - 861 | 780 - 880 |
Seat Tube Length in mm
(b)
|
470 | 489 | 508 | 531 | 551 | 568 | 587 |
Top Tube Length in mm
(c)
|
509 | 527 | 549 | 560 | 572 | 592 | 604 |
Head Tube Length in mm
(d)
|
100 | 110 | 130 | 146 | 167 | 190 | 210 |
Head Tube Angle
(e)
|
69,5° | 71,2° | 72,75° | 73,25° | 73,25° | 73,25° | 73,25° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
415 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
975 | 978 | 987 | 994 | 1.006 | 1.026 | 1.038 |
Stack in mm
(i)
|
494 | 509 | 533 | 550 | 570 | 592 | 612 |
Reach in mm
(j)
|
363 | 376 | 391 | 397 | 403 | 417 | 423 |
Stand-over Height in mm
(k)
|
740 | 758 | 781 | 798 | 818 | 840 | 861 |
Bottom Bracket Offset in mm
(l)
|
70 | 70 | 70 | 70 | 70 | 70 | 70 |
Stack+ in mm
|
589 | 602 | 625 | 643 | 665 | 687 | 708 |
Reach+ in mm
|
428 | 443 | 460 | 477 | 493 | 506 | 522 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
90-390 | 90-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-430 |
Crank Length in mm
|
165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Length in mm
|
325 | 325 | 325 | 325 | 325 | 325 | 325 |
Maximum Seat Post Insertion Depth in mm
|
180 | 180 | 180 | 180 | 180 | 180 | 180 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
